Bently Nevada 133819-02 3500/61 Temperature Monitor I/O Module

Parameter Specification
Manufacturer Bently Nevada
Order number 133819-02
Associated monitor Bently Nevada 3500/61 Temperature Monitor
Product type RTD/TC non-isolated temperature I/O module
Termination arrangement Internal terminations
Input types RTD and thermocouple
Input configuration Accepts RTD inputs, TC inputs, or a mixture of RTD and TC inputs
Monitor channels Six temperature-monitoring channels
Monitor outputs One 4–20 mA recorder output per channel
Configuration tool 3500 Rack Configuration Software
System family Bently Nevada 3500 Machinery Protection System
Categories: , , , , SKU: Bently Nevada 133819-02 Brand:

Description

Core Product Summary

The Bently Nevada 133819-02 is the RTD/TC non-isolated I/O module with internal terminations for the Bently Nevada 3500/61 Temperature Monitor. It forms the field-signal interface of the 3500/61 six-channel temperature-monitoring assembly within the 3500 Machinery Protection System.

The module accepts resistance temperature detector (RTD) and thermocouple (TC) inputs and provides the physical terminations for the associated temperature monitor. The 3500/61 conditions these signals, compares them with user-programmable alarm setpoints, and provides a 4–20 mA recorder output for each of its six channels. This I/O module is intended for use with the matching 3500/61 monitor module and 3500 rack configuration software.



Key Technical Specifications

Parameter Specification
Manufacturer Bently Nevada
Order number 133819-02
Associated monitor Bently Nevada 3500/61 Temperature Monitor
Product type RTD/TC non-isolated temperature I/O module
Termination arrangement Internal terminations
Input types RTD and thermocouple
Input configuration Accepts RTD inputs, TC inputs, or a mixture of RTD and TC inputs
Monitor channels Six temperature-monitoring channels
Monitor outputs One 4–20 mA recorder output per channel
Configuration tool 3500 Rack Configuration Software
System family Bently Nevada 3500 Machinery Protection System



Engineering Selection Highlights

  • Order number 133819-02 identifies the internal-termination, non-isolated RTD/TC I/O option → use it when field temperature sensor wiring terminates directly at the I/O module rather than through an external termination assembly.
  • It supports both RTD and thermocouple inputs → it suits applications where the six monitored points may use either sensor type or a combination of both.
  • It belongs to the 3500/61, not the 3500/60, monitor family → the 3500/61 provides a 4–20 mA recorder output for each of its six channels, while the 3500/60 does not.
  • The module is non-isolated → select the appropriate isolated or barrier I/O variant instead when the installation requires isolated thermocouple inputs or internal barriers.
  • Configuration is performed through 3500 Rack Configuration Software → the monitor’s input type, measurement ranges, and alarm setpoints must be configured in the 3500 system software.
  • It is part of a monitor-and-I/O assembly → procurement and installation planning should include the matching 3500/61 temperature monitor module as well as the I/O module.



System Compatibility & Integration Requirements

Item / Dependency Verified Compatibility or Requirement Practical Note
Monitor module Bently Nevada 3500/61 Temperature Monitor The 133819-02 is the RTD/TC non-isolated, internal-termination I/O module for this monitor.
System platform Bently Nevada 3500 Machinery Protection System The I/O module interfaces field temperature sensors to the 3500/61 monitor.
Sensor inputs RTD and thermocouple inputs The non-isolated RTD/TC version can be configured for RTD only, TC only, or a mixture of both.
Software 3500 Rack Configuration Software Used to configure the monitor for RTD or TC temperature measurement and alarm setpoints.
Recorder outputs Six 4–20 mA recorder outputs from the 3500/61 Each monitored temperature channel has an associated recorder output.
Alarm logic 3500 relay modules Conditioned temperature signals are compared with user-programmable setpoints that can drive alarms and relay logic.



Dimensions, Mounting & Connection Notes

The 133819-02 uses internal terminations, so field RTD and thermocouple conductors connect directly at the I/O module. It is installed as the I/O module associated with a 3500/61 Temperature Monitor in the Bently Nevada 3500 rack system.

For a TMR configuration, the applicable temperature monitors must be installed adjacent to one another in groups of three. Exact wiring assignments, terminal locations, and rack-installation requirements should be taken from the applicable 3500/61 installation documentation and the project’s approved wiring design.

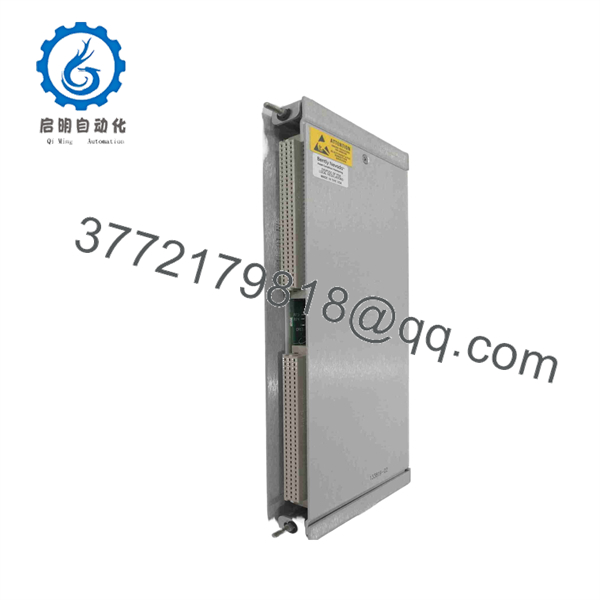

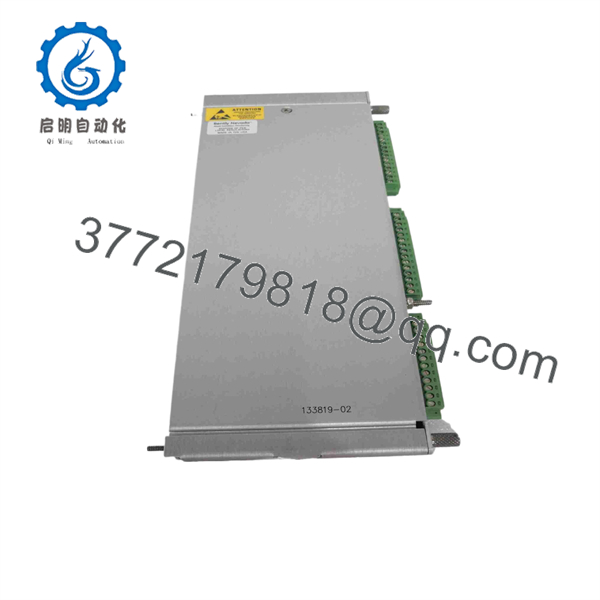

133819-02

133819-02

133819-02

133819-02

Detailed Product Overview

The Bently Nevada 133819-02 is a model-specific I/O module for the 3500/61 RTD/TC Temperature Monitor. Its role is to bring RTD and thermocouple field signals into the 3500/61 monitor through internal terminations. The associated monitor conditions the incoming signals and evaluates them against alarm setpoints configured in the 3500 Rack Configuration Software.

The 3500/61 provides six temperature-monitoring channels. Unlike the 3500/60, it also provides a 4–20 mA recorder output for each channel, allowing the measured temperature values to be passed onward for recording or further system integration. The I/O module itself is the non-isolated RTD/TC version with internal terminations; it can be configured for RTD inputs, thermocouple inputs, or a combination of the two.

This distinction matters during replacement or system build-up. The 133819-02 should be matched to a 3500/61 monitor and to an installation that uses direct internal field terminations. Other 3500/61 I/O options provide external terminations, isolated thermocouple inputs, or internal barriers, so the order number determines both the termination method and the electrical isolation arrangement.

In a triple modular redundant configuration, the temperature monitors must be installed adjacent to one another in groups of three. The system applies voting across the redundant monitors to support continued protection operation. The 133819-02’s function in that architecture remains the same: it terminates and interfaces the field temperature sensors used by the associated 3500/61 monitor.



Applications & System Role

Within a 3500 Machinery Protection System, the 133819-02 provides the input interface between plant temperature sensors and the 3500/61 Temperature Monitor. The monitor processes up to six RTD or thermocouple signals and compares each measured value with user-programmable alarm setpoints.

The 3500/61 is used for temperature and temperature-differential monitoring, including radial and thrust bearing metal temperature in accordance with API 670. It can also monitor process temperatures such as compressor suction and discharge temperature, steam temperature, and motor stator temperature. The 133819-02 therefore serves as the direct sensor-termination interface for these monitoring functions.



FAQ

What is the Bently Nevada 133819-02?
It is the RTD/TC non-isolated I/O module with internal terminations for the Bently Nevada 3500/61 Temperature Monitor.

Which system does it belong to?
It belongs to the Bently Nevada 3500 Machinery Protection System and is specifically associated with the 3500/61 temperature-monitoring assembly.

What sensor types does it accept?
It accepts RTD and thermocouple inputs. The non-isolated RTD/TC version can be configured for RTD only, thermocouple only, or a mixture of both.

How many temperature channels does the associated monitor provide?
The 3500/61 Temperature Monitor provides six temperature-monitoring channels.

Does the 3500/61 provide recorder outputs?
Yes. The 3500/61 provides a 4–20 mA recorder output for each of its six channels.

What is the difference between 133819-02 and other 3500/61 I/O modules?
The 133819-02 is the RTD/TC non-isolated I/O module with internal terminations. Other options provide external terminations, isolated thermocouple inputs, or internal barriers.

What software is used to configure the system?
The 3500 Rack Configuration Software is used to configure the monitor for RTD or thermocouple measurement and to set alarm setpoints.

Can it be used in a TMR configuration?
Yes. In a TMR configuration, the applicable temperature monitors must be installed adjacent to one another in groups of three.
