Key Technical Specifications
| Parameter | Specification |
| Part Number | 135489-01 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Associated Front Module | 3500/42M Proximitor / Seismic Monitor |
| Channel Count | 4 channels (Prox, Accel, or Velocity Transducers) |
| Termination Type | Internal Terminations with integrated galvanically isolated safety barriers |
| Input Signals | Proximitor probes, Accelerometers, Velocity transducers |
| System Slot Position | Rear full-height slot (directly behind 3500/42M main card) |
| Power Consumption | 7.7 W typical (supplied via main 3500 backplane) |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.5 in × 0.96 in × 6.42 in) |
| Weight | 0.46 kg (1.01 lb) |
| Operating Temperature | −30°C to +65°C (−22°F to +149°F) |
Product Introduction & Supply Chain Strategy
The Bently Nevada 135489-01 is a 4-channel rear I/O module equipped with internal galvanically isolated barriers, designed specifically for the 3500/42M Proximitor/Seismic Monitor. It provides field wiring connection points and hazardous-area energy limiting directly within the 3500 rack structure, routing proximity probe, acceleration, and velocity signals into the main processing hardware.
Buying this module as New Surplus ensures critical sensor protection loop integrity, avoiding the hidden trace corrosion and weakened isolation components typical in second-hand units. Maintaining 1–2 New Surplus units in plant buffer stock safeguards against extended vendor lead times and eliminates emergency shutdown costs on critical rotating machinery.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Perform Lock-Out/Tag-Out (LOTO) procedures on the machine protection trip loops and incoming field sensor cables.
- Put on a grounded anti-static wrist strap connected directly to the 3500 rack earth ground.
- Mark and photograph all field transducer wiring connections (+V, Sig, Com) on the rear Euro-style terminal blocks.
Stage 2: Removal
- Loosen the top and bottom captive thumbscrews on the existing rear 135489-01 card using a flathead screwdriver.
- Slide the module straight out along the card guide rails. Do not rock or twist the module to protect the backplane pins from bending.
Stage 3: Installation (Clone & Seat)
- Inspect the new 135489-01 card edge connectors and barrier components for zero physical defects.
- Align the module with the guide rails in the designated rear slot directly behind the corresponding 3500/42M monitor card.
- Push firmly until the card seats completely into the rack backplane, then hand-tighten the mounting thumbscrews.
Stage 4: Power-On & Testing
- Reconnect field wiring to the terminal blocks according to the previously verified schematic.
- Apply power to the 3500 rack and check the front 3500/42M monitor status LEDs for a solid green “OK” indication.
- Verify transducer DC bias voltages at the front coaxial buffer ports to confirm proper barrier operation and signal flow.

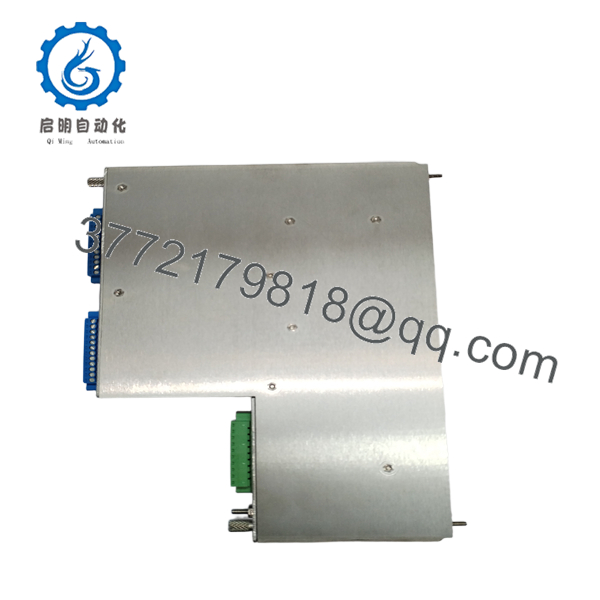

- 135489-01

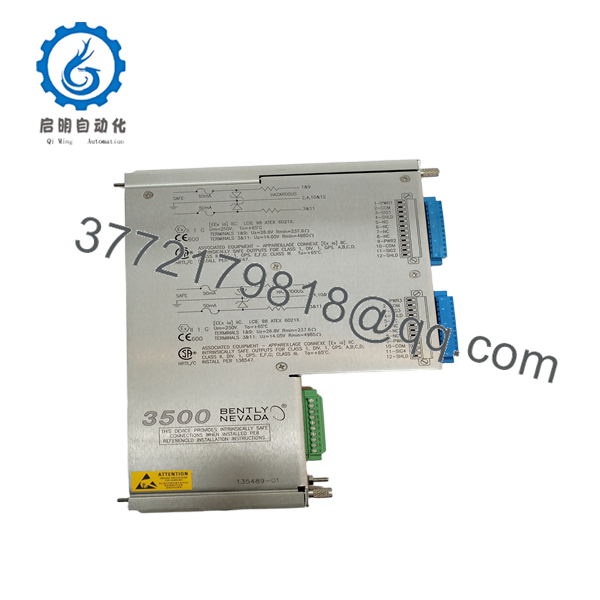

- 135489-01
Firmware/Software Versions & Upgrade Notes
- Firmware Dependency: The 135489-01 is an analog/barrier interface card with no programmable microprocessors or flash firmware.
- System Configuration: Software channel parameters (sensor type, scale factor, and barrier selection) are configured in the front 3500/42M module via the Bently Nevada 3500 System Configuration Software.
- Barrier Matching: Ensure the 3500 software channel configuration explicitly reflects an “Internal Barrier” setting. Mismatching software channel configurations with physical barrier hardware will lead to invalid sensor gap voltages and channel “Not OK” faults.
Frequently Asked Questions (FAQ)
Is this unit a genuine New Surplus module or a refurbished part?
This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.
Why choose New Surplus over lower-cost refurbished barrier modules?
Internal barrier cards contain precision isolation components that protect hazardous field areas. Refurbished or used cards carry hidden thermal degradation risks that can lead to drift, incorrect vibration readings, or false machine trips. New Surplus guarantees factory-grade safety margins and 100% operational life expectancy.
Can I use the 135489-01 with standard Non-Barrier 3500/42M setups?
No, the 135489-01 is specifically designed for applications requiring internal intrinsic safety barriers. Standard non-barrier applications use discrete I/O modules (such as 128229-01 or 125800-01). You must match the hardware module type to your field wiring environment and software configuration.
Can I hot-swap this rear I/O module while the 3500 rack is powered?
While the 3500 rack supports hot-swapping under proper procedures, removing a rear I/O card will instantly disrupt sensor inputs to the front 3500/42M module, causing channel “Not OK” status and potentially triggering automated trip logic. Always bypass associated machine protection channels prior to removing any I/O card.
What warranty terms apply to this 135489-01 module?
Every New Surplus 135489-01 module includes a full 1-year functional warranty. Ships fully tested in anti-static protective packaging with complete quality control verification paperwork.
