Bently Nevada 3500/25-01-01-00 Keyphasor Module In Stock Ready

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Bently Nevada 3500/25-01-01-00 Dual Channel Keyphasor Module processes phase-reference signals from proximity sensors or magnetic pickups to track rotational speed and vector phase angles across critical rotating equipment. Turbines, compressors, and large industrial pumps rely on this data for dynamic balancing, vibration analysis, and automated trip logic.

Stocking this item as New Surplus offers a clear Total Cost of Ownership (TCO) advantage. Purchasing genuine New Surplus avoids OEM extended lead times while eliminating the high failure rates associated with second-hand cards. Refurbished vibration hardware frequently suffers from degraded input capacitors and cracked solder joints that cause spurious speed trips. Securing factory-fresh surplus guarantees OEM performance, protects your maintenance budget, and eliminates unscheduled downtime on high-value turbomachinery.

3500/25-01-01-00

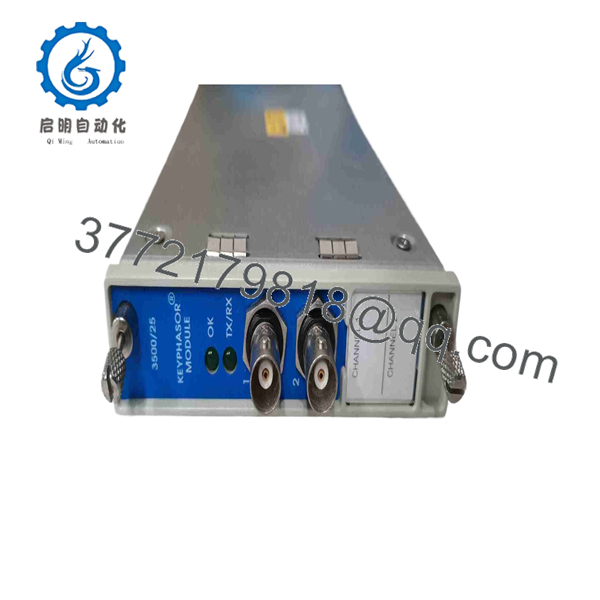

3500/25-01-01-00

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO) on the machinery protection cabinet power feed if required by local safety codes.
2. Put on an anti-static wrist strap connected to cabinet earth ground. ESD discharge can instantly ruin sensitive input circuitry.
3. Record existing software settings in 3500 Rack Configuration Software before removing the legacy card.
4. Take a high-resolution photograph of the rear I/O module wiring terminals to verify pin assignments.

Stage 2: Removal

1. Loosen the upper and lower thumb screws on the main 3500/25 front card using a flathead screwdriver.
2. Pull the ejector levers outward simultaneously to unseat the card from the backplane.
3. Slide the card straight out along the guide rails without twisting to avoid bending rear backplane pins.
4. Unscrew and remove the corresponding rear I/O module if replacing the back end as well.

Stage 3: Installation (Clone & Seat)

1. Install the rear I/O module first, tightening the mounting screws to 0.6 N·m (5 in-lb).
2. Align the new 3500/25 main card into the top or bottom slot guide rails (the 3500/25 is a half-height module).
3. Slide the card in firmly until the ejector levers begin to engage, then press the levers inward to lock the card flush.
4. Reattach the terminal block connectors to the rear I/O module matching the original wiring diagram.

Stage 4: Power-On & Testing

1. Check cabinet 24V DC power rails for stable voltage output before restoring main power.
2. Observe the front panel LEDs: The green OK LED must remain solid, indicating successful self-test execution.
3. Connect an oscilloscope to the front panel BNC outputs to confirm clean pulse conditioning from the sensor.
4. Verify channel speed readings and Keyphasor status in the 3500 System Monitor software.

Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: Version 4.06 or higher for full compatibility with modern 3500 System Rack Interface Modules (RIM 3500/22M).
• Software Compatibility: Requires Bently Nevada 3500 Rack Configuration Software Version 5.30 or later.
• Backward Compatibility: Firmware revisions below V3.80 do not support newer high-density I/O variants or updated IECEx hazard safety profiles.
• Upgrade/Downgrade Warning: Never flash Keyphasor module firmware while the connected machine is actively running. A firmware update cycle temporarily suspends speed processing and phase-tracking outputs, which can trigger fault alarms in downstream DCS/PLC systems. Always perform firmware updates during scheduled plant maintenance turnarounds.

Frequently Asked Questions (FAQ)

Q: Is this 3500/25-01-01-00 module brand new or pulled from a working rack?

A: This unit is 100% Brand New Surplus. It has never been installed in an active industrial environment or pulled from a decommissioned plant. It comes in original OEM packaging and undergoes strict bench-testing before dispatch to verify zero backplane wear and complete functional integrity.

Q: How does New Surplus compare to OEM list prices and second-hand alternatives?

A: Our New Surplus inventory delivers identical OEM quality at 20% to 30% below factory list prices, with immediate shipment instead of 12–16 week factory backorders. While second-hand or repaired cards appear cheaper up front, they carry a high risk of dried-out electrolytic capacitors and hidden thermal stress that can cause false machinery trips costing tens of thousands of dollars per hour.

Q: What does the specific -01-01-00 option code signify?

A: The breakdown for part number 3500/25-AXX-BXX-CXX is:

• A01: No Internal Barriers
• B01: Internal Termination I/O Module included
• C00: Standard Multi-Agency Approval (CSA / ATEX / IECEx) for hazardous areas

Q: Can I hot-swap the 3500/25 Keyphasor card without shutting down the rack?

A: Yes, 3500 main rack cards support hot-swapping under live rack power. However, removing the Keyphasor card temporarily disables phase-reference data across the entire rack. If downstream vibration channels or oversized speed protection logic rely on this Keyphasor signal, switch those trip channels to bypass in the DCS before pulling the card.

Q: How do you handle quality control and ESD protection before shipping?

A: Every module passes a 5-step Quality Assurance SOP. We verify serial numbers against OEM databases, test signal reception on a live 3500 test rack, verify insulation resistance, confirm DIP/firmware settings, and re-seal the card inside an ESD-shielded moisture-barrier bag before packing in heavy-duty foam containers.

Q: What warranty comes with this module?

A: We back this New Surplus 3500/25-01-01-00 card with a comprehensive 1-Year Replacement Warranty. If the unit fails during normal operation within 12 months, we swap it immediately from our dedicated safety stock.
