3. Key Technical Specifications
- Module Type: 3500/33 16-Channel Relay
- I/O Module: 149992-01
- Relay Outputs: 16 independent Form-C (SPDT) relays
- Logic: Per-relay Alarm Drive Logic
- Rack Format: Full-height module + rear I/O
- Power: Approx. 5.8 watts
- Operating Temperature: -30°C to +65°C
- Status: Front panel LEDs for relay states and module health
- Connections: Screw terminals on rear I/O module
- Compatibility: Integrates with 3500 monitors for trip and annunciation
4. Product Introduction
The Bently Nevada 350033 with 149992-01 I/O is the complete 16-Channel Relay Module for the 3500 system. It provides 16 programmable relay outputs that respond to alarm conditions from monitors in the rack.
This assembly gives you direct hard contacts for interfacing with PLCs, shutdown systems, or local alarms. The dedicated I/O module simplifies field wiring while the main module handles logic processing.

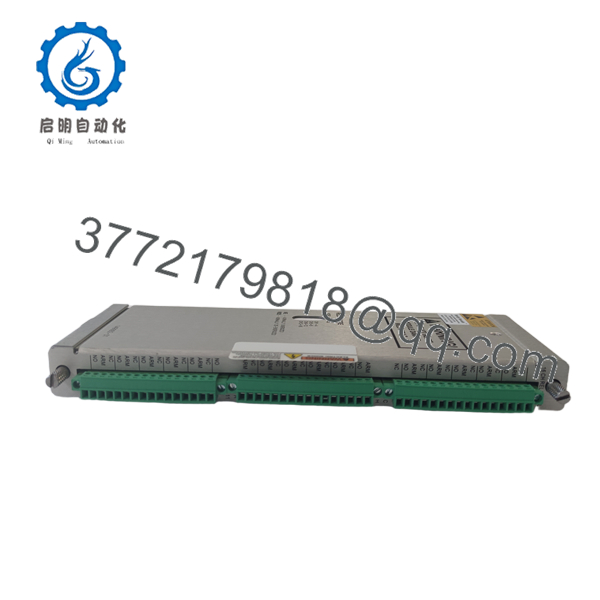

- 3500/33 149992-01

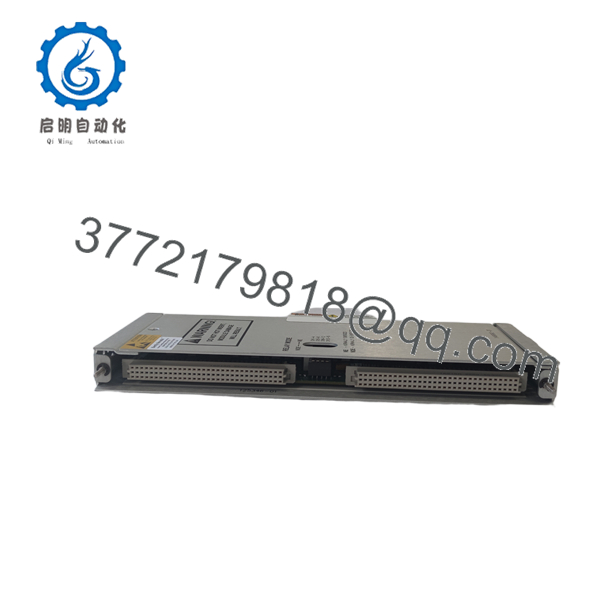

- 3500/33 149992-01
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Relay fails to change state | Logic configuration | ✅ High | Use software to force relay and monitor LED | Check and update alarm drive logic |
| No continuity on contacts | Wiring or failed relay | ✅ High | Measure with multimeter at I/O terminals | Test individual relays |
| Module not responding | Backplane issue | ✅ High | Verify seating and rack power | Reseat both main and I/O modules |
| Erratic relay operation | Loose terminal | ❌ Medium | Inspect and torque all field connections | Clean and secure wiring |
| LED mismatch with software | Sync or firmware issue | ✅ Medium | Compare software status to physical LEDs | Reload configuration |
Send photos of the module LEDs, wiring, and current logic settings for assistance.
6. Frequently Asked Questions (FAQ)
What is the 149992-01? It is the rear I/O module that provides the terminal blocks for the 16 relays. It pairs with the main 350033 relay controller.
Can each relay be programmed independently? Yes. The 3500 configuration software lets you assign specific alarm conditions, voting logic, or combinations to each of the 16 relays.
Is this suitable for SIL-rated applications? It is commonly used in protection schemes. Review your safety requirements and perform proof testing as needed per site standards.
How do I wire the relays? Use the screw terminals on the 149992-01 I/O module. Each relay has normally open, normally closed, and common contacts. Follow wiring diagrams for your application.
Do I need to power down the rack to replace it? Yes. Relay modules affect external circuits. Isolate affected systems before swapping to avoid unintended trips.
What testing is performed on these assemblies? We cycle each relay through software commands, verify contact operation, check isolation, and confirm proper response to simulated alarms in a test rack.
Why stock the complete 350033 + 149992-01? The pair forms a functional unit. Having a tested spare assembly minimizes time to restore annunciation and trip capabilities during maintenance.
