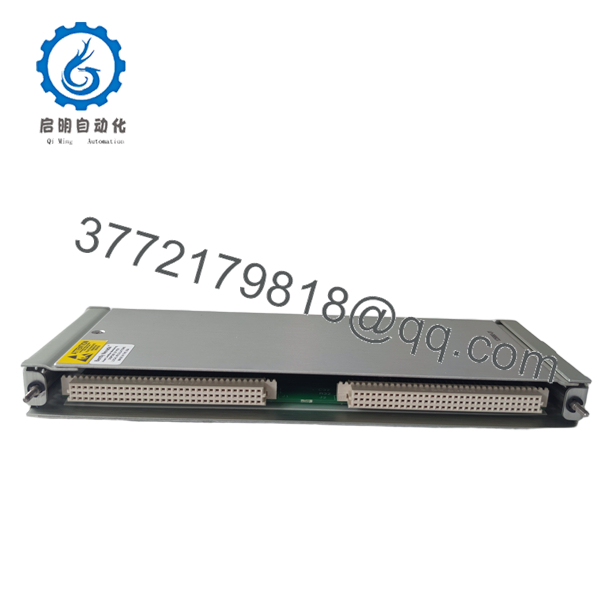

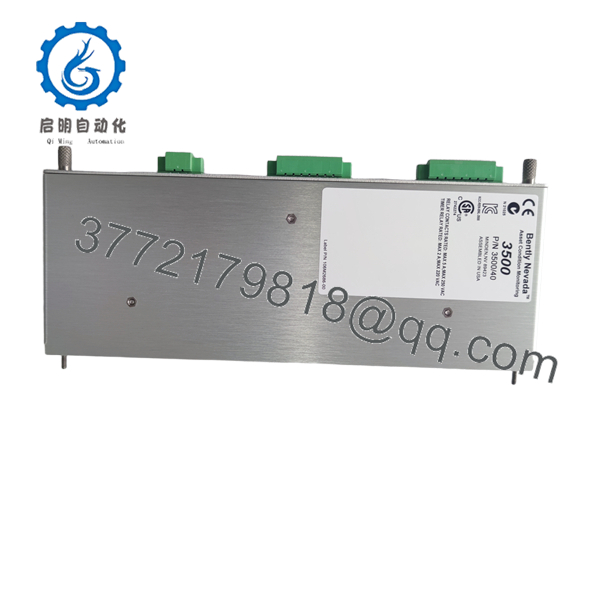

Bently Nevada 3500/40M 125680-01 Proximitor Monitor I/O Module

Description

Key Technical Specifications

Product Introduction

The Bently Nevada 3500/40M 125680-01 is a Proximitor I/O Module with Internal Terminations designed for use with the 3500/40M Proximitor Monitor. It provides the electrical interface between Bently Nevada proximity transducers and the monitor, allowing accurate acquisition of shaft vibration and position signals used for machinery protection.

The 125680-01 version uses internal field terminations, making it suitable for installations where wiring terminates directly within the rack. When combined with the 3500/40M monitor, the module supports four measurement channels and enables continuous monitoring of radial vibration, thrust position, differential expansion, eccentricity, and REBAM® measurements.

350040M 125680-01

350040M 125680-01

Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10 Minutes)

⚠️ Safety First

1. Notify operations before shutting down the protection system.
2. Apply Lockout/Tagout procedures.
3. Remove power from the 3500 rack.
4. Wait at least five minutes before servicing.
5. Wear a grounded ESD wrist strap.

Required Tools

• Phillips screwdriver
• Digital multimeter
• ESD wrist strap
• Wire identification labels
• Camera or smartphone

Before Removal

• Back up the complete rack configuration.
• Photograph all transducer wiring.
• Record channel assignments.
• Verify the existing I/O module part number.

Stage 2 – Remove the Existing I/O Module (5 Minutes)

1. Disconnect field wiring.
2. Label each transducer cable.
3. Remove the rear I/O module retaining hardware.
4. Withdraw the module carefully without bending connector pins.

⚠️ Inspect the rack connector for contamination or bent contacts before installing the replacement.

Stage 3 – Install the New Module (10 Minutes)

1. Verify the replacement part number is 125680-01.
2. Install the I/O module firmly into the rear connector.
3. Secure the retaining hardware.
4. Reconnect all transducer wiring according to the original documentation.
5. Verify cable shielding and grounding.

Installation Checklist

• ✅ Correct model installed
• ✅ Wiring verified
• ✅ Shield grounding confirmed
• ✅ Connector fully seated

Stage 4 – Power-Up & Commissioning (10 Minutes)

1. Restore power to the 3500 rack.
2. Verify the 3500/40M monitor reports normal status.
3. Open the 3500 Rack Configuration Software.
4. Confirm all four channels are communicating correctly.
5. Verify bias voltage and gap readings.
6. Perform a functional check using known machine conditions.

⚠️ Field Tip: If one channel reports unstable vibration or “Not OK,” inspect the transducer extension cable and probe gap before replacing the monitor. In field service, sensor wiring issues occur far more frequently than I/O module failures.

Frequently Asked Questions

Q1. What is the function of the 125680-01?

It serves as the rear I/O interface for the 3500/40M Proximitor Monitor, connecting proximity transducers to the monitor electronics through internal field terminations.

Q2. What is the difference between 125680-01 and 126615-01?

The primary difference is the termination method:

• 125680-01 – Internal Terminations
• 126615-01 – External Terminations

Both support the same 3500/40M monitor but are intended for different cabinet wiring designs.

Q3. Which sensors are supported?

The module is designed for Bently Nevada 3300 XL Series Proximitor® transducers and other compatible proximity transducer systems approved for the 3500/40M monitor.

Q4. What measurements can the 3500/40M perform?

Depending on configuration, the monitor supports:

• Radial Vibration
• Thrust Position
• Differential Expansion
• Eccentricity
• REBAM®

Channels are configured in pairs using the 3500 Rack Configuration Software.

Q5. Can the I/O module be replaced while the rack is energized?

No. Power should always be removed before replacing the rear I/O module to prevent connector damage and avoid incorrect transducer bias readings.

Q6. What is the most common commissioning issue?

Incorrect transducer wiring or cable shielding is encountered much more frequently than a defective I/O module. Before replacing hardware, verify probe gap voltage, extension cable length, connector integrity, and shield grounding.

Q7. Is the 125680-01 still available?
