B&R 3CP152.9 System 2005 CPU Module

Key Technical Specifications

The B&R technical documentation specifically lists the 3CP152.9 as a CP152 System 2005 CPU, with a 0.8 µs instruction cycle, 64 KB dual-ported RAM, 256 KB system RAM, and separate application-memory options.

Product Introduction

The B&R 3CP152.9 is a central processor module for the B&R System 2005 automation platform. It provides the CPU resources required for control execution and includes one RS232 interface, one electrically isolated RS485/RS422/TTY interface, and an expansion master interface for the System 2005 architecture.

One detail matters when replacing this CPU: application memory is not included in the base CPU specification and must be ordered separately. The documented compatible memory options include ME950, ME953, ME960, and ME963. Verify the installed application-memory configuration before ordering a spare.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — 10–15 Minutes

⚠️ Safety First: Put the controlled equipment into its approved safe state. Follow the plant’s LOTO procedure before removing the CPU.

Tools Required:

• ESD wrist strap
• Digital multimeter
• PH1 screwdriver
• Wire labels
• Smartphone/camera
• Appropriate B&R programming/service software

Data Backup:

1. Record the exact 3CP152.9 catalog number.
2. Record the CPU hardware revision and serial number.
3. Identify the installed application-memory module.
4. Record the CPU configuration and communication parameters.
5. Photograph all RS232 and RS485/RS422/TTY connections.
6. Photograph the complete System 2005 rack/module arrangement.
7. Back up the controller application if the existing system permits it.
8. Record any communication node addresses and serial-port settings.

⚠️ Critical: Do not treat the 3CP152.9 as a self-contained replacement CPU without checking the application-memory configuration. B&R’s technical documentation explicitly states that application memory is ordered separately.

Stage 2: Removing the Old CPU — 5–10 Minutes

1. Confirm the machine is in a safe maintenance state.
2. Isolate the system power.
3. Verify the DC supply is de-energized.
4. Photograph the CPU and surrounding modules.
5. Label communication cables before disconnecting them.
6. Disconnect the RS232 connection if fitted.
7. Disconnect the RS485/RS422/TTY connection if fitted.
8. Release the CPU from its mounting arrangement.
9. Remove the CPU without stressing the backplane or adjacent connections.
10. Inspect the mating connectors for contamination or physical damage.
11. Keep the original CPU available until commissioning is complete.

Stage 3: Installing the New CPU — 10–15 Minutes

1. Verify the replacement is B&R 3CP152.9.
2. Compare the hardware revision with the existing unit.
3. Verify the application-memory module is correct.
4. Inspect the connectors and housing.
5. Install the application-memory hardware as required by the B&R documentation.
6. Seat the CPU into the System 2005 assembly.
7. Reconnect the RS232 interface if used.
8. Reconnect the isolated RS485/RS422/TTY interface.
9. Verify communication wiring against the original drawing.
10. Secure the module and all connectors.

Self-Checklist:

• 3CP152.9 verified
• Hardware revision checked
• Application memory verified
• RS232 wiring checked
• //TTY wiring checked
• CPU fully seated
• Communication cables secured
• Original CPU retained for comparison

Stage 4: Power-On & Testing — 15–30 Minutes

1. Perform a final visual inspection.
2. Verify the system supply voltage before powering the rack.
3. Energize the System 2005 assembly.
4. Observe CPU status indicators and startup behavior.
5. Confirm the application loads correctly.
6. Verify the CPU recognizes the expected application memory.
7. Check communication if used.
8. Check //TTY communication if used.
9. Verify communication with connected devices.
10. Run the machine through a controlled dry cycle.
11. Confirm I/O behavior and interlocks.
12. Check for communication or application diagnostics.
13. Return the equipment to production only after the complete control sequence has been verified.

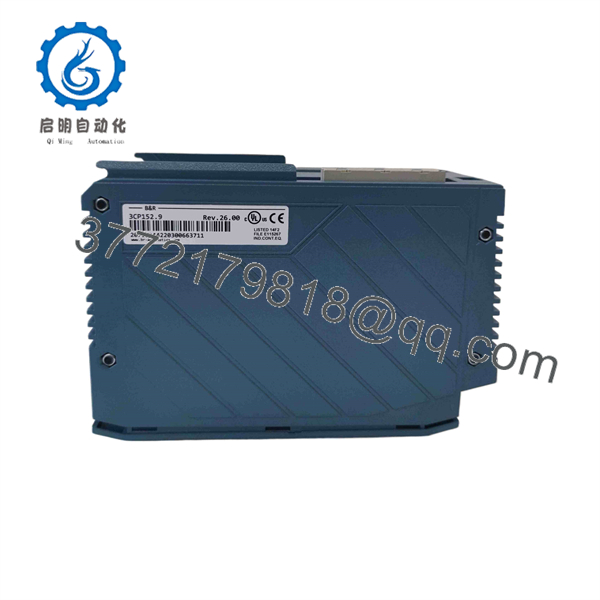

3CP152.9

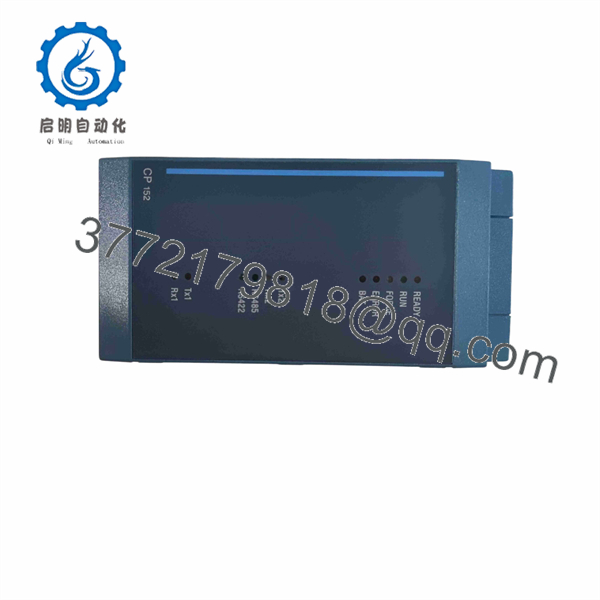

3CP152.9

Common Replacement Pitfalls

❗ 1. Forgetting the Application Memory

The 3CP152.9 CPU specification does not include the application memory. The B&R documentation lists separate ME950, ME953, ME960, and ME963 memory options. A CPU replacement without the correct application-memory arrangement can leave the machine unable to load its expected application.

❗ 2. Confusing 3CP152.9 With 3CP152.90-2

These are not simply different suffixes for the same hardware configuration. B&R documents the 3CP152.90-2 as the variant with NC synchronization, whereas the standard 3CP152.9 does not have that function. Verify the exact suffix before ordering.

❗ 3. Assuming the //TTY Port Is Generic

The interface supports multiple electrical/protocol configurations. Do not reconnect it based only on connector appearance. Record the existing configuration and verify it against the B&R system documentation.

❗ 4. Losing the Existing Configuration

A replacement CPU is not automatically a copy of the old CPU. Back up the application and document the communication configuration before removing the original unit.

❗ 5. Treating Old System 2005 Hardware Like Current Compact PLC Hardware

The System 2005 architecture is a legacy platform. Current availability can depend heavily on surplus and service inventory. Verify the actual hardware revision, application memory, and tested condition rather than purchasing based solely on the catalog number.

Frequently Asked Questions (FAQ)

1. What is the B&R 3CP152.9?

The 3CP152.9 is a System 2005 CPU module from B&R Industrial Automation. It provides the central processing function and includes , electrically isolated //TTY, and an expansion master interface.

2. How much memory does the 3CP152.9 have?

The documented CPU hardware contains 64 KB dual-ported SRAM plus 256 KB system SRAM. Application memory is separate and can use specified ME-series memory modules.

3. Is application memory included with the 3CP152.9?

No. B&R explicitly specifies “Order application memory separately” for this CPU. Compatible documented options include ME950, ME953, ME960, and ME963. Check the machine’s existing memory configuration before ordering.

4. Is the 3CP152.9 the same as the 3CP152.90-2?

No. B&R lists the 3CP152.90-2 as a separate CP152 variant with NC synchronization, while the standard 3CP152.9 does not include NC synchronization. This suffix difference matters for replacement compatibility.

5. What communication interfaces are built into the 3CP152.9?

The CPU provides one interface and one electrically isolated //TTY interface. The / interface is network-capable. It also provides one expansion master interface.

6. Is the 3CP152.9 obsolete?

B&R’s current product page still provides a product entry and technical documentation for the 3CP152.9, while industrial surplus/service suppliers list it as a legacy or discontinued item. For a production spare, verify current OEM support status and actual stock with B&R or the supplier rather than relying on marketplace listings alone.

7. What should I verify when buying a surplus 3CP152.9?

Verify the exact 3CP152.9 suffix, hardware revision, application-memory module, physical condition, serial interfaces, and tested operating status. For a critical System 2005 spare, ask the supplier to document CPU startup and communication testing. Also compare the replacement against the existing CPU before removing the original; the 3CP152.9 and 3CP152.90-2 have different documented functionality.
