Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | Emerson Ovation 1C31125G01 |
| Product type | Digital output personality module |
| System | Emerson Ovation DCS |
| Output channels | 16 single-ended digital outputs |
| Output range | 0–60 VDC field loads |
| Output configuration | Direct, single-ended |
| Per-channel load rating | Up to 500 mA, according to supplier-published data; verify OEM manual |
| Electronics module | 1C31122G01 |
| Base unit | Ovation I/O base unit; supplier data cites 1B30035H01 |
| Auxiliary fuse | 1.25 A, 250 V fast-acting; cited fuse part number EX06098 |
| Field terminal interface | 18-position terminal block, according to supplier-published data |
| Isolation | Supplier data cites 1,000 VAC/DC between field terminals and logic circuits; verify certification documentation |
| Typical loads | Solenoid valves, contactors, indicator lamps, and other DC loads within rating |
| Dimensions | Supplier data cites 12.7 mm × 80 mm × 60 mm; verify mechanical drawing |
| Weight | Supplier data cites approximately 30 g |
| Replacement status | Legacy Ovation spare; stock varies by supplier |
| Condition | Supplier-specific; listings include new, surplus, and used stock |
The 1C31125G01 is consistently identified in listings as an Emerson Ovation digital output module or digital output personality module. Supplier-published data describes 16 single-ended outputs for 0–60 VDC loads and pairing with the 1C31122G01 electronics module. Because several detailed specifications come from distributor pages rather than an OEM datasheet, verify output current, isolation, fuse, dimensions, and terminal assignments against Emerson documentation before installation.
Product Introduction
The Emerson Ovation 1C31125G01 is a 16-channel digital output personality module for Ovation DCS I/O. It switches 0–60 VDC single-ended field loads and interfaces with the 1C31122G01 electronics module.
Use it for discrete control of valves, contactors, annunciators, and similar DC devices within the approved load rating. Confirm the electronics module, I/O base, field terminal assembly, fuse rating, and cabinet wiring before ordering; the personality module is not a standalone output card.

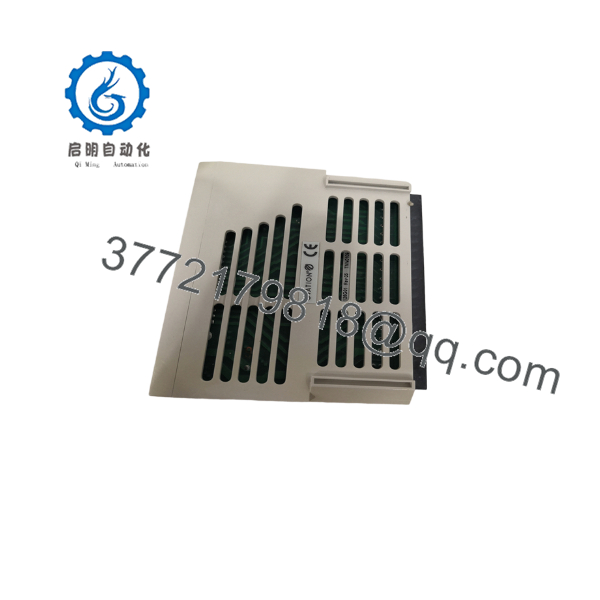

1C31125G01

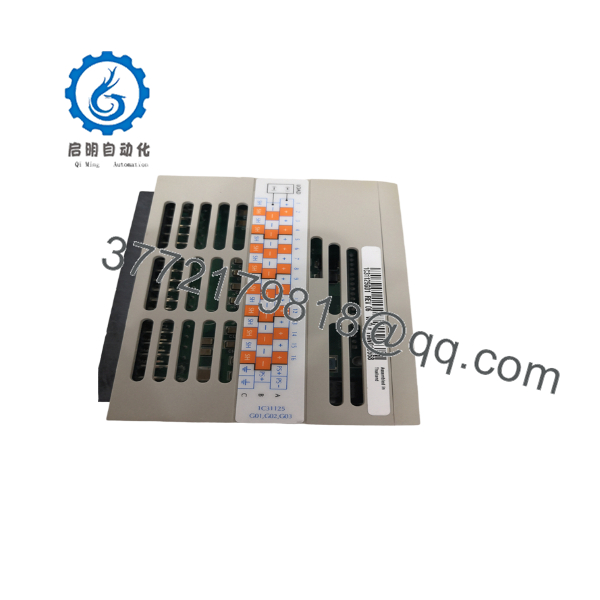

1C31125G01
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All outputs are off | Missing field power, failed 1C31122G01 electronics module, blown auxiliary fuse, or backplane fault | ❌ Low to medium | Measure field supply at the base-unit terminals and inspect the 1.25 A fuse with power isolated | Check field power, fuse, electronics module, and base unit before replacing 1C31125G01 |
| One output remains off | Failed channel, open field wiring, incorrect common, or failed load | ✅ High | Command the channel and measure voltage from its output terminal to the documented field common | Check cable and load first; replace the module if the fault follows one output |
| Several adjacent outputs fail | Connector seating, terminal block fault, shared supply, or board channel group failure | ✅ Medium to high | Test each affected terminal and compare with a known-good channel under a controlled force | Inspect the terminal assembly and connector before replacing the personality module |
| Output is always on | Shorted output device, forced point, logic command, or failed output switch | ✅ High | Remove the field load if safe, clear forces, and measure the output with the command off | Check the Ovation logic and field wiring; replace the module if the output remains energized |
| Fuse blows after installation | Shorted field wiring, excessive aggregate load, incorrect fuse, or module fault | ✅ Medium | Isolate field circuits and test each output circuit separately; verify the exact fuse rating | Do not install a larger fuse; locate the short before re-energizing |
| Output voltage is lower than expected | Supply drop, overloaded load, wiring resistance, or output-stage damage | ✅ Medium | Measure supply at the base unit and voltage at the load while energized | Correct field power and load problems before replacing the module |
| Ovation reports an I/O mismatch | Wrong electronics module, incompatible personality module, base-unit issue, or configuration mismatch | ✅ High | Confirm 1C31122G01 pairing, I/O configuration, slot assignment, and module identification | Use the documented Ovation hardware combination |
| Output works unloaded but fails under load | Load current exceeds rating, inductive kick, weak field supply, or damaged output stage | ✅ High | Measure load current with a calibrated meter and test using a known-good load | Keep current within the approved rating and use required suppression for inductive loads |
| Outputs behave erratically | Noise, grounding issue, loose terminal, forced values, or unstable DCS I/O electronics | ❌ Medium | Review Ovation diagnostics, clear forces, inspect shield and common wiring, and monitor supply voltage | Troubleshoot configuration and field wiring before condemning the module |
| No output after replacing the card | Wrong orientation, connector mismatch, incorrect base unit, or damaged replacement | ✅ High | Compare the part label, keying, terminal positions, and 1C31122G01 pairing | Power down and verify the complete assembly against the OEM drawing |
| Board handled without ESD protection | Latent damage to output drivers or interface circuitry | ✅ Medium | Perform a controlled channel-by-channel test after visual inspection | Use a grounded wrist strap and ESD-safe packaging |
Support note: If the fault remains, contact technical support with photos of the module label, 1C31122G01 electronics module, base unit, fuse, field wiring, Ovation diagnostics, forced-point status, and measured voltages.
Frequently Asked Questions
What is the Emerson 1C31125G01?
It is an Ovation DCS digital output personality module. It provides 16 single-ended direct digital outputs for 0–60 VDC field loads, according to supplier-published specifications.
Is 1C31125G01 a complete digital output card?
No. It is a personality module and must be used with the compatible Ovation electronics module, identified in supplier documentation as 1C31122G01. Verify the base unit and terminal assembly as well.
What voltage and current can the outputs handle?
Listings describe a 0–60 VDC output range and up to 500 mA per channel. Treat the current value as supplier-published until confirmed in the applicable Emerson Ovation hardware manual. Check both per-channel and aggregate cabinet limits.
Can I use this module with a different Ovation electronics module?
Do not assume compatibility. Supplier documentation specifically pairs 1C31125G01 with 1C31122G01. Confirm the electronics module, base unit, firmware, I/O configuration, and field terminal arrangement before installation.
Can I hot-swap the 1C31125G01?
Do not assume it is hot-swappable. Shut down and isolate the affected I/O assembly unless the exact Ovation system documentation explicitly permits live replacement. Remove field power where required, and follow plant lockout/tagout procedures.
Will replacing the personality module change the Ovation configuration?
The DCS configuration may remain in the Ovation controller or engineering database, but output forcing, point assignments, scaling or logic interlocks, and startup states still require verification. Back up the configuration and clear or document forced outputs before testing.
Is 1C31125G01 obsolete?
It should be treated as legacy Ovation hardware with specialist-market availability. Current listings show new, used, and surplus inventory from different suppliers, so condition and warranty are not standardized. Request exact photos, test records, and a written condition statement before purchase.
What should the supplier test before shipping?
Request a power-up test with a compatible 1C31122G01 electronics module, channel-by-channel output testing across representative DC loads, fuse inspection, connector inspection, isolation verification where applicable, and a recorded part and revision check. The supplier should state whether the unit is New Original (New Surplus), Factory Sealed, or Refurbished (tested), and provide warranty and return terms.
