Emerson 1C31161G02 Ovation Digital Output Electronics Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

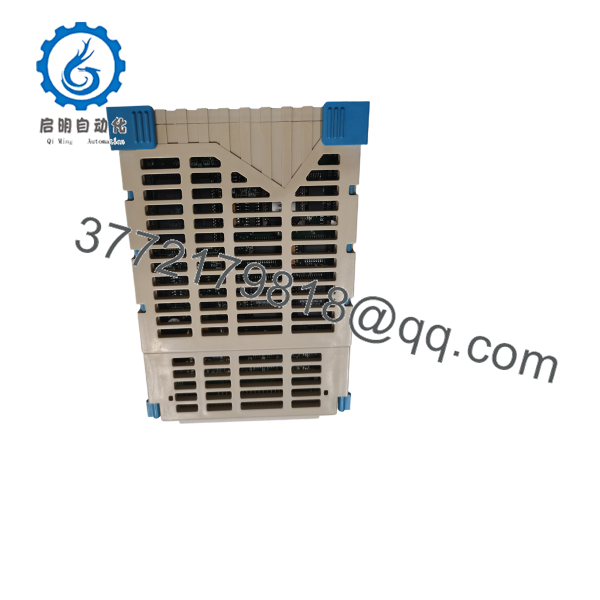

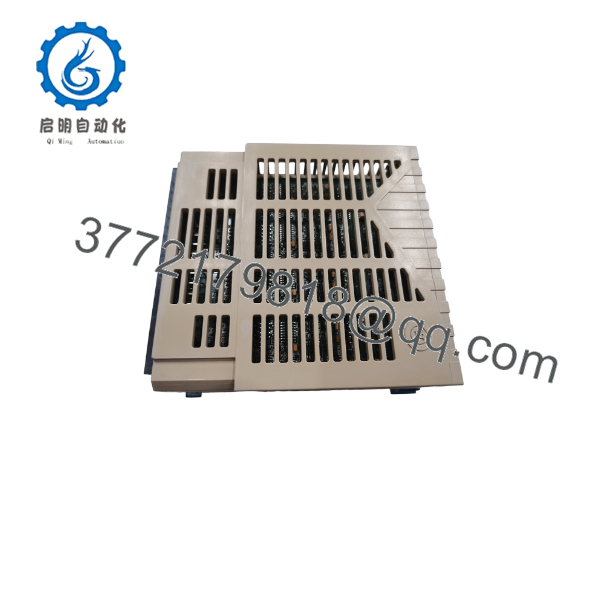

The Emerson Westinghouse 1C31161G02 is a 16-channel digital output electronics module engineered for the Ovation Distributed Control System (DCS). It converts digital control commands from the main Ovation processor into high-speed discrete output signals to drive solenoid valves, interlock relays, motor starters, and alarm annunciators.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Holding 1C31161G02 modules as New Surplus stock is a critical risk mitigation strategy for power generation, water treatment, and continuous process plants. Digital output failures can cause valve actuation lockups or accidental tripping of essential auxiliary equipment. Sourcing genuine New Surplus inventory guarantees zero thermal stress on internal output driver transistors without paying high OEM emergency factory prices.

Refurbished digital output cards carry severe hidden risks: degraded switching transistors, micro-cracks in multi-layer PCB traces, and heat-stressed isolation components that lead to output leakage currents or stuck-on channel failures. We recently saw a chemical plant try to save procurement budget by buying a refurbished DCS I/O module. Three months later, it failed, causing a reactor temperature fault and an emergency shutdown. The downtime cost was 10x what they “saved.” Our new parts offer a 10-15 year expected lifespan and a solid 1-year warranty, compared to a short lifespan and 30-day warranty on refurbished options. Our pricing reflects the cost of securing genuine New Surplus inventory globally. It buys you 100% peace of mind while optimizing your total cost of ownership (TCO).

Installation & Configuration Guide

• Stage 1: Pre-Installation (Prep & Safety)
  1. Execute a complete Lock-Out/Tag-Out (LOTO) on the target I/O subrack power supply and connected field output loads.
  2. Strap on a grounded ESD wrist strap before handling the replacement 1C31161G02 card.
  3. Photograph the existing module front panel indicators, terminal block wiring, and baseplate keying arrangement.
• Stage 2: Removal
  1. Depress the top and bottom blue release latches on the module faceplate.
  2. Slide the 1C31161G02 module straight outward along the card guide rails to disengage backplane pins cleanly.
• Stage 3: Installation (Clone & Seat)
  1. Inspect the baseplate connector to confirm guide tracks and keying match the 1C31161G02 physical requirements.
  2. Push the replacement card smoothly into the guide slot until the rear pins engage the baseplate receptacle.
  3. Firmly press the faceplate until the upper and lower blue locking tabs click securely shut.
• Stage 4: Power-On & Testing
  1. Re-energize the I/O rack power supply and observe the front panel LED initialization sequence.
  2. Verify that the power/status LED illuminates solid green and the red FAULT LED remains off.
  3. Perform a manual output test or force a channel from the Ovation Operator Station to confirm field device actuation and corresponding LED state changes.

1C31161G02

1C31161G02

Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: Fully compatible with Ovation System Software Releases supporting 1C3-series digital output hardware (Releases 2.0 through 3.8+).
• Compatibility Restrictions: Ensure the I/O database configuration in Ovation Developer Studio for the target slot is defined as a 16-channel digital output module. Slot type mismatches will generate a baseplate hardware configuration error.
• Swap Warning: Never flash or modify module firmware on an active backplane during plant operation. Firmware updates must be conducted offline on an isolated test rack to avoid backplane communication locks and inadvertent output state toggles.

Frequently Asked Questions (FAQ)

Q: Is this 1C31161G02 module brand new or pulled from an old panel?

A: This module is 100% New Surplus / Original New stock. It has never been deployed in an operating plant, pulled from decommissioned cabinets, or refurbished. It ships in ESD-safe protective packaging and passes complete physical inspection and automated functional testing before dispatch.

Q: Why is purchasing New Surplus preferable to buying a refurbished output module?

A: Digital output modules experience continuous electrical and thermal stress across their solid-state driver circuits. Refurbished modules often contain fatigued switching transistors that can fail shorted, causing connected field devices to stay energized unexpectedly. New Surplus guarantees factory-grade component integrity, full operational life, and total process safety.

Q: Can I hot-swap the 1C31161G02 module while the subrack is powered?

A: Yes, Ovation I/O baseplates support hot-swapping under powered conditions. However, extracting the card will immediately drop all 16 output channels to their default de-energized/failsafe states. Always place associated control loops in Manual or bypass output interlocks prior to extraction.

Q: Does the 1C31161G02 hold site-specific programming logic or memory settings?

A: No. The 1C31161G02 is a hardware execution card. Control logic, channel configurations, and output maps reside in the parent Ovation Controller database. Upon installation, the card automatically receives operational commands directly over the baseplate bus.

Q: What warranty coverage comes with this New Surplus part?

A: We back this 1C31161G02 digital output module with a comprehensive 1-Year replacement warranty. If any hardware defect or channel switching fault occurs within 12 months under standard operating conditions, we replace the unit immediately from our warehouse inventory.
