3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Serial Link Controller (LC) |
| Communication Interfaces | RS-232, RS-422, RS-485 (configurable) |
| Number of Ports | Typically dual independent serial ports |
| Supported Protocols | Modbus RTU/ASCII, DF1, and others (system dependent) |
| Baud Rates | Up to 115.2 kbps (standard range supported) |
| Power Supply | 24 VDC from Ovation backplane |
| Operating Temperature | –20 to +60 °C (common rating) |
| Isolation | Galvanic isolation between field and system |
| System Compatibility | Emerson Ovation DCS |
| Form Factor | Electronic module for Ovation I/O base |
4. Product Introduction
The Emerson 1C31166G01 is a Serial Link Controller (also called Link Controller or LC Module) for the Ovation distributed control system. It provides a serial data communications link between the Ovation controller and third-party devices or systems using RS-232, RS-422, or RS-485 interfaces.
This module is used when the Ovation system needs to exchange data with external PLCs, intelligent electronic devices, motor control centers, or other serial-based equipment. One port is typically dedicated to the application/device link while the second can support programming or additional communication. It is commonly found in power plants and process facilities that require reliable serial integration with non-Ovation equipment.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No communication with third-party device | Incorrect baud rate, parity, or wiring | ✅ High | Verify serial parameters and cable pinout | Match configuration to device specifications |
| Module not recognized by controller | Poor seating or power issue | ✅ High | Check status LEDs and reseat in base | Confirm power and backplane contact |
| Intermittent data loss or errors | Noise, grounding, or cable length problem | ✅ High | Inspect cable shielding and grounding | Use proper shielded cable and ground correctly |
| One port works, other does not | Port-specific fault or configuration error | ✅ High | Test each port independently | Reconfigure or replace module if one port fails |
| High error rate on RS-485 | Termination or bias resistors missing | ✅ Medium | Check for proper RS-485 termination | Install correct termination resistors |
| Module faults after power cycle | Firmware or configuration corruption | ✅ Medium | Reload configuration from Ovation tools | Restore known-good configuration |
If problems continue, capture Ovation diagnostic logs, serial communication traces if available, photos of the module and cabling, and contact technical support with the serial number.

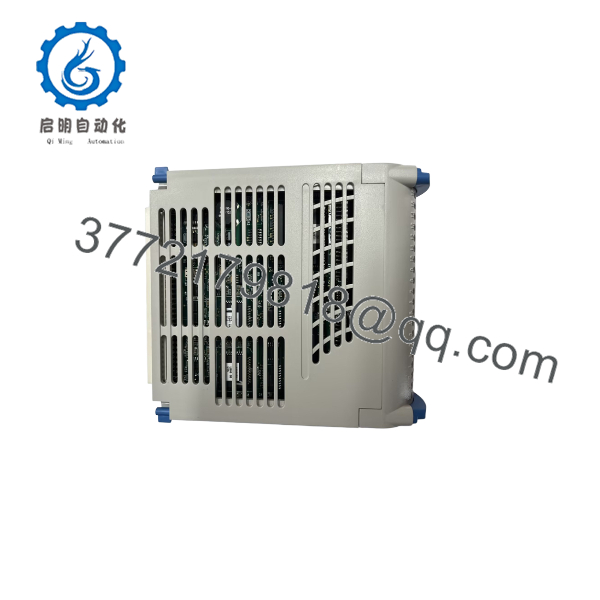

1C31166G01

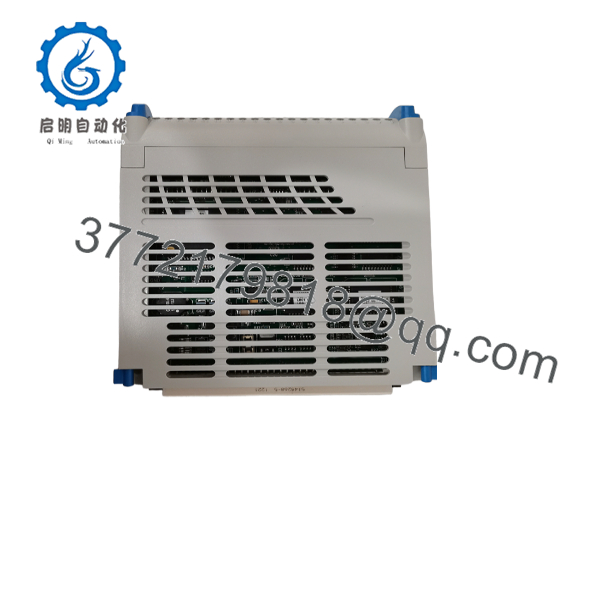

1C31166G01
6. Frequently Asked Questions (FAQ)
Q: What is the 1C31166G01 used for?
A: It is a Serial Link Controller that provides RS-232/RS-485 serial communication between the Ovation controller and third-party devices or systems.
Q: Which serial interfaces does it support?
A: It supports RS-232, RS-422, and RS-485. Configuration is typically done via jumpers or software settings depending on the revision.
Q: How many serial ports are available?
A: The module provides dual independent serial ports. One is commonly used for the application link and the other for programming or secondary communication.
Q: What protocols can it handle?
A: Common supported protocols include Modbus RTU/ASCII and Allen-Bradley DF1. Exact protocol support depends on the firmware and Ovation configuration.
Q: Is this module still in production?
A: Many older Ovation serial link modules are no longer actively manufactured. New surplus and refurbished units remain available. Confirm compatibility with your specific Ovation system revision before ordering.
Q: Why is surplus stock often less expensive?
A: New Surplus units are unused OEM material that never entered service—typically excess project inventory. They are functionally new but may lack the latest factory packaging or original manufacturer warranty paperwork. Every unit is tested and carries our warranty.
Q: How do you test these modules before shipping?
A: Each unit receives visual inspection, power-up verification, serial port loopback and communication testing, status LED checks, and a functional test in a compatible Ovation base. Test documentation is available on request.
