. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Personality Module for Serial Link Controller |
| Interface Supported | RS-485 (4-wire) |
| Compatible Electronics Module | 1C31166G01 |
| Communication Role | Field/serial side interface for Link Controller |
| Power Supply | Derived from base / electronics module |
| Operating Temperature | –20 to +60 °C (typical system rating) |
| System Compatibility | Emerson Ovation DCS |
| Form Factor | Personality module (PMOD) for Ovation I/O base |
| Pairing Requirement | Requires matching 1C31166G01 electronics module |
4. Product Introduction
The Emerson 1C31169G02 is the Personality Module (PMOD) for the Ovation Serial Link Controller when configured for RS-485 4-wire operation. It works together with the 1C31166G01 electronics module to provide the complete serial communication link between the Ovation controller and third-party devices or systems.
This module handles the field-side serial interface and terminations for RS-485 networks. It is used in power plants and process facilities that need reliable multi-drop serial communication over longer distances. The complete Link Controller assembly (electronics + personality module + base) enables protocols such as Modbus RTU and other serial standards supported by the Ovation system.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No RS-485 communication | Incorrect personality module or wiring | ✅ High | Confirm 1C31169G02 is installed with matching electronics | Verify correct PMOD and cable pinout |
| Communication works on short cable but fails on long runs | Termination or bias issues | ✅ High | Check for proper RS-485 termination resistors | Install correct end-of-line termination |
| Module not recognized | Poor seating or mismatched pair | ✅ High | Reseat both electronics and personality modules | Ensure 1C31166G01 + 1C31169G02 pairing |
| Intermittent errors on multi-drop network | Grounding, noise, or missing bias | ✅ High | Inspect shield grounding and bias resistors | Correct grounding and add bias if required |
| One direction of communication fails | Wiring polarity or failed port section | ✅ Medium | Swap A/B lines and retest | Correct polarity or replace module |
| Status LEDs indicate fault | Configuration or hardware mismatch | ✅ Medium | Compare hardware to Ovation configuration | Match system database to installed modules |
If problems continue, capture Ovation diagnostic logs, serial communication details, photos of the modules and cabling, and contact technical support with the serial numbers.
1C31169G02
1C31169G02

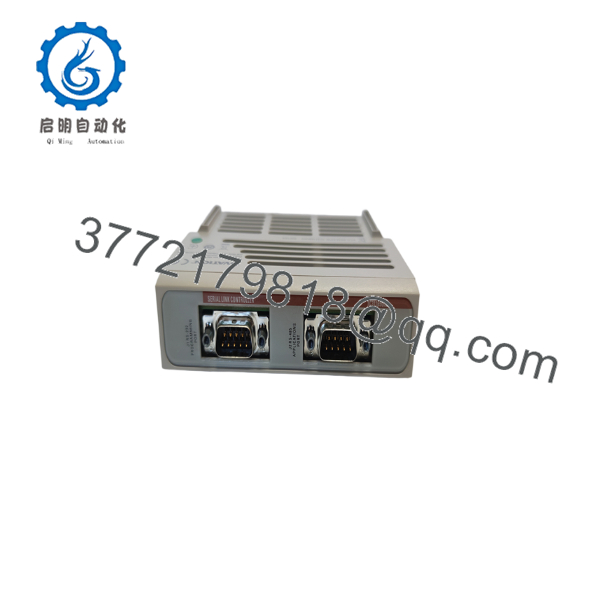

1C31169G02
6. Frequently Asked Questions (FAQ)
Q: What is the 1C31169G02 used for?
A: It is the Personality Module for the Ovation Serial Link Controller configured for RS-485 4-wire serial communication with third-party devices.
Q: Does this module work by itself?
A: No. It must be paired with the matching electronics module 1C31166G01 and installed in a compatible Ovation I/O base to form a complete Link Controller.
Q: What is the difference between 1C31169G01 and 1C31169G02?
A: 1C31169G01 is typically for RS-232 configurations, while 1C31169G02 is the RS-485 4-wire version. Always match the personality module to the required interface.
Q: Can I use this for RS-232?
A: No. This specific group (G02) is designed for RS-485. Use the appropriate personality module for RS-232 applications.
Q: Is this module still in production?
A: Many older Ovation Link Controller components are no longer actively manufactured. New surplus and refurbished units remain available. Confirm compatibility with your system revision before ordering.
Q: Why is surplus stock often less expensive?
A: New Surplus units are unused OEM material that never entered service—typically excess project inventory. They are functionally new but may lack the latest factory packaging or original manufacturer warranty paperwork. Every unit is tested and carries our warranty.
Q: How do you test these modules before shipping?
A: Each unit receives visual inspection, continuity and interface checks, pairing verification with a compatible electronics module, and functional serial communication testing in a compatible Ovation base. Test documentation is available on request.
