3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Compact Contact Input Module (DI) |
| Number of Channels | 16 |
| Input Type | Contact / discrete digital input |
| Onboard Wetting Supply | 48 VDC |
| Isolation | Optical isolation (typical for Ovation DI) |
| Power Supply | 24 VDC from Ovation backplane + onboard 48 V |
| Operating Temperature | 0 to 60 °C (common rating) |
| System Compatibility | Emerson Ovation DCS |
| Form Factor | Electronics module (EMOD) for Ovation base |
| Typical Pairing | Compatible with cavity insert / personality modules |
4. Product Introduction

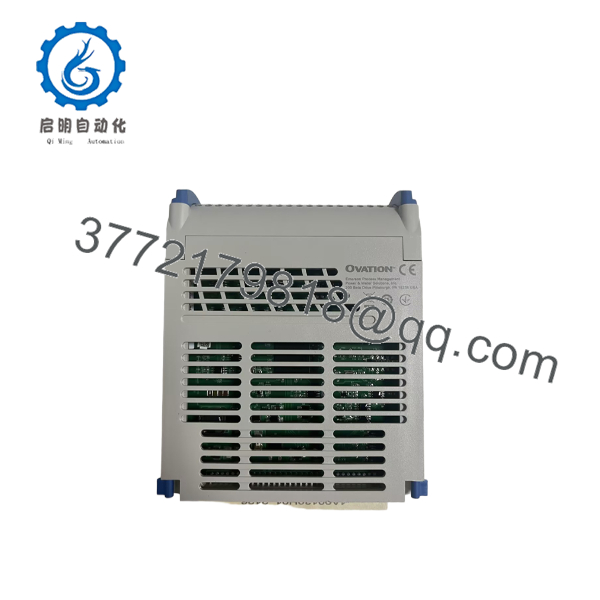

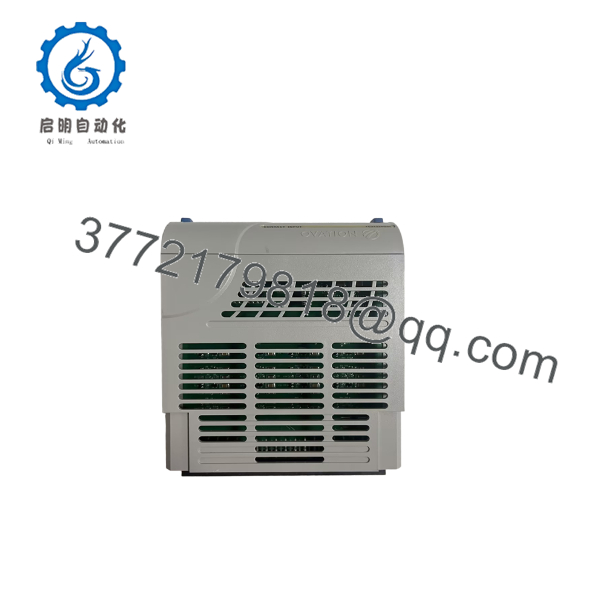

The Emerson 1C31234G01 is a Compact Contact Input Electronics Module for the Ovation distributed control system. It provides 16 optically isolated digital/contact input channels with an onboard 48 VDC wetting (auxiliary) supply.
This module is designed for monitoring dry contacts, limit switches, pushbuttons, and other discrete field devices. The onboard 48 V wetting voltage simplifies field wiring by eliminating the need for an external power supply for many contact inputs. It is commonly used in power plants and process facilities for status monitoring, interlocks, and sequence-of-events applications.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Input channel stuck ON or OFF | Failed channel, wiring short/open, or contact issue | ✅ High | Force contact and monitor status in Ovation | Check field wiring and replace module if channel fails |
| No wetting voltage on inputs | Failed onboard 48 V supply | ✅ High | Measure 48 V at input terminals | Replace module if voltage is missing |
| Multiple channels incorrect | Power or backplane issue | ✅ High | Check module status LEDs and power | Verify backplane power and seating |
| Intermittent input status | Noise, poor grounding, or loose connection | ✅ Medium | Inspect shields and terminal tightness | Improve grounding and secure connections |
| Module not recognized | Poor seating or configuration mismatch | ✅ Medium | Reseat module; compare hardware ID | Match configuration to installed module |
| High false trips / bounce | Insufficient debounce or noisy contacts | ✅ Medium | Review debounce filter settings | Adjust filtering or clean field contacts |
If problems continue, capture Ovation diagnostic data, photos of the module and field wiring, and contact technical support with the serial number.
1C31234G01
1C31234G01
6. Frequently Asked Questions (FAQ)
Q: What is the 1C31234G01 used for?
A: It is a 16-channel Compact Contact Input Module with an onboard 48 VDC wetting supply for monitoring dry contacts and discrete field devices in the Ovation system.
Q: Does it provide the wetting voltage itself?
A: Yes. It includes an onboard 48 VDC auxiliary supply for wetting the contact inputs, reducing the need for external power sources in many applications.
Q: How many channels does it have?
A: 16 individual optically isolated contact/digital input channels.
Q: Does it require a personality module?
A: It is typically used with a compatible cavity insert or personality module and base unit. Confirm the complete assembly required for your specific configuration.
Q: Is this module still in production?
A: Many older Ovation digital input modules are no longer actively manufactured. New surplus and refurbished units remain available. Confirm compatibility with your system revision before ordering.
Q: Why is surplus stock often less expensive?
A: New Surplus units are unused OEM material that never entered service—typically excess project inventory. They are functionally new but may lack the latest factory packaging or original manufacturer warranty paperwork. Every unit is tested and carries our warranty.
Q: How do you test these modules before shipping?
A: Each unit receives visual inspection, power-up verification (including 48 V wetting supply check), channel-by-channel input simulation and status verification, and a short functional burn-in in a compatible Ovation base. Test documentation is available on request.
