3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Controller Base Assembly (CTI R Base) |
| Slot Capacity | 4 slots |
| Supported I/O | Supports 8 to 16 I/O (system dependent) |
| Power Supply | 24 VDC |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | –40 to 85 °C |
| Humidity (non-condensing) | 5% to 95% |
| Weight | Approx. 1.18 kg |
| System Compatibility | Emerson Ovation DCS |
| Primary Function | Mechanical/electrical base for controller and I/O modules |
4. Product Introduction
The Emerson 5X00225G01 is a Controller Base Assembly (also known as CTI R Base or Control Base Rack) for the Ovation distributed control system. It provides the physical mounting structure, backplane connections, and power distribution for Ovation controller modules and associated I/O.
This 4-slot base is used in power generation, water treatment, and process plants that run Ovation. It serves as a direct form-fit replacement for existing installations, preserving the original rack layout, wiring, and controller configuration without requiring system redesign.

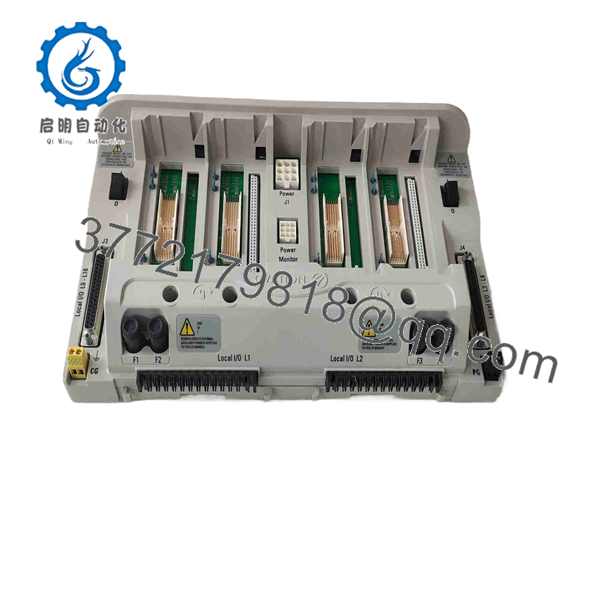

5X00225G01

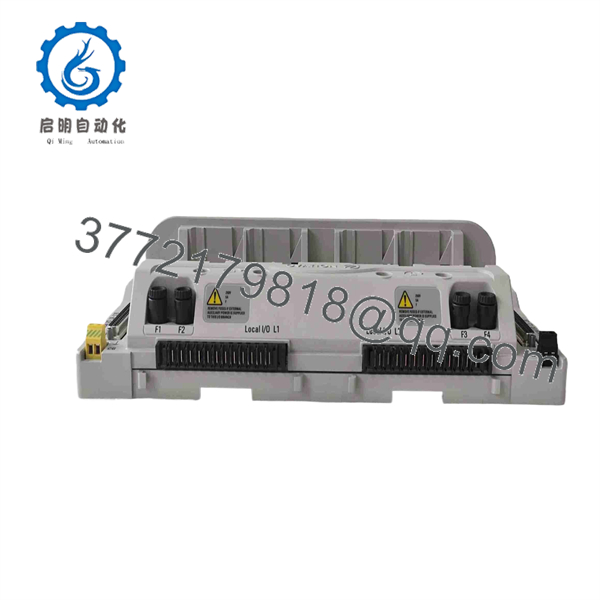

5X00225G01
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power to any modules in rack | Base power feed failure or blown fuse | ✅ High | Measure 24 V DC at base power terminals with multimeter | Verify upstream power supply and fuses first |
| Controller fails to boot | Poor backplane contact or damaged base connectors | ✅ High | Reseat controller; inspect edge connectors for bent pins or corrosion | Clean contacts; replace base if connectors damaged |
| Intermittent communication loss | Loose module seating or backplane issue | ✅ High | Check all modules fully seated; examine base for mechanical damage | Ensure proper insertion force; inspect for cracked PCB |
| One slot dead, others OK | Isolated slot power or signal path failure | ✅ High | Swap known-good module into suspect slot | If problem follows slot, replace base |
| Overheating or thermal alarm | Restricted airflow or overloaded base | ✅ Medium | Measure rack temperature; verify ventilation | Confirm total power draw leaves adequate margin |
| Configuration mismatch after swap | Wrong base revision or incomplete hardware recognition | ✅ Medium | Compare base revision and serial with Ovation engineering database | Match exact revision; update hardware configuration |
If the issue persists after these checks, capture Ovation diagnostic logs, photos of the base and installed modules, and contact technical support with the serial number.
6. Frequently Asked Questions (FAQ)
Q: What is the 5X00225G01 used for?
A: It is the Controller Base Assembly (CTI R Base) that provides the mechanical mounting, power distribution, and backplane connections for Ovation controller modules and I/O in a 4-slot configuration.
Q: Can I hot-swap modules in this base?
A: No. Power down the rack or isolate the base before inserting or removing modules. Live insertion risks damaging the backplane or the modules.
Q: How many slots does it have?
A: It is a 4-slot base. Confirm your specific controller and I/O combination against the Ovation system documentation to ensure proper loading.
Q: Is this a direct replacement for older Westinghouse Ovation bases?
A: In most cases yes, provided the revision is compatible with your installed controllers and firmware. Always verify the exact revision against your plant documentation before ordering.
Q: Why is surplus stock often less expensive than factory-new?
A: New Surplus units are unused OEM material that never entered service—typically excess project inventory. They are functionally new but may not include the latest factory packaging or original manufacturer warranty paperwork. Every unit is tested and carries our warranty.
Q: Does the base store any configuration data?
A: No. Configuration resides in the controller modules and the Ovation engineering database. After physical replacement, confirm the controller recognizes the hardware and that the system configuration matches the installed modules.
Q: How do you test these bases before shipping?
A: Each unit receives visual inspection (no corrosion, bent pins, or mechanical damage), continuity and power distribution checks, module insertion/seating verification on a test rack, and functional power-up testing. Test documentation is available on request.
