3. Key Technical Specifications
- Continuous current rating: 3.0 A
- Peak current rating: 6.0 A
- Matched continuous torque (with DXM-205 motor): 5 in-lbs
- Peak torque (with matched motor): 10 in-lbs
- Input voltage: 96–132 VAC, 50/60 Hz, single-phase
- Switching frequency: 20 kHz
- Feedback: Resolver (position and velocity)
- Amplifier weight: approx. 13 lb (5.9 kg)
- Approximate dimensions: 9.5 × 13.0 × 6.0 in (24.1 × 33.0 × 15.2 cm)
- Operating modes: Analog, Pulse Follower, Indexing
4. Product Introduction
The Emerson DXA-205 is the amplifier section of the DX-205 Positioning Servo Drive system. It delivers closed-loop position and velocity control using resolver feedback and is designed for single-phase 96–132 VAC input. The unit is paired with a matched low-inertia motor to produce 5 in-lbs continuous and 10 in-lbs peak torque.
This amplifier is used in applications that require precise point-to-point or continuous motion control, such as indexing, packaging, material handling, and machine tool axes. Its compact footprint and built-in positioning capability reduce the need for external controllers in many installations.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power / blank display | Missing or incorrect AC input | ✅ High | Measure 96–132 VAC at input terminals | Verify supply voltage and fuses before replacing the amplifier |
| Drive enables but motor does not move | Resolver feedback fault or wiring error | ✅ High | Check resolver cable continuity and connector seating | Inspect and reseat feedback cable; verify against known-good unit if available |
| Following error or position fault | Excessive load inertia or tuning issue | ✅ Medium | Confirm load inertia is within ~10× motor inertia guideline | Reduce load or adjust gain settings; amplifier itself is usually not the root cause |
| Overcurrent or thermal trip | Shorted motor leads or excessive duty cycle | ✅ High | Measure motor winding resistance and insulation; check for mechanical binding | Clear mechanical issues and verify wiring before powering again |
| Intermittent communication or mode loss | DIP switch or I/O wiring error | ✅ Medium | Verify DIP switch settings match required mode (Analog / Pulse / Index) | Photograph original settings before any change; match exactly on replacement |
If the fault persists after basic checks, capture clear photos of the wiring, DIP switches, and any LED status codes and send them to technical support with the diagnostic details.

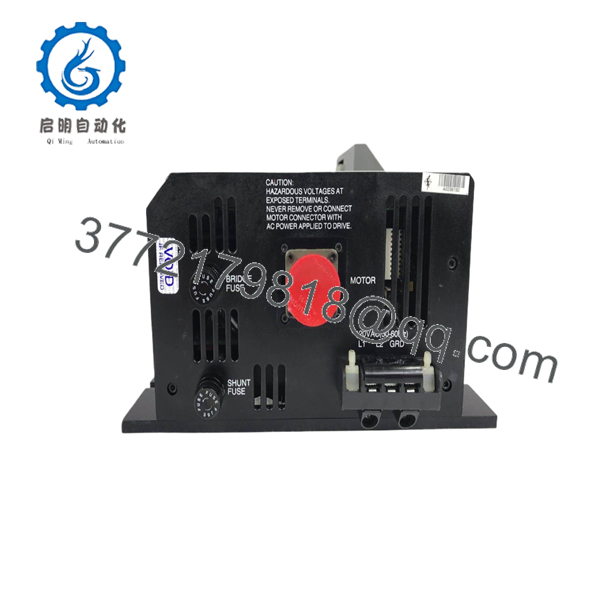

DXA-205

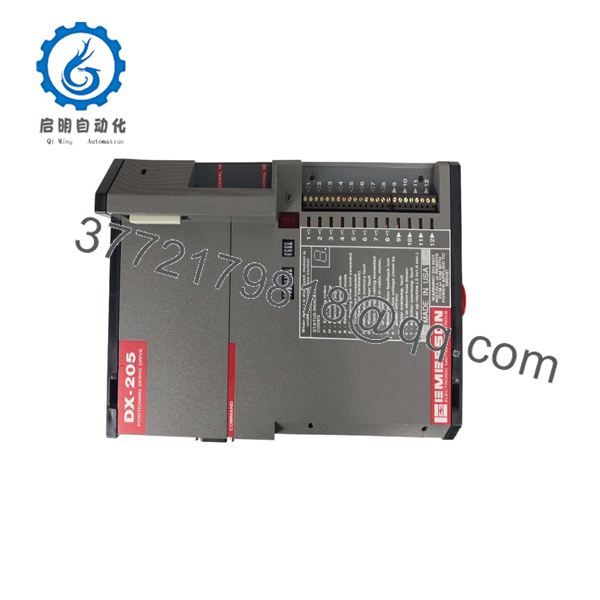

DXA-205
6. Frequently Asked Questions (FAQ)
Q: Is the DXA-205 still in current production?
A: This is an older DX-Series amplifier. Units are supplied as New Original / New Surplus from available inventory. Confirm current availability and any recommended replacements against the latest Emerson documentation.
Q: Can I use the DXA-205 with a different motor than the DXM-205?
A: The amplifier is matched to the DXM-205 motor for the published 5/10 in-lb torque ratings. Using a different motor requires verification of current ratings, resolver compatibility, and thermal limits. Always check the official motor-drive pairing tables.
Q: Does the amplifier store programs or parameters that need to be transferred?
A: Basic configuration is set via DIP switches and external command signals. If a PCM or IOM module is installed, user programs or expanded I/O settings may be present. Document all switch positions and any module configuration before removal.
Q: What is the correct input voltage?
A: 96–132 VAC single-phase, 50/60 Hz only. Do not apply 230 V or three-phase power. Incorrect voltage will damage the unit.
Q: Why is this unit priced lower than a new factory quote?
A: These are New Original / New Surplus units from excess inventory channels. They undergo visual inspection, power-up testing, and basic functional verification. A one-year functional warranty is provided. Factory packaging and current production support may differ.
Q: Is hot-swapping allowed?
A: No. Always remove AC power and wait for the DC bus to discharge before installing or removing the amplifier. Hot-swapping risks damage to the drive and connected equipment.
Q: What are the most common installation mistakes?
A: Wrong input voltage, mismatched resolver cable pinout, incorrect DIP switch mode selection, and exceeding the recommended load inertia ratio. Always photograph the existing installation, verify voltage first, and match the exact motor and feedback cable specified for the DX-205 system.
