The Ovation planning documentation specifies 1C31189G03 with 1C31192G01 as a valid Speed Detector configuration. It provides a 32-bit high-resolution speed value from 0.1 Hz to 30,000 Hz and a 16-bit acceleration value of ±32,767 RPM/min. The documented I/O points also include overspeed, latched overspeed, relay status, simulated speed, acknowledgment, and trip-relay functions.

Product Introduction

The Emerson Ovation 1C31189G03 is a Speed Detector Module used to acquire and process rotating-equipment speed information within an Ovation DCS. The documented configuration uses the 1C31192G01 Personality Module and supports high-resolution speed measurement from 0.1 Hz to 30,000 Hz.

The module is suited to applications where speed feedback and overspeed status must be presented to Ovation control and protection logic. Its defined channels include speed, acceleration, overspeed, trip-relay, and simulation functions. The G03 module is documented for Ovation software release 3.3.1 and later.

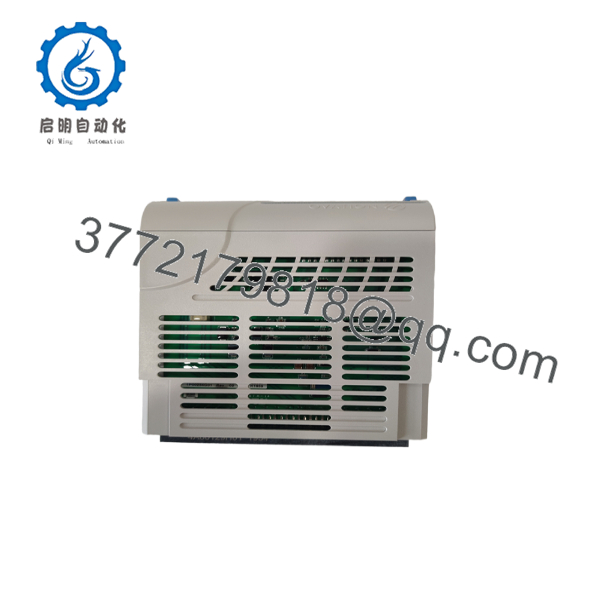

1C31189G03

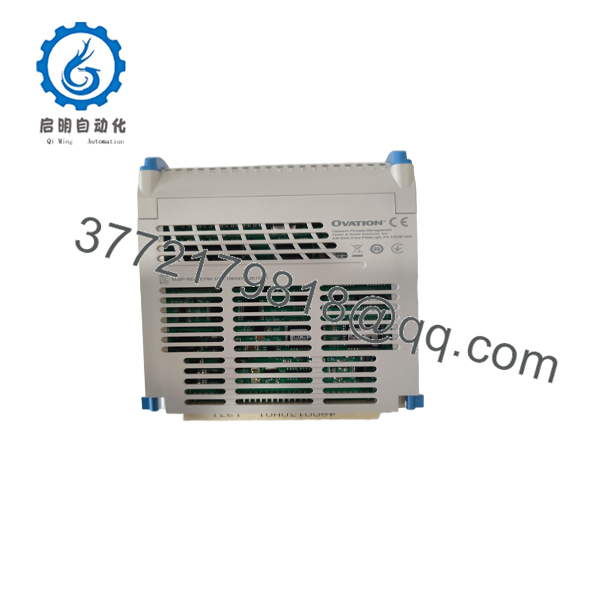

1C31189G03

Installation & Configuration Guide

Stage 1 — Pre-Installation Preparation — 5–10 min

1. Apply LOTO and place the turbine or rotating equipment in the approved maintenance state.
2. Confirm the replacement nameplate reads 1C31189G03.
3. Verify the installed Personality Module is 1C31192G01 or another officially compatible configuration.
4. Record the existing terminal wiring and module LED/status indications.
5. Photograph the module, terminal block, keying positions, and associated speed-sensor wiring.
6. Prepare:
   • ESD wrist strap
   • PH1 screwdriver
   • Digital multimeter
   • Wire labels
   • Smartphone/camera
7. Back up applicable Ovation configuration and control logic before replacement.
8. Confirm the installed Ovation software revision. The documented G03 module applies to Ovation 3.3.1 and later.

⚠️ Do not treat a speed-detector replacement as an ordinary analog-input swap. A wrong speed configuration can affect overspeed monitoring and associated trip logic.

Stage 2 — Removing the Existing Module — ~5 min

1. Confirm the equipment is mechanically safe and cannot rotate unexpectedly.
2. Record the current speed, overspeed, alarm, and relay status.
3. Label every speed-sensor and terminal connection.
4. Disconnect field wiring according to the approved cabinet procedure.
5. Release the I/O module retention mechanism.
6. Pull the existing module straight from its base.
7. Inspect the terminal block, keying mechanism, connector contacts, and wiring.
8. Keep the removed module available until commissioning is complete.

The Ovation maintenance documentation describes keyed I/O card installation, with the card’s key corresponding to the terminal-block configuration. Verify the physical keying before insertion.

Stage 3 — Installing the 1C31189G03 — 5–10 min

1. Verify the exact part number: 1C31189G03.
2. Verify the associated 1C31192G01 PMOD.
3. Inspect the replacement card for damaged pins, contamination, or cracked components.
4. Use ESD protection while handling the module.
5. Confirm the terminal block keying matches the module.
6. Seat the module evenly into the terminal-block base.
7. Reconnect each field wire according to the photographs and wiring documentation.
8. Verify polarity and sensor connections.
9. Check that no conductor is loose or exposed.
10. Confirm the module is fully seated before energizing.

Installation Self-Check

• 1C31189G03 verified
• 1C31192G01 PMOD/configuration verified
• Correct terminal block confirmed
• Keying verified
• Speed-sensor wiring labeled
• ESD precautions maintained
• Module fully seated
• Field wiring rechecked

Stage 4 — Power-On & Testing — 10–15 min

1. Perform a pre-power visual and electrical inspection.
2. Restore cabinet power under the approved Ovation procedure.
3. Check module status indications.
4. Verify that the Ovation controller recognizes the speed-detector channel.
5. Confirm the measured speed value against an independent reference where available.
6. Verify acceleration feedback.
7. Check the Overspeed and Overspeed Latched status channels.
8. Verify the applicable relay-status and trip-relay indications.
9. If the application uses simulation, perform the test under a controlled maintenance procedure.
10. Do not return the turbine to normal operation until the complete speed-detection chain has been validated.

Supplier Acceptance / QC Checklist

For a shutdown-critical spare, the supplier acceptance record should identify:

• Exact part number and revision
• Serial-number/traceability information where available
• PCB and connector visual inspection
• ESD-controlled handling
• Functional power-up test
• Speed-signal simulation or equivalent functional test
• Verification of applicable I/O channels
• Firmware/software compatibility review where applicable
• Electrical safety checks appropriate to the test procedure
• Final QC inspection and ESD packaging

For this module, a meaningful test should demonstrate speed acquisition and channel behavior, not simply that the board powers on.

Technical Pitfall & Survival Guide

1. Do Not Confuse G03 With G04

The Ovation Speed Detector family contains G03 and G04 variants. The documented G03 configuration uses 1C31189G03 + 1C31192G01. Verify the installed system configuration before substitution.

2. PMOD Compatibility Matters

The 1C31189G03 electronics module should not be purchased independently of the installed personality-module configuration. 1C31192G01 is the documented PMOD pairing for the G03 configuration.

3. Verify the Speed Signal Before Testing Overspeed Logic

A speed detector can report a plausible-looking value while the sensor wiring, scaling, or channel assignment is wrong. Compare the Ovation reading against an independent tachometer or approved simulation source before validating protection logic.

4. Understand the Channel Definitions

The documented G03 configuration includes multiple dedicated functions, including speed, acceleration, overspeed, latched overspeed, simulation, relay acknowledgment, and trip-relay functions. Do not assume unused channels are interchangeable.

5. Check Software Compatibility

The documented 1C31189G03 applies to Ovation 3.3.1 and later releases. If the host system is older, confirm compatibility before installation rather than discovering the issue during a shutdown.

6. CE Certification Requires Verification

The referenced Ovation documentation explicitly identifies the listed G03/G04 module configurations as non-CE Mark certified. If the cabinet or project has a CE compliance requirement, verify the exact certified configuration before procurement.

Frequently Asked Questions (FAQ)

1. What is Emerson 1C31189G03?

The 1C31189G03 is an Emerson Ovation Speed Detector Module used to acquire and process speed information from rotating equipment. Its documented configuration supports high-resolution speed measurement and dedicated overspeed-related I/O points.

2. Which Personality Module is used with 1C31189G03?

The documented G03 configuration uses 1C31192G01 as its Personality Module. Confirm the complete electronics/PMOD combination against the existing Ovation installation before ordering.

3. What is the speed measurement range?

The documented high-resolution speed value covers 0.1 Hz to 30,000 Hz. The module also provides a 16-bit acceleration value with a range of ±32,767 RPM/min.

4. Is 1C31189G03 suitable for turbine overspeed applications?

Yes, the documented channel set includes Overspeed, Overspeed Latched, and Trip Relay functions, making it applicable to rotating-equipment speed monitoring and protection architectures. Final trip implementation depends on the site’s Ovation control/protection logic.

5. What Ovation software version supports 1C31189G03?

The maintenance documentation states that 1C31189G03 modules are applicable to Ovation 3.3.1 and later software releases.

6. Is 1C31189G03 obsolete?

It is a legacy Ovation component and current aftermarket listings show limited supply. Availability varies by supplier, so procurement should verify the actual part number, condition, serial/traceability information, and test status rather than relying only on a stock-page description.

7. What should I verify before purchasing?

Verify 1C31189G03, the associated 1C31192G01 PMOD, terminal-block/keying arrangement, Ovation software revision, speed-sensor type, and required certification. For a turbine or other critical rotating asset, request photographs of the actual nameplate and a functional-test report before shipment.
