3. Key Technical Specifications
- Function: Control processor and management module
- Compatibility: Matrix X4, X8, X16 chassis
- Redundancy: Supports 1+1 redundant configuration
- Management: CLI, SNMP, embedded routing/switching control
- Architecture: Distributed system intelligence
- High Availability: Hot-swappable in redundant setups
- Operating Temperature: Standard enterprise range (0°C to +50°C typical)
- Power: Draws from chassis backplane
- Form Factor: Plug-in module for X-Series chassis
4. Product Introduction

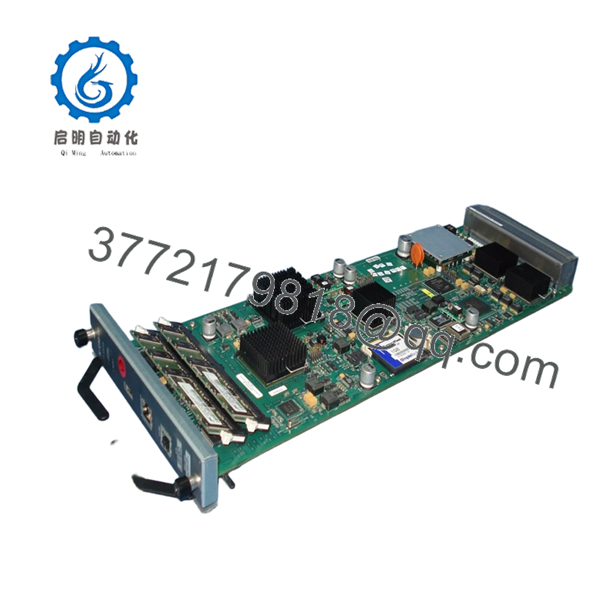

The Enterasys X-CM-00 is the control module for Matrix X-Series Secure Core Routers, including the X8 and X16 chassis. It handles centralized management, control plane processing, and system coordination across I/O modules in these high-capacity routing platforms.
In field use with X-Series deployments, this module provides the necessary redundancy and management functions for mission-critical enterprise and service provider cores. It enables the distributed forwarding architecture while maintaining a single point for configuration and monitoring.
- X-CM-00
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No MGMT LED activity | Power or module seating issue | ✅ High | Verify chassis power rails and module insertion | Reseat module; check redundant CM if installed |
| Chassis not responding to management | Control module failure or firmware issue | ✅ High | Console into CM; check “show system” output | Fail over to redundant CM or replace |
| High CPU on control plane | Routing table overload or DoS | ✅ Medium | Monitor CPU via CLI commands | Review routes, ACLs, and traffic patterns |
| Redundancy failover not working | Configuration mismatch between CMs | ✅ High | Compare running configs on both modules | Sync configurations before failover testing |
| Intermittent management access | Loose connections or fan/power issues | ❌ Low | Check chassis environmental logs | Inspect power supplies and cooling |
| Module offline LED | Hardware fault or incompatibility | ✅ High | Check logs for specific errors | Replace with verified compatible unit |
Contact technical support with chassis model, serial numbers, and diagnostic logs if the control module does not respond after basic reseating and power cycle.
6. Frequently Asked Questions (FAQ)
Does the X-CM-00 support redundancy? Yes. X-Series chassis support dual control modules for 1+1 redundancy. Install a second unit for automatic failover capability.
What chassis does this control module fit? It is designed for the Matrix X4, X8, and X16 Secure Core Router chassis. Confirm your exact chassis model before ordering.
Is this module hot-swappable? In a redundant pair configuration, you can replace one while the other maintains system operation. Always follow proper failover procedures.
How does management work with this module? It provides the primary control plane for CLI access, SNMP, and system-wide configuration. I/O modules handle distributed forwarding.
Is this new surplus or refurbished? New Original / New Surplus stock. Units undergo full inbound inspection, power-on testing, and verification in a compatible X-Series chassis.
This part is obsolete — do you have firmware? We document current firmware during testing. Specify your target version when ordering. Support is limited due to the age of the platform.
Will one CM run the full X16 chassis? Yes. A single control module can manage the entire system, though redundancy is strongly recommended for production environments.
