Fireye EB700 Flame-Monitor Control Chassis

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Fireye EB700 is the heavy-duty wiring base and mounting chassis engineered specifically for the Fireye Flame-Monitor burner management system. It serves as the physical and electrical interface connecting external combustion safety devices—such as limit switches, flame scanners, air proving switches, and fuel shutoff valves—to the internal control logic of E110/E210 programmer modules and flame amplifiers.

With Fireye officially discontinuing the EB700 chassis, sourcing this part as New Surplus is a necessary risk-mitigation strategy to avoid expensive boiler retrofits. A worn chassis with oxidised terminal contacts or hairline insulation cracks causes intermitting flame trip faults, leading to unexpected plant outages. Sourcing genuine New Surplus EB700 units guarantees original OEM mounting continuity, zero-contact wear, and immediate plug-and-play installation without needing to rewire or re-certify the entire burner enclosure.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Lock-Out/Tag-Out (LOTO): Isolate all incoming line voltage (120/220 VAC) power supplies to the burner control panel. Ensure all fuel supply valves are mechanically closed.
2. Static Protection: Put on a grounded ESD wrist strap before handling sensitive electronic programmer modules attached to the chassis.
3. Traceability: Label every field wire cleanly and take high-resolution photographs of the terminal screw landing positions on the existing chassis before disconnecting.

Stage 2: Removal

1. Unfasten the securing screws holding the Flame-Monitor programmer module and flame amplifier to the EB700 chassis, then gently pull them straight off the backplane connector.
2. Loosen the terminal screws and remove all field wiring harnesses.
3. Unbolt the chassis mounting screws from the subpanel enclosure and remove the old unit.

Stage 3: Installation (Clone & Seat)

1. Secure the new chassis firmly onto the enclosure panel using the original mounting hole layout.
2. Land all field wires onto the designated terminal screws according to your original wiring photos and Fireye system schematics. Tighten terminal screws securely to prevent high-resistance connections.
3. Inspect backplane pin alignment and carefully push the programmer and amplifier modules firmly onto the base until fully seated, then tighten the retaining screws.

Stage 4: Power-On & Testing

1. Re-apply main electrical power to the safety panel. Verify line voltage levels across terminals L1 and L2 using a digital multimeter.
2. Perform a dry-run safety interlock test: verify that purge interlocks, high/low gas pressure switches, and combustion air switches correctly pass signals to the chassis input terminals.
3. Initiate a normal burner startup cycle and monitor for uninterrupted sequence timing and stable flame signal retention.

EB700

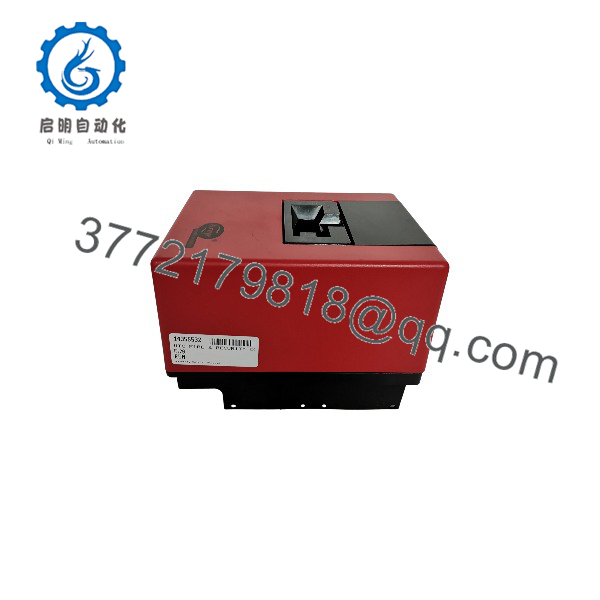

EB700

Firmware/Software Versions & Upgrade Notes

• Hardware Pass-Through Architecture: The Fireye is an electro-mechanical wiring chassis containing no microprocessors, firmware, or software logic.
• Module Interchangeability: Logic execution depends entirely on the plug-in programmer module (e.g., E110, E120, E211). You can swap or upgrade programmer modules on the same base without modifying physical cabinet wiring.
• System Migration Note: If migrating from legacy Fireye C-Series or D-Series controls, the matches the original wiring footprint, making physical retrofits straightforward.

Frequently Asked Questions (FAQ)

1. Is this Fireye chassis brand new, or is it a used/refurbished part?

This unit is guaranteed 100% Original New Surplus. It has never been installed in a burner control panel, subjected to high-temperature boiler room environments, or wired into service. The unit is stored in clean factory packaging and undergoes physical and electrical continuity checks prior to shipment.

2. Why should I buy New Surplus instead of a refurbished chassis?

Refurbished bases often suffer from micro-arcing damage on terminal contacts, heat-brittled plastics, or degraded screw threads from repeated wiring changes. A loose or oxidized terminal connection in a burner safeguard system can cause false interlock trips, leading to thousands of dollars per hour in process downtime. Buying New Surplus ensures factory-grade terminal tension and zero contact fatigue.

3. Has the Fireye chassis been officially discontinued by the manufacturer?

Yes, Fireye officially discontinued the chassis line. Because active production has ceased, purchasing New Surplus inventory is the most reliable way to secure original replacement bases without undertaking costly panel re-engineering or rewiring.

4. What programmer and amplifier modules are compatible with this chassis?

The chassis is compatible with the complete Fireye Flame-Monitor family, including E110, E120, E210, and E211 programmer modules, alongside UV, AutoCheck IR, and Flame Rod amplifier cards.

5. Does the chassis include the programmer module, display, or outer cover?

No, the is supplied strictly as the base chassis frame containing the field terminal block connections and module backplane mounting interface. Display covers, programmers, and flame amplifiers must be transferred from your existing setup or ordered separately.
