Fisher 38B5786X092 Single-Acting Reverse Relay Assembly

Description

Key Technical Specifications

Emerson’s parts documentation lists 38B5786X092 alongside the other DVC6200/DVC6205 relay variants. The corresponding standard-bleed Housing B options are Relay C 38B5786X132, Relay A 38B5786X052, and Relay B 38B5786X092.

Do not substitute by part-number similarity alone. The X092 suffix identifies a specific combination of housing, bleed characteristic, and actuator action. Emerson separately specifies low-bleed and extreme-temperature versions with different part numbers.

Product Introduction

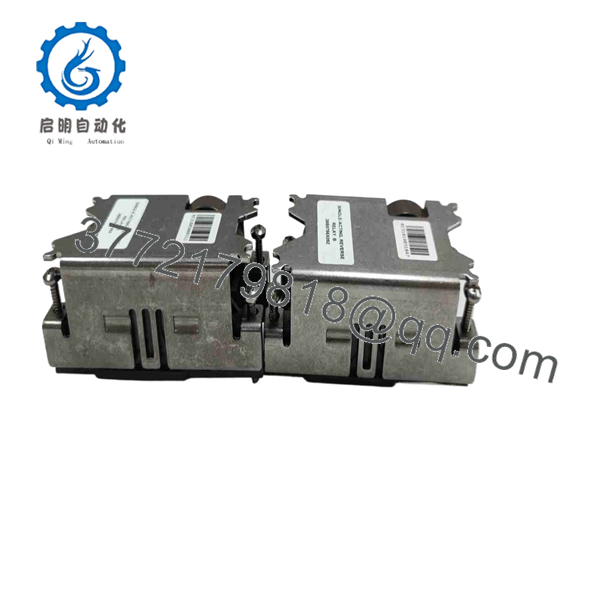

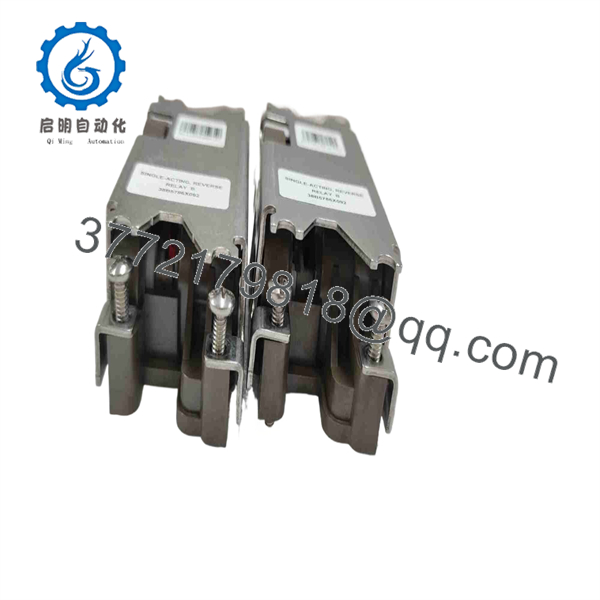

The Fisher 38B5786X092 is a pneumatic relay assembly for FIELDVUE DVC6200 and DVC6205 digital valve controllers. It is specifically the standard-bleed Relay B configuration for single-acting reverse applications using Housing B. Emerson lists the relay as an internal service component rather than a standalone electronic controller.

The critical replacement parameters are actuator action, relay type, housing, and bleed configuration. A visually similar DVC relay can have a different pneumatic response or actuator application. Match the complete part number before installation.

38B5786X092

38B5786X092

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Estimated time: 15–30 minutes

⚠️ Safety First: Place the control valve in its approved maintenance state. Isolate pneumatic supply and electrical/control-loop energy according to the site’s LOTO procedure. Confirm that stored pneumatic pressure has been safely released before opening the controller.

Tools Required:

• ESD wrist strap
• Appropriate screwdriver/hex tools
• Clean lint-free wipes
• Multimeter for associated electrical checks
• Pneumatic pressure gauge where required
• Smartphone/camera for documenting existing configuration

Data Backup:

1. Record the DVC controller model and serial number.
2. Photograph the existing relay assembly before removal.
3. Confirm whether the installed relay is marked 38B5786X092.
4. Record actuator action and air-supply configuration.
5. Save the DVC configuration using the applicable Fisher/Emerson configuration method where available.

Stage 2: Removing the Existing Relay

Estimated time: 20–30 minutes

1. Isolate the pneumatic supply.
2. Release trapped actuator/control pressure according to the approved procedure.
3. Isolate electrical/control-loop power where applicable.
4. Remove the DVC cover as specified by the service manual.
5. Photograph relay orientation and pneumatic connections.
6. Disconnect the relay connections carefully.
7. Remove the relay retaining hardware.
8. Lift the old relay assembly out without damaging seals or adjacent components.
9. Inspect the mating surface and pneumatic passages for contamination.

⚠️ Keep dirt and loose seal material out of the pneumatic passages. Contamination can cause sluggish valve response or leakage after reassembly.

Stage 3: Installing the 38B5786X092

Estimated time: 20–30 minutes

1. Verify the replacement label: 38B5786X092.
2. Confirm Relay B / single-acting reverse / standard bleed / Housing B.
3. Compare the replacement assembly with the removed unit.
4. Inspect the shroud and seal for damage.
5. Install the relay in the correct orientation.
6. Install the specified mounting hardware.
7. Reconnect pneumatic passages and seals.
8. Verify that no O-ring or sealing component is displaced.
9. Reinstall the DVC cover.
10. Restore pneumatic and electrical connections according to the service procedure.

Self-Checklist:

• Part number 38B5786X092 verified
• Relay B confirmed
• Single-acting reverse confirmed
• Standard bleed confirmed
• Housing B confirmed
• Seals correctly installed
• Mounting hardware secured
• Pneumatic connections checked

Stage 4: Power-On & Functional Testing

Estimated time: 30–60 minutes

1. Restore control power according to the approved procedure.
2. Slowly restore instrument-air supply.
3. Check for pneumatic leakage.
4. Verify DVC diagnostic status.
5. Establish communication with the DVC controller using the applicable configuration interface.
6. Command a controlled valve-position change.
7. Verify actuator movement in the correct direction.
8. Check the final control position against the command.
9. Confirm that the valve reaches its configured travel limits.
10. Check for excessive hunting, slow response, or pressure instability.
11. Run the applicable valve travel calibration procedure if required.
12. Record the replacement part number and test results.

⚠️ Do not judge the replacement relay solely by whether the valve moves. Verify correct direction, travel response, pneumatic stability, and DVC diagnostics.

Frequently Asked Questions (FAQ)

What is Fisher 38B5786X092?

It is a Relay B pneumatic relay assembly used in Fisher FIELDVUE DVC6200/DVC6205 digital valve controllers. Emerson specifies it for single-acting reverse applications, standard bleed, Housing B.

What does Relay B do?

The relay forms part of the DVC’s pneumatic output stage. It works with the controller’s electro-pneumatic system to provide the pneumatic output required to operate the associated valve actuator.

Is 38B5786X092 compatible with a GX actuator?

Do not assume it is. Emerson’s parts documentation distinguishes Housing A for GX actuators from Housing B for other actuator configurations. The 38B5786X092 is specifically listed under Housing B.

What is the difference between 38B5786X092 and 38B5786X112?

Both are listed as single-acting reverse Relay B assemblies, but 38B5786X092 is the standard-bleed Housing B version, while 38B5786X112 is the low-bleed Housing B version. They should not be substituted without checking the controller and actuator requirements.

Is 38B5786X092 discontinued?

Yes. A current industrial spare-parts record identifies 38B5786X092 as discontinued by the manufacturer. Secondary-market inventory continues to list unused and refurbished examples.

Can I use a used 38B5786X092?

Yes, provided its condition is acceptable and the exact configuration matches. For a used relay, inspect seals, pneumatic passages, mounting surfaces, and the relay mechanism. A functional valve travel test should follow installation.

What should procurement verify before ordering?

Specify the complete 38B5786X092 part number and confirm:

• DVC6200 or DVC6205 application
• Relay B
• Single-acting reverse
• Standard bleed
• Housing B
• Actual physical condition
• Seal condition
• Test status and warranty

Do not order simply by the description “DVC relay.” Emerson has multiple relay configurations with closely related part numbers.
