3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 8 isolated and independent |
| Input Range (each channel) | 0 to 20.4 mA dc |
| Accuracy | ±0.05% of span |
| Isolation | 600 V ac for 1 minute (channel-to-channel and channel-to-ground) |
| Communication | Redundant Fieldbus |
| Power Supply | 26 to 42 V dc (redundant) |
| Power Consumption | 14 W maximum |
| Heat Dissipation | 12 W maximum |
| Conversion / Update | Software-configurable (typical 0.1–1.0 s conversion) |
| Resolution | Up to 15 bits depending on conversion time |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Relative Humidity | 5 to 95% non-condensing |
| Mounting | 1×8 mounting structure or Field Enclosure (with/without Y-adapter) |
4. Product Introduction
The Foxboro FBM01 is an 8-channel 0–20 mA analog input interface module from the original I/A Series 100 Series Fieldbus Module family. Each channel accepts a 2-wire 4–20 mA transmitter or a self-powered 0–20 mA source and converts the signal for transmission over the redundant Fieldbus to the control processor.
Channels are galvanically isolated from each other and from ground. The module is designed for installation in the classic 1×8 mounting structures or field enclosures. While the 100 Series is legacy hardware, many plants still maintain these modules; the modern functional equivalent is the FBM201 (or FBM214b for HART). This unit is supplied as New Original / New Surplus stock for direct replacement.

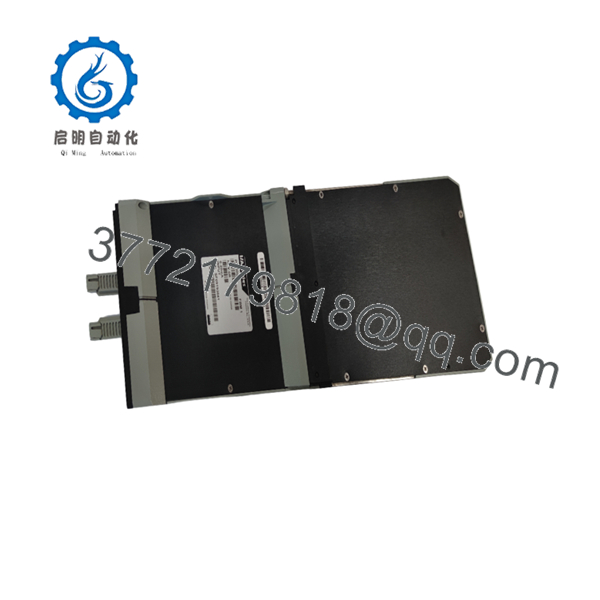

- FBM01

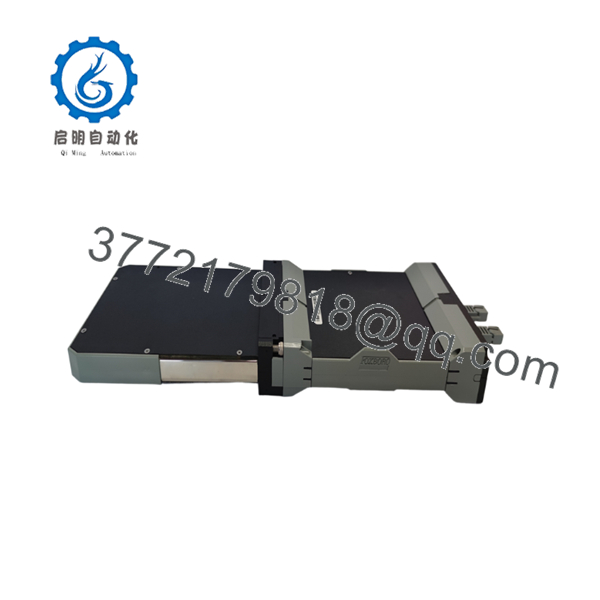

- FBM01
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Channel reads zero or open | Open field wiring or failed transmitter | ✅ High | Measure loop current at module terminals | Verify transmitter power and wiring first |
| All channels offline | Fieldbus communication failure or power issue | ✅ High | Check redundant Fieldbus LEDs and 26–42 V supply | Confirm both Fieldbus legs and power supplies |
| High reading / saturation | Shorted input or over-range transmitter | ✅ Medium | Measure actual current with multimeter | Check transmitter calibration and load |
| Intermittent channel errors | Loose termination block or poor contact | ✅ High | Reseat connector block; inspect pins | Clean and re-torque field terminations |
| Module not recognized by CP | Wrong address or failed module | ❌ Low | Verify rotary address switches and status LEDs | Swap with known-good module if available |
| Drift or accuracy issues | Aging A/D or temperature effect | ❌ Low | Compare against calibrated current source | Consider upgrade to FBM201 for improved performance |
If symptoms persist, capture module status LEDs, Fieldbus diagnostics from the control processor, and photos of the termination block, then contact technical support.
6. Frequently Asked Questions (FAQ)
Q: What is the modern replacement for the FBM01? A: For non-HART devices the functional equivalent is the FBM201 (8-channel isolated 0–20 mA input). For HART devices use FBM214b. Termination Assembly Adapters (TAA) allow reuse of existing field wiring.
Q: Are the channels isolated? A: Yes. Each of the eight channels is galvanically isolated from the others and from ground (600 V ac withstand).
Q: Does it support HART communication? A: No. The original FBM01 is analog-only. HART capability requires the later FBM214b or similar modules.
Q: Why is the price lower than a factory-new unit from Schneider Electric? A: This is New Original / New Surplus stock—genuine Foxboro parts that have never been installed in a running system. Units ship with a 1-year warranty after functional verification.
Q: Can I hot-swap the FBM01? A: In most I/A Series installations the module can be removed and inserted under power following proper procedures, but always follow site lockout and the specific mounting structure guidelines.
Q: What power does it require? A: Redundant 26–42 V dc. Maximum consumption is 14 W.
Q: What is the typical lead time and warranty? A: Units are normally in stock for same- or next-day shipment. All modules carry a 1-year warranty against defects in materials and workmanship.
