Key Technical Specifications
| Parameter | Specification / Value |
| Module Part Number | P0922VV (FBM216 Module) |
| Adapter Part Number | P0917XQ (Redundant Baseplate Adapter) |
| Input Channels | 8 group-isolated analog/HART input channels |
| Input Signal Types | Standard 4 to 20 mA or digital HART FSK superimposed |
| Redundancy Architecture | Dual-module configuration (Master/Tracker pair with P0917XQ adapter) |
| A/D Conversion Resolution | 15 bits via Sigma-Delta converter |
| Update Rate / Integration | 100 ms update rate / 500 ms integration time |
| Analog Accuracy | ±0.075% of full scale (includes nonlinearity) |
| Channel Isolation | 600 V AC galvanic isolation for 1 minute (field-to-ground/logic) |
| Power Dissipation | 7 W maximum power consumption (4 W heat dissipation) |
| Operating Temperature | −20 to +70 °C (−4 to +158 °F) |
| Environmental Rating | Class G3 harsh environment compliant (ISA Standard S71.04) |
Product Introduction & Supply Chain Strategy

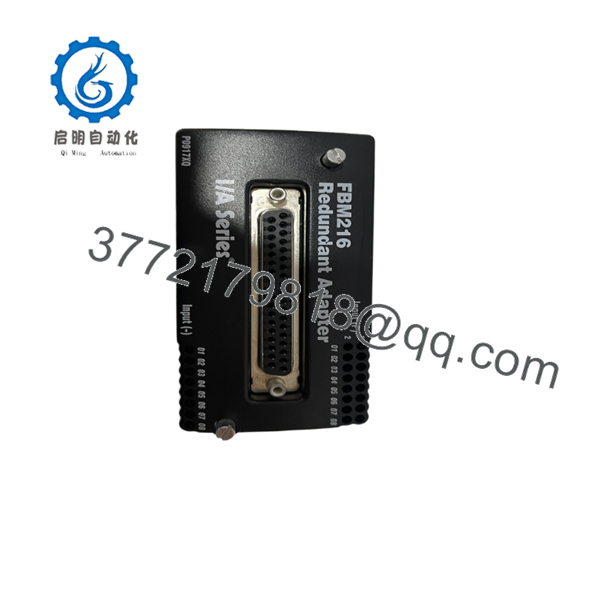

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The Foxboro FBM216 (P0922VV) operated with the P0917XQ redundant adapter provides high-availability 8-channel 4–20 mA and HART input processing, enabling automatic failover from Master to Tracker module without losing process control telemetry.
Maintaining FBM216 modules and P0917XQ adapters as New Surplus creates an essential strategic buffer against catastrophic loop failures in continuous process plants. Procurement of genuine unused parts avoids the severe risks associated with worn backplane connectors or drifted analog-to-digital converters common in secondhand components, protecting your Total Cost of Ownership (TCO).
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Execute full Lock-out/Tag-out (LOTO) on connected field instrumentation loops and baseplate power feeds.
- Put on a grounded ESD wrist strap before handling the replacement module or P0917XQ adapter.
- Take a photograph of the current baseplate slot configuration, adapter placement, and associated termination assembly wiring.
Stage 2: Removal
- Loosen the retention screws on the front faceplate of the faulty FBM216 module.
- Release the extraction levers and pull the module straight out along baseplate guide rails to avoid pin stress.
- If replacing the redundant adapter (P0917XQ), unscrew its mounting fasteners from the adjacent baseplate positions.
Stage 3: Installation (Clone & Seat)
- Verify part numbers match P0922VV for the module and for the redundant adapter.
- Mount the adapter across the designated adjacent baseplate connectors (e.g., slots 1–2, 3–4).
- Slide both FBM216 modules into the guide rails until backplane connectors mate firmly, then torque retention screws to 0.5 Nm.
Stage 4: Power-On & Testing
- Restore 24 V DC baseplate input power and confirm supply rail voltage remains within +5% / −10% tolerance.
- Verify module faceplate LEDs: confirm POWER displays solid green and FAIL is extinguished on both Master and Tracker cards.
- Check Foxboro Control Software (or IFDC) to verify HART digital pass-through, smooth channel tracking, and dual-bus communication stability.
- FBM216
Firmware/Software Versions & Upgrade Notes
- Recommended Versions: Fully supported on Foxboro I/A Series System Software V8.0 through V8.8 and Control Core Services / EcoStruxure Foxboro DCS V9.0 or later.
- Baseplate Compatibility: Requires standard Foxboro 200 Series 2-position, 4-position, or 8-position baseplates fitted with the redundant adapter.
- Upgrade Warnings:
- Ensure the adapter is clean and properly seated across adjacent slots prior to applying live power; improper seating will inhibit Master/Tracker synchronization.
- Do not downgrade system software below V8.0 while utilizing hardware, as earlier software driver revisions lack support for dedicated FSK modem handshakes on redundant channels.
Frequently Asked Questions (FAQ)
Why is this New Surplus / set priced lower than OEM list price?
We source genuine, unused surplus inventory directly from system integration reserves, plant expansions that were canceled, and global enterprise inventory. This allows us to deliver original OEM hardware at competitive prices without long manufacturing lead times.
Are these modules and adapters really unused?
Yes. They are 100% New Surplus / Original New stock. They have never been installed in active industrial process service, have pristine backplane connections, and remain in factory anti-static packaging. We maintain a zero-tolerance policy against refurbished or repaired parts.
Can I replace a single module in a redundant pair without interrupting process control?
Yes. The redundant pair operates in a Master/Tracker architecture. You can safely hot-swap a single failed module while the partner tracker card maintains uninterrupted 4–20 mA and HART signal inputs to the controller.
What is the purpose of the adapter?

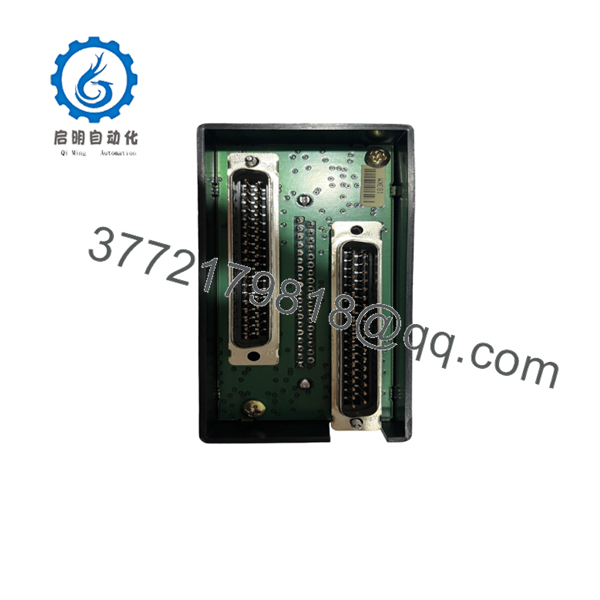

The redundant adapter attaches across two adjacent baseplate slots to combine field signals from a single termination assembly into both modules, enabling true hardware-level DCS input redundancy.
What warranty is provided with this New Surplus set?
Both the module and adapter include a full 1-year replacement warranty, backed by visual inspection, contact pin checks, and functional power-on self-test procedures prior to dispatch.
