Key Technical Specifications
| Parameter | Specification |
| Input Channels | 16 discrete channels, isolated in groups |
| Input Voltage Range | 15 to 60 V DC or 120 V AC/DC (determined by termination assembly) |
| Isolation | 1,500 V AC group-to-ground and group-to-bus isolation |
| Power Consumption | 1.5 W maximum from 24 V DC baseplate power bus |
| Input Filter Delay | Configurable software filtering (default 15 ms) |
| On-State Voltage | 15 to 60 V DC (120 V AC for high-voltage TA options) |
| Off-State Current | Less than 1.0 mA leakage limit |
| Module Placement | Plugs directly into 4-slot or 8-slot Foxboro DIN rail baseplates |
| Operating Temperature | −20 to +70°C (−4 to +158°F) |
| Relative Humidity | 5 to 95% non-condensing |
Product Introduction & Supply Chain Strategy
The Foxboro FBM242 P0916TA is a 16-channel discrete input module engineered for Foxboro I/A Series and EcoStruxure DCS platforms. It reads contact states from field switches, relay contacts, proximity sensors, and auxiliary motor contacts, transmitting real-time discrete logic to field control processors (FCP270/FCP280).
Procuring the FBM242 P0916TA as New Surplus provides an immediate strategic reserve for mature processing facilities facing extended OEM lead times or complete lifecycle discontinuation. This strategic buffer prevents unplanned plant downtime, lowers Total Cost of Ownership (TCO), and avoids the premature failure risks inherent in refurbished or second-hand electronics.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Execute Lock-Out/Tag-Out (LOTO) protocols on external field wetting voltage sources before touching field wiring.
- Put on a grounded ESD wrist strap before unbagging the replacement module.
- Record the physical baseplate position, channel layout, and letter designation of the original FBM242.
- Inspect the replacement unit to confirm exact part number alignment (P0916TA).
Stage 2: Removal
- Unfasten the top and bottom captive retaining screws on the front panel.
- Pull the module latches outward to disengage the backplane bus connection.
- Slide the card straight out along the guide rails to avoid bending pins on the baseplate backplane connector.
Stage 3: Installation (Clone & Seat)
- Inspect the baseplate slot connector for bent contacts or debris.
- Align the FBM242 module rails with the target baseplate slot.
- Press firmly until the module seats into the backplane power and communication connector.
- Tighten top and bottom retaining screws to 0.5 Nm (4.4 in-lb) to maintain grounding and physical security.
Stage 4: Power-On & Testing
- Restore 24 V DC power to the baseplate rail.
- Monitor front panel indicators: ensure the module state LED turns solid green (RUN) within 5 seconds.
- Confirm active HDLC communications via the yellow blinking LED.
- Toggle a test input in the field and verify channel state transition on the DCS operator graphics interface.

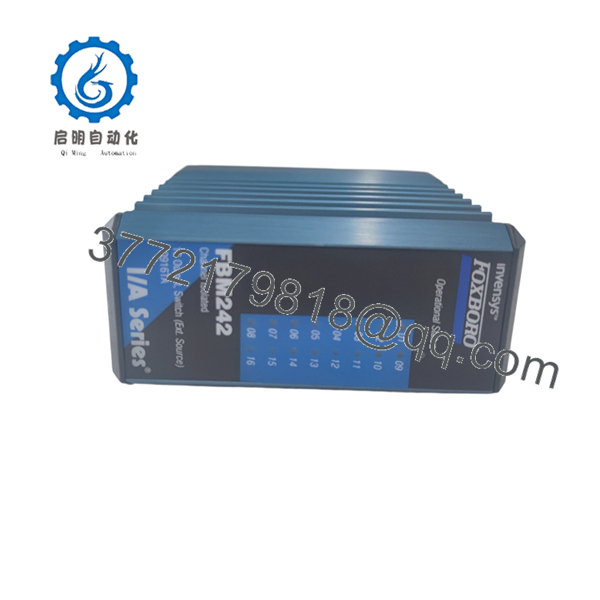

- FBM242 P0916TA
- FBM242 P0916TA
Firmware/Software Versions & Upgrade Notes
- Recommended Firmware: Revision 1.40 or higher is recommended for integration with EcoStruxure Foxboro DCS and Control Processor FCP270/FCP280 nodes.
- Backward Compatibility: Revisions 1.20+ support legacy I/A Series systems running v8.x software without requiring system reboot or database regeneration.
- Upgrade/Downgrade Warning: Updating module firmware while online requires toggling associated control blocks into out-of-service modes. Mismatched firmware levels across redundant Field Control Processors can break heartbeat synchronization and lead to improper contact state reporting. Always verify module firmware compatibility via System Manager before hot-swapping hardware.
Frequently Asked Questions (FAQ)
Why is this New Surplus module priced lower than OEM list but higher than refurbished units?
Our pricing reflects genuine New Surplus inventory sourced through global supply channels. OEM list prices reflect high factory overhead and lead times exceeding 20 weeks, while refurbished parts carry internal component fatigue. Our price gives you immediate availability and OEM-level reliability, reducing total cost of ownership without taking a reliability gamble.
Is this P0916TA module brand new and unused?
Yes. This is a Brand New Surplus unit. It is not pulled from a decommissioned plant, nor has it undergone secondary repairs. All modules are kept in ESD packaging and opened only for strict inbound quality inspection.
Why choose New Surplus over a refurbished ?
Refurbished I/O cards often feature aged optocouplers, dried-out internal capacitors, and thermal stress from years in continuous service. Saving a few hundred dollars on a refurbished card puts an entire process loop at risk. New Surplus units deliver a full 10 to 15-year operational lifecycle with zero prior operating hours.
Can I hot-swap the while the system is powered?
Yes, the supports hot-swapping on live Foxboro baseplates without shutting down the system 24 V DC power bus. However, external field input power wired through the termination assembly should be isolated during the swap to prevent transient arc faults.
Does the retain local software configurations?
No, configuration data is not stored locally inside non-volatile memory on the . When powered up, the master Field Control Processor automatically recognizes the hardware module, configures channel filter times, and starts data polling within seconds.
What quality checks are performed on this unit before shipment?
Every undergoes our 5-step SOP quality process: serial number anti-counterfeit checks, baseplate power-on self-test, communication handshake simulation, group isolation electrical verification, and final ESD-safe packaging sign-off.
What warranty is included with this module?
We back this New Surplus with a 1-year warranty against operational defects, offering double the standard coverage period typical of secondary market vendors.
