Key Technical Specifications
| Parameter | Specification |
| Input Channels | 16 discrete voltage sensing channels, individually isolated |
| Input Voltage Range | 0 to 60 V DC (0 to 10 V DC Off-state, 15 to 60 V DC On-state) |
| Input Impedance | 10 k\Omega minimum per channel |
| Filter Delay | Configurable software filtering (default 15 ms, range 5 to 100 ms) |
| Channel Isolation | 1,500 V AC channel-to-channel and channel-to-bus |
| Power Consumption | 1.8 W maximum from 24 V DC baseplate bus |
| Status Indicators | 16 individual green channel LEDs, 1 red/green module status LED |
| Module Placement | Plugs directly into standard 4-slot or 8-slot Foxboro DIN rail baseplates |
| Operating Temperature | −20 to +70°C (−4 to +158°F) |
| Relative Humidity | 5 to 95% non-condensing |
Product Introduction & Supply Chain Strategy
The Foxboro FBM207 P0916BT is a 16-channel discrete voltage monitor module engineered for Foxboro I/A Series and EcoStruxure DCS platforms. It reads field contact states across 0 to 60 V DC ranges, providing real-time status monitoring for circuit breakers, motor starters, and field limit switches to Field Control Processors (FCP270/FCP280).
Maintaining the FBM207 P0916BT as New Surplus guarantees immediate stock availability for critical safety interlocks and discrete monitoring loops where factory lead times exceed 18 weeks. Storing an unused spare on-site prevents unscheduled plant outages while eliminating the high failure rates and internal component degradation typical of second-hand units.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- De-energize external field wetting voltage supplies and follow Lock-Out/Tag-Out (LOTO) protocols on termination assemblies.
- Put on a grounded ESD wrist strap before opening the anti-static packaging.
- Record slot positioning, channel wiring maps, and letter code assignments of the original card.
- Verify replacement module part number matches P0916BT.
Stage 2: Removal
- Loosen top and bottom captive screws on the module front panel.
- Disengage extraction handles outward to release the internal connector from the backplane bus.
- Pull the module straight out along the guide tracks to prevent damaging pin connectors on the baseplate slot.
Stage 3: Installation (Clone & Seat)
- Inspect the baseplate slot connector for debris or pin misalignment.
- Align the replacement FBM207 P0916BT module with the slot guide rails.
- Press firmly until the module seats fully into the backplane power and communication connector.
- Torque front panel screws to 0.5 Nm (4.4 in-lb) to complete chassis grounding.
Stage 4: Power-On & Testing
- Restore 24 V DC baseplate system power.
- Monitor front panel indicators: verify the module status LED turns solid green (RUN) within 5 seconds.
- Apply 24 V DC test voltage across individual field input terminals and confirm channel LED lighting.
- Verify real-time signal status toggling on the Foxboro Control Software operator graphics interface.
- P0916BT

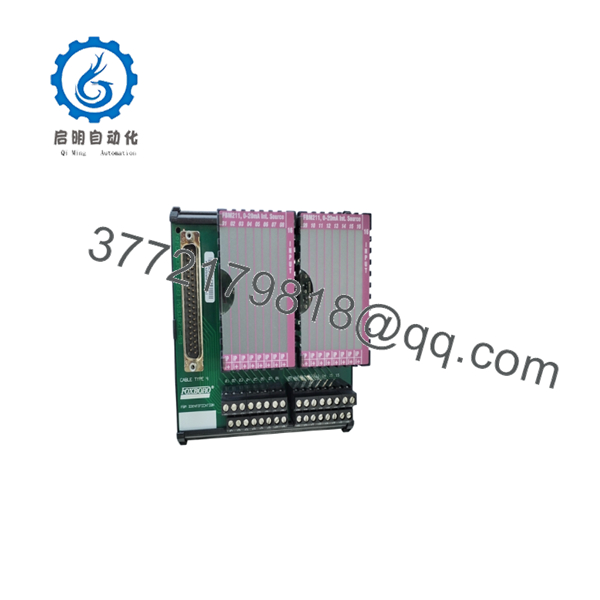

- P0916BT
Firmware/Software Versions & Upgrade Notes
- Recommended Firmware: Revision 1.41 or higher is recommended for integration with EcoStruxure Foxboro DCS and Control Processor FCP270/FCP280 nodes.
- Backward Compatibility: Revisions 1.25+ support legacy I/A Series v8.x software without requiring database rebuilds.
- Upgrade/Downgrade Warning: Modifying module firmware during live operations requires taking associated control blocks out of service. Mismatched firmware levels across redundant Field Control Processors can cause communication timeouts and drop contact status inputs. Always confirm firmware compatibility in System Manager before performing a hardware swap.
Frequently Asked Questions (FAQ)
Why is this New Surplus FBM207 priced below OEM list but higher than refurbished modules?
Our pricing reflects verified, original New Surplus inventory sourced from global channel reserves. OEM list pricing includes factory queues and corporate markups, while refurbished modules carry high risks of internal component fatigue. Our price provides immediate delivery and factory-grade reliability, offering optimal Total Cost of Ownership (TCO).
Is this Foxboro FBM207 module brand new and unused?
Yes. This is a Brand New Surplus unit. It has never been deployed in an operating facility, nor has it undergone secondary repairs. All modules remain in original protective anti-static packaging and are opened only for inbound Quality Control verification.
What are the risks of using a refurbished FBM207 module?
Discrete input cards feature internal optocouplers and signal-conditioning resistors that undergo continuous electrical stress. Refurbished units often suffer from degraded optocoupler gains and aged solder joints that fail under vibration. A failed status card can report false switch states, causing incorrect interlock trips.
Can I hot-swap the while the baseplate is powered?
Yes, the supports hot-swapping on live Foxboro baseplates without shutting down 24 V DC system power. However, external field sensing power running through termination cables should be isolated during card replacement to prevent transient short circuits.
Does the require local configuration parameter setup?
No non-volatile software parameterization is stored locally on the module. When inserted into an active baseplate, the master Field Control Processor automatically recognizes the hardware ID, downloads software filter settings, and starts input scanning.
What quality control checks are performed on this module prior to shipment?
Every passes a 5-step SOP quality inspection: anti-counterfeit serial verification, baseplate power-on self-test, 16-channel voltage input simulation, 1,500 V AC channel isolation verification, and final ESD-safe packaging sign-off.
What warranty is provided with this unit?
We back this New Surplus module with a 2-year functional warranty against hardware defects, providing double the standard 12-month coverage period offered by secondary market vendors.
