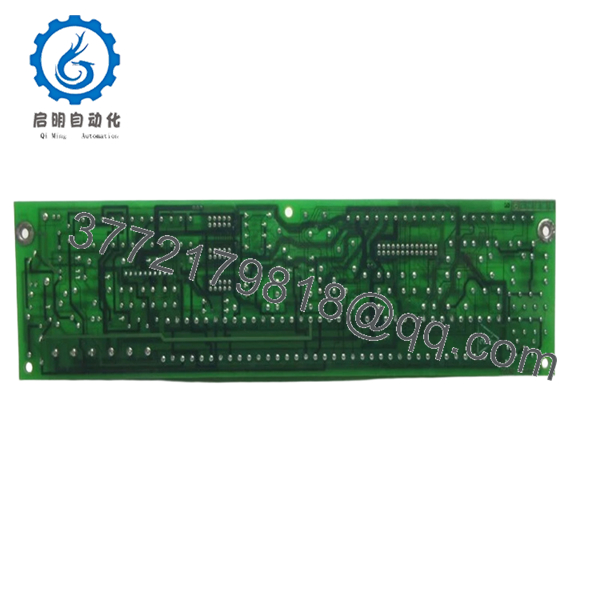

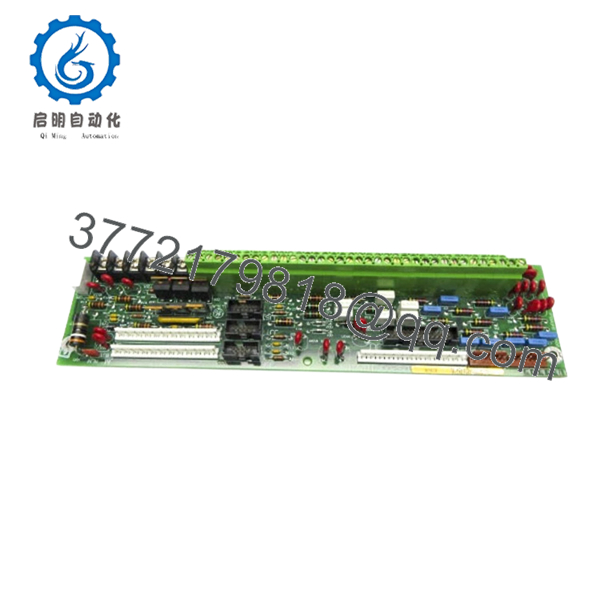

GE DS200PTBAG1BAA PTBA Terminal Board

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The GE DS200PTBAG1BAA serves as the critical bridge between high-voltage power generation hardware and the sensitive low-voltage logic of the Mark V Speedtronic system. It scales and isolates signals from Potential Transformers (PTs) and Current Transformers (CTs), providing the control system with the data necessary for synchronization, power monitoring, and generator protection.

Strategically, the PTBA board is a “high-consequence” component. A failure here often results in a “Generator Protection” trip, leading to immediate loss of production. Because this board handles high-energy inputs, refurbished units are prone to carbon tracking or weakened insulation. Choosing New Surplus ensures that the isolation barriers are intact and the board has zero hours of thermal stress, significantly reducing the Total Cost of Ownership (TCO) by preventing catastrophic electrical faults within the control cabinet.

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

DANGER: Ensure all PT and CT circuits are shorted or isolated before touching the board. Open CT secondary circuits can generate lethal voltages. Use an ESD wrist strap and verify that all terminal markings match your site-specific wiring schedule.

Stage 2: Removal

Label every wire connected to the terminal blocks. Loosen the screws and remove the wires carefully. Once the wiring is clear, remove the mounting screws that secure the DS200PTBAG1BAA to the standoff insulators in the cabinet.

Stage 3: Installation (Clone & Seat)

Mount the new DS200PTBAG1BAA onto the standoffs. If the board uses jumpers for voltage scaling (e.g., 115 V vs 230 V PT inputs), you must replicate the settings from the old board exactly. Reconnect the wires according to your labels, ensuring high-torque connections for CT circuits.

Stage 4: Power-On & Testing

After energizing, use a calibrated multimeter to check the voltages at the board’s test points. Verify in the Mark V <I> or <HMI> that the generator frequency and voltage readings match the local switchgear meters.

6. Firmware/Software Versions & Upgrade Notes

• Revision Level: The “G1BAA” suffix is highly specific. The “AA” denotes a specific revision that may include hardware hardening or component updates. Always match the full alphanumeric string.
• Compatibility: This board is a passive interface and does not require a software download, but the scaling factors in the Mark V IO.ASG or configuration files must match the hardware jumper settings.
• Hardware Warning: Ensure the replacement board has the same transformer ratios as the unit being replaced to avoid scaling errors in the turbine control logic.

DS200PTBAG1BAA

7. Frequently Asked Questions (FAQ)

What does the PTBA board actually do?

The PTBA (Power Transformer Board) takes high-level AC signals from the generator and steps them down to logic-level signals that the Mark V processors can understand. It is essential for calculating megawatts, megavars, and grid synchronization.

Can I use a DS200PTBAG1A in place of a G1BAA?

While they belong to the same family, the “BAA” revision often includes specific component upgrades or noise-filtering improvements. We recommend sticking to the exact revision number to ensure your system’s stability and to avoid protocol mismatches in diagnostic reporting.

How do you verify the condition of this surplus board?

Our New Surplus units undergo a strict physical inspection. We check for factory conformal coating integrity, verify that no terminal screws show wear from previous installation, and ensure the high-voltage isolation transformers show no signs of potting degradation or heat stress.

Is this board “Hot Swappable”?

Absolutely not. Because this board interfaces with high-voltage PT and CT circuits, swapping it while the generator is online is extremely dangerous to both the technician and the equipment. A full system shutdown is required for replacement.

Does this board come with mounting hardware?

Typically, the board is sold as the PCB assembly only. You should reuse the existing standoff insulators and screws from your cabinet, provided they are in good condition and free of arc-tracking.
