3. Key Technical Specifications
| Parameter | Specification |
| Input Voltage | 125 V DC (Battery/Station Power) |
| Onboard Power Rails | +5 V, +/-15 V, +24 V DC Outputs |
| Logic Interface | Connects to STCA and TCEA boards |
| Fusing | Onboard replaceable fuses for rail protection |
| Connection | Plug-in ribbon headers and terminal blocks |
| Isolation | Galvanic isolation between primary and secondary rails |
| Dimensions | Standard GE Mark V Full-Height Form Factor |
| Protection | Over-voltage and short-circuit protection per rail |
4. Product Introduction & Supply Chain Strategy
The GE DS200SPCBG1A serves as the primary power distribution hub within the Speedtronic Mark V control turbine system. It is responsible for converting the plant’s 125 V DC station power into the regulated, low-voltage DC rails required by the system’s processors and I/O modules. Without a functional SPCB, the entire control core loses its ability to process logic, resulting in an immediate and total system blackout.
In the current industrial landscape, the Mark V is a mature platform where “New Surplus” components have become the gold standard for reliability. Refurbished SPCB boards are notoriously prone to failure because their electrolytic capacitors and power transistors have already endured decades of heat-induced degradation. A failed refurbished power board can “crowbar” and send unregulated voltage into the backplane, potentially destroying thousands of dollars in downstream processor cards. By investing in New Surplus, you secure original OEM dielectric integrity and fresh components, mitigating the risk of high-consequence unplanned downtime.
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
Ensure the turbine is in a cold shutdown state. Open the 125 V DC supply breakers for the control cabinet and verify zero energy using a multimeter. Attach a grounded ESD wrist strap. Use a camera to record the wiring on the terminal blocks and the orientation of all ribbon cables.
Stage 2: Removal
Carefully disconnect the ribbon cables by depressing the ejector tabs. Unscrew the field wiring from the terminal blocks. Loosen the nylon standoffs or mounting screws and extract the board from the chassis. Inspect the cabinet wiring for any brittle insulation or signs of overheating.
Stage 3: Installation (Clone & Seat)
Verify that any onboard jumpers on the new DS200SPCBG1A match the original board settings. Secure the board onto its standoffs. Reattach the ribbon cables, ensuring they are fully seated and locked. Reconnect the field wiring to the terminal blocks according to your documented photos.
Stage 4: Power-On & Testing
Before applying power, check for ground faults on the field wiring. Apply 125 V DC power and immediately verify the status LEDs for the +5, +/-15, and +24 V rails. If any “FAULT” or “LOW VOLT” indicators appear, de-energize immediately. Once the rails are confirmed stable, proceed with the system boot sequence.
- DS200SPCBG1A

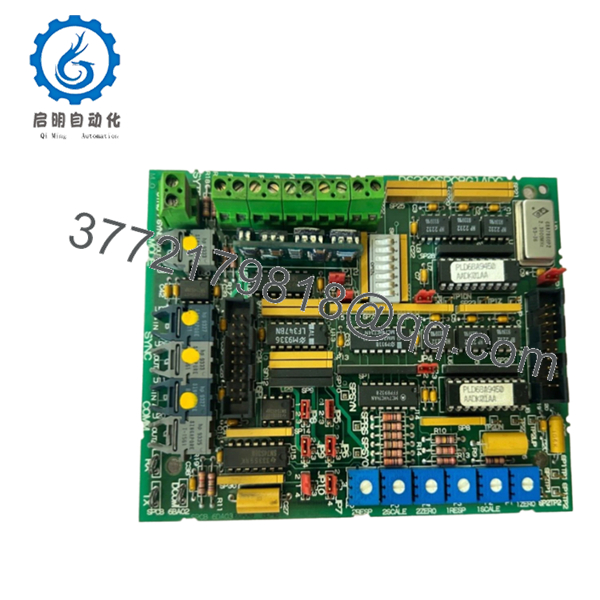

- DS200SPCBG1A
6. Firmware/Software Versions & Upgrade Notes
As a power supply and conditioning board, the DS200SPCBG1A is largely hardware-driven; however, the “G1A” revision indicates the initial high-reliability design for the SPCB series.
- Version Matching: Ensure that the SPCB revision is compatible with your specific STCA (Source Terminal Card) version.
- Jumper Logic: Some G1A boards utilize jumpers to define the source of the 125 V DC input (Internal vs. External). Incorrect jumper placement will result in a “Power Loss” alarm at the HMI.
- Warning: Do not attempt to replace onboard fuses with non-OEM rated equivalents. Using a higher-amperage fuse to “stop” a nuisance trip can lead to a board fire.
7. Frequently Asked Questions (FAQ)
Does this board include the fuses?
Yes, our New Surplus DS200SPCBG1A boards ship with a full set of original, factory-installed fuses. We recommend keeping a spare fuse kit on-site as part of your “Buffer Stock” for routine maintenance.
Why shouldn’t I buy a refurbished SPCB for half the price?
The SPCB is a power conversion board. Power components (capacitors, diodes, and voltage regulators) have finite lifespans influenced by heat. A refurbished board is a used board with aged power components that are far more likely to fail under the stress of a restart than a New Surplus unit.
Can I use this in a Mark V LM (Aeroderivative) system?
Yes, the SPCB is a standard component across the Mark V platform, including both heavy-duty and aeroderivative configurations, provided the part number matches your documentation.
How is this board protected during shipping?
We use heavy-duty, moisture-barrier ESD bags and double-walled boxes. Given the weight of the transformers on this board, we also utilize custom foam inserts to prevent the PCB from flexing during transit.
Is this board still supported by GE?
The Mark V series is in the “Legacy” or “Obsolete” phase of its lifecycle. GE’s primary support strategy is a full system migration to Mark VIe. Our New Surplus inventory allows you to extend the life of your existing Mark V assets without the multi-million dollar cost of a full control system upgrade.
