GE DS200TCCBG1B Mark V Extended Analog I/O Board

3. Key Technical Specifications

4. Product Introduction

The GE DS200TCCBG1B is a TC2000 Extended Analog I/O Board designed for GE Mark V Speedtronic turbine control systems. The board handles analog signal scaling, conditioning, and processing for turbine monitoring applications including RTD inputs, 4–20 mA signals, and process instrumentation integration.

In operating power plants, this board is commonly used in gas turbine and steam turbine cabinets where legacy Mark V infrastructure remains in service. Engineers often retain the original DS200TCCBG1B revision during maintenance outages to avoid analog scaling inconsistencies and configuration issues introduced by mismatched board revisions.

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10 Minutes)

⚠️ Safety First

• Notify operations before shutdown.
• Place the turbine and associated systems into a safe maintenance state.
• Apply lock out/tag out procedures.
• Disconnect cabinet power and wait at least 5 minutes for discharge.

⚠️ Mark V cabinets can retain stored voltage on internal rails even after shutdown. Always verify with a meter before touching the rack.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone for reference photos
• Flashlight for cabinet inspection

Data Backup

1. Export current control configuration and analog scaling data.
2. Photograph all connectors and cable routing.
3. Record jumper positions:
   • JP1
   • JP2
   • JP3
4. Document cabinet slot location and associated terminal board references.

❗ This is the step technicians rush through during outages. Then six hours later they’re trying to remember which ribbon cable went into JCC and which went into JDD.

Stage 2: Removing the Old Module (Estimated Time: 5–10 Minutes)

1. Remove the cabinet cover or access panel.
2. Label every connector before removal.
3. Disconnect ribbon cables carefully.
4. Remove retaining hardware.
5. Pull the board straight outward without twisting.

⚠️ Do not rock the PCB side to side. Older Mark V backplane connectors are fragile, and bent pins create intermittent analog faults that are difficult to diagnose.

1. Inspect:
   • Connector pins
   • Ribbon cable condition
   • Dust accumulation
   • Heat discoloration
   • Oxidation on edge contacts

Field Reminder

Keep the old board nearby until startup is complete. I’ve seen engineers discover one undocumented jumper change after hours of unnecessary troubleshooting.

Stage 3: Installing the New Module (Estimated Time: 10 Minutes)

1. Wear a grounded ESD strap.
2. Verify the exact model number:
   • DS200TCCBG1B
3. Confirm board revision and connector layout.

Configuration Clone (Crucial)

1. Replicate all jumper settings exactly.
2. Verify connector orientation for:
   • JCC
   • JDD
   • JHH
   • JII
3. Confirm shield grounding practices match the original installation.

❗ This is the most common rookie mistake. One incorrect jumper position can shift analog scaling values and create false process readings across the HMI.

1. Insert the board evenly into the rack guides.
2. Ensure the board seats completely.
3. Tighten retaining screws evenly.
4. Reconnect cables carefully.

Self-Checklist

• Model verified
• Jumpers copied correctly
• Ribbon cables secure
• Shielding grounded properly
• Board fully seated

Stage 4: Power-On & Testing (Estimated Time: 15 Minutes)

Pre-Power Check

1. Verify no shorts on the 24 V DC control rail.
2. Check cabinet grounding continuity.
3. Inspect all ribbon cable seating.

Power-On Steps

1. Energize the control rack only.
2. Observe startup LED behavior.
3. Verify communication with the Mark V processor.
4. Confirm analog values appear correctly in diagnostics.
5. Perform dry-run I/O simulation before returning field devices to service.

⚠️ If analog readings suddenly peg high or low after replacement, stop immediately and verify jumper positions and ribbon cable orientation before replacing additional hardware.

SOP Testing Performed Before Shipment

Each DS200TCCBG1B unit undergoes:

1. Inbound Inspection & Traceability
   • OEM label verification
   • Serial number inspection
   • Corrosion and rework inspection
   • Connector integrity checks
2. Live Functional Testing
   • Tested on a genuine GE Mark V rack
   • Analog signal simulation
   • Communication handshake verification
   • Continuous thermal load test exceeding 24 hours
3. Electrical Parameter Testing
   • 500 V Megger insulation test (>10 MΩ)
   • Ground continuity verification
   • Power rail stability testing
4. Firmware & Configuration Verification
   • PROM inspection
   • Revision documentation
   • Jumper configuration photo archive
5. Final QC & Packaging
   • Anti-static ESD bagging
   • Bubble wrap and reinforced export carton
   • QC inspection label with date and technician sign-off

Test videos and inspection photos are available upon request.

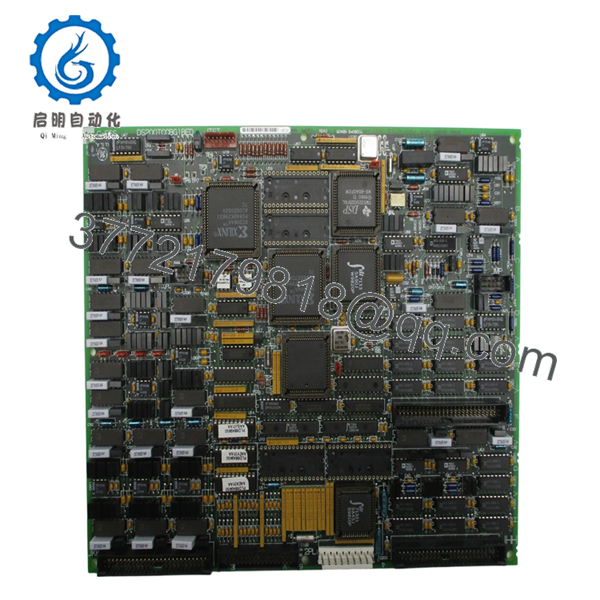

DS200TCCBG1B

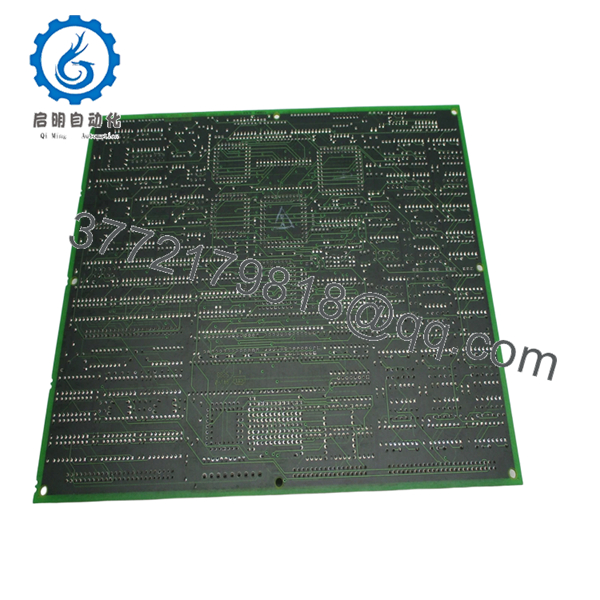

DS200TCCBG1B

6. Frequently Asked Questions (FAQ)

Q1: Can the DS200TCCBG1B be hot-swapped?

No.

The Mark V architecture was not designed for casual hot-swapping of analog boards. Removing this board under power risks backplane damage and corrupted analog readings throughout the control system.

Shut the cabinet down properly first.

Q2: Is the DS200TCCBG1B obsolete?

Yes. The Mark V platform is legacy equipment and no longer in active OEM production. Most inventory today comes from surplus industrial stock or tested refurbishment channels.

Many plants still maintain Mark V systems because a full migration to newer turbine controls requires outage planning, logic validation, and significant commissioning effort.

Q3: Is this board genuinely new?

This listing refers to New Original / New Surplus inventory unless specifically marked refurbished.

That typically means:

• No previous field installation
• OEM-manufactured hardware
• Stored as industrial spare inventory

Due to age, external packaging may show shelf wear. Every board is visually inspected before shipment for oxidation, connector damage, and storage-related deterioration.

Q4: What does this board actually do inside the Mark V system?

The DS200TCCBG1B processes and conditions analog signals used by the turbine control system. That includes:

• RTD inputs
• 4–20 mA process signals
• Analog scaling
• Signal conditioning functions

It works closely with terminal boards and the Mark V core processing architecture.

Q5: What installation mistake causes the most downtime?

Incorrect jumper replication.

I’ve seen technicians replace the board physically, power the cabinet back up, then spend half a shift troubleshooting unstable analog readings because JP2 was moved one position incorrectly.

Take photos before removal. Seriously.

Q6: Will replacing this board erase my turbine logic?

Normally no. The DS200TCCBG1B primarily handles analog I/O processing rather than storing main sequencing logic.

Still, always back up the system first. I’ve seen sites lose undocumented calibration adjustments because nobody exported the configuration beforehand.

Q7: Why are Mark V analog boards still expensive?

Because the downtime cost is usually much higher than the hardware cost.

If a turbine trips and the plant is waiting on one analog I/O board, production losses can exceed the price of the spare module within hours. That reality keeps demand high for verified working inventory.

Keep these checks in mind and you’ll save yourself 90% of typical rework time.
