Key Technical Specifications
- Part Number: DS3800HAFA1B1D
- Manufacturer: GE
- Series: Mark IV Speedtronic
- Product Type: Auxiliary Function Card
- Primary Function: Analog filter/amplifier or auxiliary control function in turbine systems
- Jumpers: 11
- Trim Potentiometers: 4
- Connectors: 20-pin connector, 34-pin connector
- Application: GE Mark IV turbine control system
- Board Type: Legacy Speedtronic module
Product Introduction

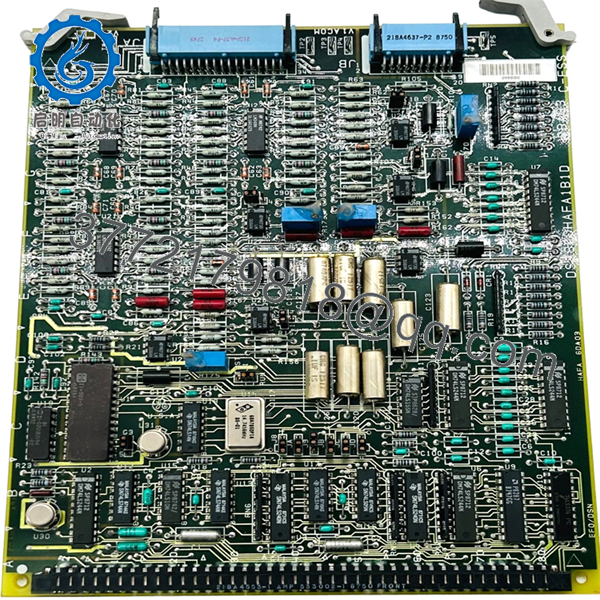

GE DS3800HAFA1B1D is a Mark IV Speedtronic auxiliary function card used in turbine control systems. The board includes 11 jumpers, 4 trim potentiometers, and 20-pin plus 34-pin connectors, so the physical setup matters during replacement.
Buyers usually source this part when they need an exact Mark IV match and want to avoid wiring or configuration changes. On legacy GE systems, the jumper and connector layout is often the difference between a clean swap and a long troubleshooting session.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Analog signal looks unstable | Trim pot drift or board fault | ✅ High | Measure input/output levels with a meter and compare to site baseline | Check adjustment settings before replacing the board |
| No response from connected circuit | Connector issue or missing backplane contact | ✅ High | Inspect 20-pin and 34-pin connectors for bent pins or poor seating | Reseat and verify continuity first |
| System behavior changes after swap | Jumper misconfiguration | ✅ High | Photograph and copy all 11 jumper positions from the old board | Mirror the original jumper layout exactly |
| Board works cold, fails warm | Aging components or heat stress | ✅ Medium | Run the board under load and monitor signal drift over time | Replace only after confirming thermal stability |
| Control loop out of calibration | Wrong trim setting | ✅ High | Record the original trim positions before removal | Restore original settings and recalibrate if needed |
| Other cards in the rack fail too | Upstream rack or power issue | ❌ Low | Check rack supply voltage and adjacent module status | Verify rack power before blaming this board |
Contact technical support with photos, diagnostic logs, and the exact jumper and trim-pot positions if you are still stuck.
- DS3800HAFA1B1D
Frequently Asked Questions
Q: What is the GE DS3800HAFA1B1D used for?
A: It is an auxiliary function card for GE Mark IV Speedtronic turbine control systems. In practice, it handles a specific analog or support function inside the control rack.
Q: Is this the same as other DS3800HAFA variants?
A: Not always. The full suffix matters, because jumper layout, connector details, and circuit revision can differ. Match the exact part number on the old card.
Q: What should I check before installing it?
A: Verify the jumper positions, trim-pot settings, connector condition, and rack compatibility. I would also document the old board before pulling it out.
Q: Is it hot-swappable?
A: No. Kill power first. Legacy Mark IV hardware should be treated as powered-down service equipment, not a live swap part.
Q: Why is this part often sold as surplus?
A: Mark IV systems are legacy GE hardware, so factory-new stock is limited. That is why most units in the market are surplus, unused, or tested used.
Q: Why does the price vary so much?
A: Condition, testing, and warranty drive the price. A board with documented QC and clean cosmetic condition usually costs more than a pulled part with no test record.
Q: What is the most common replacement mistake?
A: Jumpers. I have seen techs install the right board with the wrong jumper setup and spend hours chasing a fault that never existed in the card itself.
