GE DS3800HFPB1F1E Mark IV Processor Board

Description

3. Key Technical Specifications

Parameter	Value
Model Number	DS3800HFPB1F1E
Manufacturer	GE General Electric
Series	Speedtronic Mark IV DS3800
Product Type	Processor Board
Application	Gas and Steam Turbine Control
System Compatibility	GE Mark IV Turbine Control Racks
Connector Type	40-pin male edge connector
Status Indicators	8 onboard red LEDs
Configuration Method	Hardware jumpers
Jumper Count	4 configurable jumpers
PCB Coating	Industrial conformal coating
Mounting Method	Rack-mounted PCB
Operating Environment	Industrial control cabinet
Operating Temperature	0 °C to +50 °C typical
Storage Temperature	−40 °C to +85 °C
Communication Interface	Proprietary GE Mark IV backplane
Product Status	Legacy / Obsolete Hardware
Typical Use Case	Turbine sequencing and protection logic



4. Product Introduction

The GE DS3800HFPB1F1E is a processor board used in GE Speedtronic Mark IV turbine control systems for gas and steam turbine applications. It performs signal processing and control functions within the Mark IV rack architecture.

In field maintenance environments, this board is commonly replaced during lifecycle extension projects where aging processor hardware begins showing intermittent faults, watchdog alarms, or unstable control behavior. Most facilities maintaining Mark IV systems prefer direct hardware replacement to avoid extended outage windows and migration engineering costs.



5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10 Minutes)

⚠️ Safety First

1. Notify operations before taking the turbine control cabinet offline.
2. Verify the turbine is in a safe shutdown state.
3. Apply lockout/tagout procedures to all control cabinet power sources.
4. Wait at least 5 minutes for capacitor discharge before touching hardware.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone for photos
• Flashlight for cabinet inspection

Data Backup

1. Backup all available Mark IV configuration files.
2. Record rack location and slot assignment.
3. Photograph:
   • Wiring layout
   • Jumper positions
   • Connector orientation
   • LED status before shutdown

❗This matters more than people realize. I have watched technicians replace a Mark IV board at 2 AM, then spend six hours figuring out which jumper position they forgot to document.

Stage 2: Removing the Old Module (Estimated Time: 5–10 Minutes)

1. Open the cabinet front access panel.
2. Label all connected wiring and ribbon cables.
3. Disconnect connectors carefully without twisting the PCB.
4. Release rack retaining hardware.
5. Pull the board straight outward to protect edge connectors.
6. Inspect the rack for:
   • Bent connector pins
   • Dust accumulation
   • Oxidation
   • Burn marks near power rails

⚠️ Note

Do not throw away the old board until startup testing is complete. Old boards are often the fastest way to verify jumper settings during troubleshooting.

Stage 3: Installing the New Module (Estimated Time: 10 Minutes)

1. Attach the grounded ESD strap before handling the PCB.
2. Verify the exact model number: DS3800HFPB1F1E.
3. Inspect the replacement board for:
   • Cracked solder joints
   • Loose components
   • Shipping damage
   • Corrosion around connector areas

Configuration Clone (Crucial)

1. Replicate all jumper settings exactly from the original board.
2. Verify connector orientation carefully.
3. Confirm rack slot location before insertion.

❗This is one of the most common mistakes on legacy GE systems. Somebody installs the right board in the wrong slot or misses a jumper setting, and suddenly the control rack starts throwing communication or watchdog faults.

I have seen an outage delayed nearly a full shift because a replacement board shipped with factory-default jumper settings instead of the original plant configuration.

1. Insert the board evenly into the rack guides.
2. Press firmly until fully seated.
3. Tighten retention hardware evenly.
4. Reconnect all wiring and edge connectors.

Self-Checklist

• Jumpers match original
• Connectors seated correctly
• Rack tabs locked
• No loose wiring
• PCB fully inserted

Stage 4: Power-On & Testing (Estimated Time: 10–15 Minutes)

Pre-Power Check

1. Verify no shorts exist on the 24 V DC control rail.
2. Confirm cabinet grounding continuity using a multimeter.
3. Inspect rack connector engagement one final time.

Power-On Steps

1. Energize the Mark IV rack only.
2. Observe onboard LEDs during startup.
3. Verify:
   • Normal initialization sequence
   • No fault LEDs
   • Stable processor communication
4. Connect the engineering workstation.
5. Confirm:
   • Rack recognition
   • Processor communication
   • Alarm-free startup
   • Stable scan operation
6. Perform dry-run I/O testing before enabling field devices.

⚠️ Troubleshooting Note

• Solid fault LEDs often indicate:
  • Incorrect jumper configuration
  • Firmware mismatch
  • Improper rack seating
• Intermittent communication faults usually point to:
  • Oxidized backplane connectors
  • Loose edge connections
  • Aging cabinet power supplies

I have seen perfectly good replacement boards blamed for failures caused by dirty Mark IV backplanes. Clean the rack before assuming the board is defective.

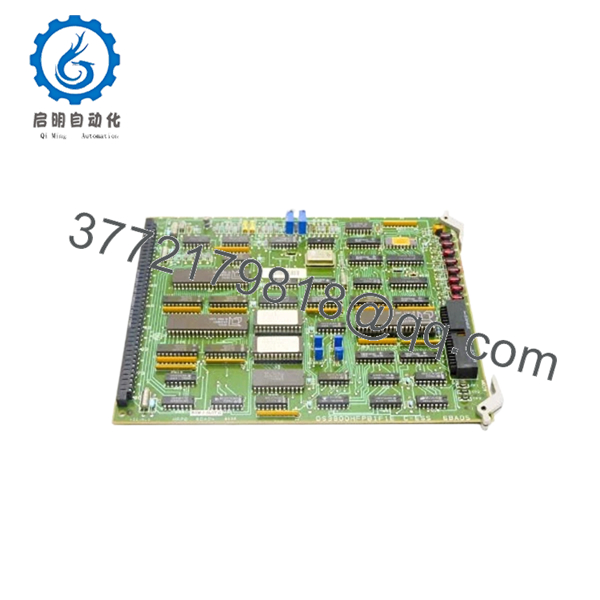

DS3800HFPB1F1E

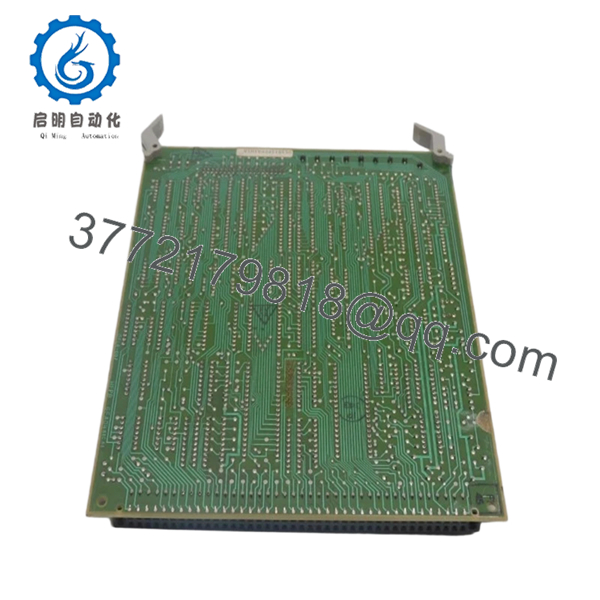

DS3800HFPB1F1E



6. Frequently Asked Questions (FAQ)

Q1: Can the DS3800HFPB1F1E be hot-swapped?

No. This board was not designed for live insertion.

Removing or inserting the board under power can damage the Mark IV backplane or trigger processor communication faults across the rack. Shut down cabinet power first.

Q2: Is the DS3800HFPB1F1E obsolete?

Yes. The GE Mark IV platform is legacy hardware and has been obsolete for years. Most available inventory today comes from surplus stock, specialized industrial suppliers, or refurbished inventory channels.

Facilities still operating Mark IV systems usually maintain spare inventory because replacing the entire turbine control platform is expensive and outage-sensitive.

Q3: Is this board genuinely new or refurbished?

Availability varies by supplier.

Typical conditions include:

• New Original / New Surplus
• Refurbished and tested
• Used pull-out inventory

Always request:

• Actual product photos
• Serial labels
• Test reports
• Startup verification results

Do not assume “new” means recently manufactured. Most Mark IV inventory has been warehoused for years.

Q4: Will replacing this processor board erase turbine logic?

Potentially, depending on system architecture and board function.

Before replacement:

1. Backup all configuration files.
2. Archive turbine constants.
3. Document rack addressing and jumper settings.

Never rely on a legacy turbine system having a recoverable hard drive backup. I have seen plants discover corrupted archives during an outage window. That gets expensive quickly.

Q5: What is the most common installation mistake?

Incorrect jumper configuration.

Honestly, this happens constantly on older GE systems. Someone assumes the replacement board ships configured correctly from the supplier. It usually does not.

Take high-resolution photos before removal and duplicate every setting exactly.

Q6: What testing should be performed before shipment?

A proper QC workflow should include:

1. OEM part verification
2. Anti-counterfeit inspection
3. PCB solder and trace inspection
4. Power-on testing in a compatible Mark IV rack
5. LED and communication verification
6. 24-hour thermal load testing
7. Insulation resistance testing using a 500 V Megger
8. Ground continuity testing
9. ESD-safe packaging and final QC signoff

We strongly recommend requesting startup videos and formal test reports before shipment approval.

Q7: What should I verify before ordering?

Verify these three items first:

1. Full model number including suffix
2. Existing rack revision compatibility
3. Jumper and connector configuration

❗Even boards that look physically identical can behave differently between revisions. I have seen engineers lose a day troubleshooting because the suffix revision changed internal timing behavior slightly.

Keep these checks in mind and you’ll save yourself 90% of typical rework time.
