GE DS3800HXPC1C1C Mark IV CPU Expander Board

Description

3. Key Technical Specifications

Parameter	Value
Manufacturer	GE General Electric
Model Number	DS3800HXPC1C1C
Product Type	CPU Expander Board
System Family	GE Speedtronic Mark IV
Functional Application	CPU processing expansion
Installation Type	Rack-mounted PCB
Jumper Count	37 configurable jumpers
Integrated Circuits	48 onboard ICs
Resistor Networks	6 network arrays
Connector Type	Female edge connector + dual male connectors
Internal Components	Intel D8254 timer circuitry, oscillators, DIP components
Mounting	Four drilled corners with retention clips
Approximate Weight	1.28 kg
Board Construction	Multi-layer industrial PCB

The DS3800HXPC family functions as a CPU expander card inside GE Mark IV Speedtronic systems and includes multiple jumper groups, timer circuits, and signal expansion hardware intended for turbine control environments.



4. Product Introduction

GE DS3800HXPC1C1C is a CPU Expander Board used in GE Mark IV Speedtronic gas and steam turbine control systems. The board expands processor functionality and supports signal handling requirements inside the Mark IV control architecture.

In field deployments of older Mark IV systems, CPU expansion boards often become outage-critical spare inventory. I have seen plants keep one sealed unit on the shelf because replacing a failed processor support board during a turbine trip window is usually faster than attempting component-level repair. The board includes configurable jumper networks and onboard timer circuitry for system-specific implementation.

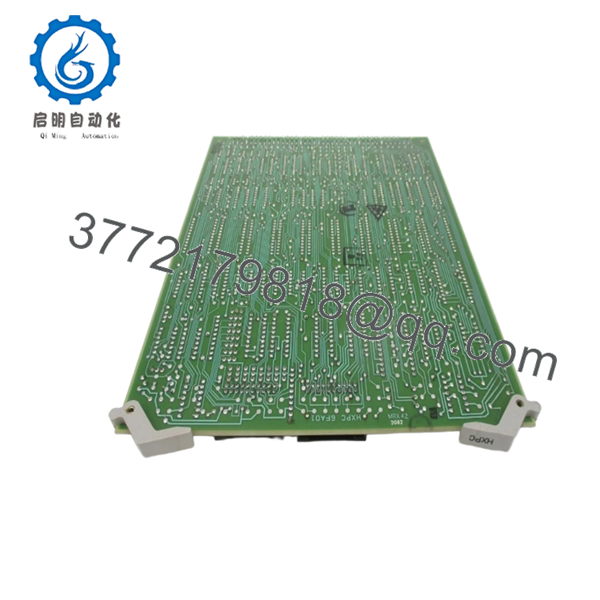

DS3800HXPC1C1C

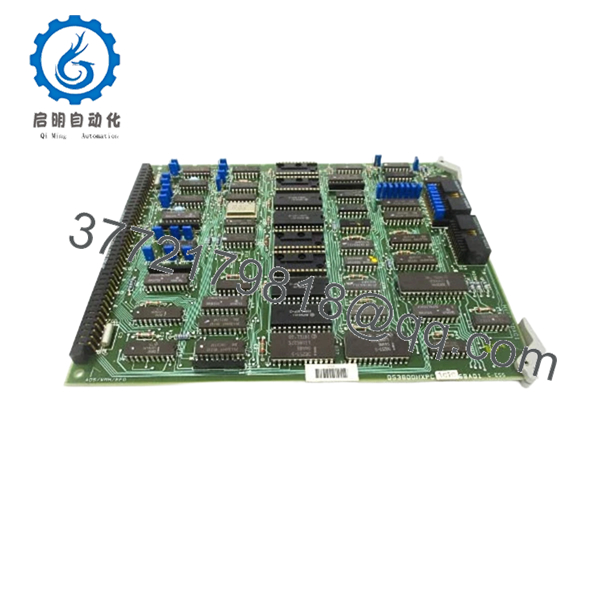

DS3800HXPC1C1C



5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Estimated Time: 10 minutes

⚠️ Safety First: Notify operations. Verify turbine safe condition. Lock out and tag out all control power. Wait a minimum of 5 minutes for stored energy discharge.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone for documentation photos
• Flashlight

Data Backup

1. Export controller data where available
2. Record active diagnostics
3. Photograph all wiring positions
4. Capture jumper arrangements
5. Photograph board labels and revision tags

❗I’ve seen experienced technicians assume they would remember jumper locations. Twenty minutes later they were comparing blurry cabinet photos from six months ago.

Stage 2: Removing the Old Module

Estimated Time: 5–8 minutes

1. Remove cabinet access cover
2. Label all cable connections
3. Disconnect connectors carefully
4. Release board extraction clips
5. Pull board straight outward

Inspect:

• Edge connector condition
• Backplane contacts
• Dust accumulation
• Bent pins
• Oxidation

⚠️ Do not discard the old board immediately.

Keep it nearby during startup. Old hardware becomes your best troubleshooting reference.

Stage 3: Installing the New Module

Estimated Time: 5 minutes

1. Attach grounded ESD strap before handling PCB
2. Verify exact model: DS3800HXPC1C1C
3. Configuration Clone (Crucial): Replicate all jumper positions exactly
4. Install board evenly into card guides
5. Verify clips engage completely
6. Reconnect wiring

Self-Checklist

• Jumpers match original
• Connectors secure
• Board seated fully
• Locking hardware engaged

❗This is the most common rookie mistake, but it happens constantly. Take a picture before you pull it. I can’t stress this enough.

Stage 4: Power-On & Testing

Estimated Time: 10 minutes

Pre-Power Check

Use a Fluke 115 and verify no short condition exists on control power rails.

Power Sequence

1. Energize rack only
2. Observe startup status indicators
3. Verify processor communications
4. Confirm CPU diagnostics
5. Run dry I/O checks

⚠️ Troubleshooting Note: If communication faults appear immediately after startup, suspect jumper configuration and hardware revision differences before replacing more boards.

Technical Pitfall & Survival Guide

❗Firmware Revision Mismatch

CPU expansion hardware from legacy systems often accumulated undocumented changes over decades.

I watched one outage continue into a second shift because a replacement board revision changed timing behavior enough to create communication timeout alarms.

Avoidance:

• Record revision labels before removal
• Request matching board revisions
• Photograph hardware markings

❗DIP Switch / Jumper Misconfiguration

The HXPC board contains 37 jumper positions arranged in multiple groups around the PCB.

Factory settings rarely match field conditions.

Take a photo before removal.

Then take another one.

❗Terminal Block / Connector Assumptions

Even closely related GE DS3800 variants can use different connector layouts.

Do not wire from memory.

Always verify drawings.

❗Power Draw Specifications

Calculate total rack loading and maintain a minimum 20% reserve.

Processor expansion hardware quietly adds load over time.

❗Electrostatic Discharge

I once watched an engineer unpack a board during winter without an ESD strap.

One startup cycle.

Immediate failure.

Several thousand dollars gone before lunch.

Use an ESD mat and grounded strap.

Keep these checks in mind and you’ll save yourself 90% of typical rework time.

SOP Quality Transparency

1. Inbound Inspection & Traceability

• Verify OEM documentation and labels
• Review serial and identification records
• Check for scratches, corrosion, UV yellowing, and repair marks
• Audit included accessories and paperwork

2. Live Functional Testing

Test Environment

• Genuine GE Mark IV rack
• Simulated turbine control environment

Procedure

• Power-on self-test
• Startup indicator verification
• Communication handshake testing
• I/O signal simulation
• Continuous operation >24 hours with thermal monitoring
• Test report generation

Test videos and photos available upon request.

3. Electrical Parameter Testing

• 500 V Megger insulation test (>10 MΩ)
• Ground continuity verification
• Hipot testing when applicable

4. Firmware & Configuration Verification

• Record hardware revision
• Photograph jumper positions
• Archive configuration details

5. Final QC & Packaging

• QC inspector signoff
• Anti-static ESD bag
• Bubble protection
• Heavy-duty corrugated packaging
• QC passed label with date

Verified fully functional under load testing.



6. Frequently Asked Questions (FAQ)

Q1. Can I hot-swap DS3800HXPC1C1C?

No.

Do not attempt live insertion. Mark IV systems were not designed for hot-swappable processor boards. Pulling the board under power risks backplane and CPU communication damage.

Power down first.

Q2. Is DS3800HXPC1C1C obsolete?

Yes.

Mark IV hardware has been out of production for years. Current inventory usually enters the market through New Surplus channels or tested refurbishment suppliers.

Q3. Is New Surplus inventory genuinely unused?

Sometimes.

Sometimes the board sat untouched in a warehouse for twenty years.

Request:

• Label photos
• Test reports
• Packaging images
• Date code verification

Do not assume.

Q4. What exactly does this board do?

The DS3800HXPC1C1C functions as a CPU expansion card used to increase processing and signal handling capability within the Mark IV architecture. It includes timer circuitry, multiple integrated circuits, and configurable jumpers.

Q5. Will replacing this board erase turbine logic?

Normally no.

CPU expander boards support processing architecture rather than primary logic storage. Still verify system design before shutdown.

Q6. Why do prices vary so much?

Obsolete GE turbine hardware pricing depends more on inventory condition and availability than original list pricing.

A tested board with traceability and warranty often costs considerably more than unknown surplus inventory.

Q7. What should I inspect first if processor faults continue?

Start with:

1. Jumper configuration
2. Revision matching
3. Edge connector cleanliness
4. Backplane contact integrity

I’ve seen oxidized edge connectors create processor faults that looked exactly like failed boards.
