Key Technical Specifications
- Part Number: DS3800NGRC1H1F
- Manufacturer: General Electric
- Series: Mark IV
- Application: Industrial turbine control
- Product Type: Board assembly
- Compatibility: GE Mark IV rack system
- Mounting: Rack-mounted card
- Revision: H1F suffix
- Condition: New Surplus
- Availability: Limited stock
Product Introduction

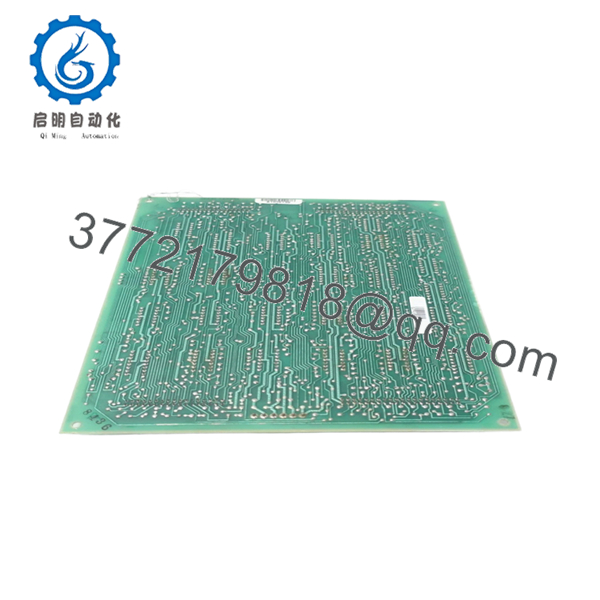

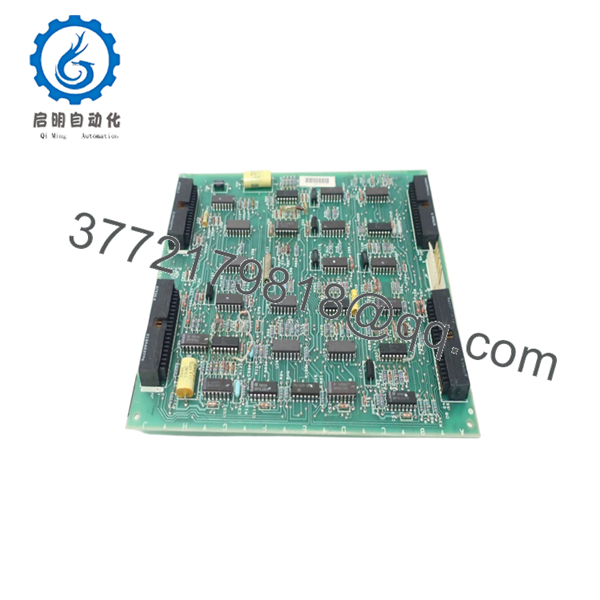

GE DS3800NGRC1H1F is a Mark IV board assembly used in GE legacy turbine control systems. It is typically purchased as a direct replacement for installed GE racks where the exact part number matters more than a generic substitute.
This board is for buyers who need the full suffix match and a clean swap in an existing Mark IV cabinet. In field service, the real risk is not just board failure; it is revision mismatch, connector mismatch, or wiring assumptions that cost a maintenance window.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No status response after power-up | Rack power issue, bad backplane contact, or failed board | ✅ High | Measure rack supply rails, then reseat the board and inspect edge contacts | Verify power and seating before replacing the board |
| Intermittent alarms in the control cabinet | Loose connector, vibration, or aging board components | ✅ High | Wiggle-test the board carefully, inspect connectors, and watch for alarm changes | Replace if the fault follows the module during bench test |
| Control system does not recognize the card | Wrong revision, wrong slot, or incompatibility with host configuration | ✅ High | Compare the full suffix and slot assignment against the original unit | Match the exact suffix before installation |
| Normal LEDs, but process signal is wrong | Input/output path issue outside the board | ❌ Low | Check field wiring, terminal blocks, and upstream device output | Do not replace the card until the field loop is verified |
| Works cold, fails when warm | Thermal stress or marginal component | ✅ Medium | Run the unit under load and monitor temperature rise | Replace if failure repeats after warm-up |
| No visible damage, but repeated faults continue | Internal board degradation | ✅ High | Test in a known-good rack if available | Replace after confirming power, wiring, and configuration are correct |
If you are stuck, contact technical support with photos of the board, the rack slot, connectors, and diagnostic logs.
- DS3800NGRC1H1F
- DS3800NGRC1H1F
Frequently Asked Questions
Q: Is DS3800NGRC1H1F obsolete?
A: Yes, treat it as a legacy Mark IV part. That means availability is tied to surplus stock, not ongoing OEM production.
Q: Can I use a similar DS3800 part number?
A: Not without checking the exact suffix and application. GE Mark IV parts can look interchangeable but still fail because of revision, slot, or wiring differences.
Q: Is this new, refurbished, or used?
A: This listing should be treated as New Surplus unless otherwise stated. That means unused inventory from excess stock, not a rebuilt board.
Q: Do I need to power down before swapping it?
A: Yes. Do not hot-swap it unless the OEM documentation explicitly allows it. Pulling a live board is a good way to damage the backplane.
Q: What usually looks like a board failure but is not?
A: Power feed problems, dirty connectors, loose edge contact, and wrong configuration are the usual culprits. I have seen people replace the board first and only then find a bad terminal or supply rail.
Q: Why is it cheaper than factory new?
A: Surplus pricing is lower because the part comes from excess inventory or decommissioned stock. Lower price does not mean lower part accuracy, but it does mean you should verify the exact model and suffix.
Q: What should I check before ordering?
A: Confirm the full part number, suffix, rack type, and installation slot. Take photos of the old board before removal, especially connectors and jumpers.
