GE DS3800NPSM1E1D Mark IV Speedtronic Power Supply Module

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The GE DS3800NPSM1E1D is the backbone of the Mark IV power distribution network, responsible for monitoring the health of the DC voltages that feed every other processor and I/O card in the rack. Without a stable “NPSM” board, the system cannot verify power integrity, often resulting in “Loss of Power” trips that shut down turbine operations instantly. This specific 1E1D revision represents the final, most stable hardware iteration produced for this series.

From a supply-chain standpoint, the DS3800NPSM1E1D is a high-risk failure point. Power supply boards deal with the most heat and electrical stress of any component in the cabinet. Buying refurbished power boards is mathematically high-risk; the electrolytic capacitors in used units are almost certainly at the end of their dry-out curve. Our New Surplus units provide the only way to secure “zero-hour” hardware, ensuring your legacy Mark IV remains operational for another decade while significantly lowering your Total Cost of Ownership (TCO).

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

Power down the entire Mark IV core being serviced. Verify the 125 VDC source is disconnected and locked out. Use an ESD-safe wrist strap. Before removing the old board, document the status of all on-board fuses and check for any custom wire jumpers that may have been added by plant engineers over the years.

Stage 2: Removal

Unlock the top and bottom card handles. Pull the module straight out along the guide rails. Inspect the backplane for any signs of scorching or carbon tracking, which are common if the previous board failed due to an over-voltage event.

Stage 3: Installation (Clone & Seat)

Verify that the new DS3800NPSM1E1D has the correct fuse ratings installed (matching the 125 VDC input requirements). Slide the board into the slot until it meets the backplane connector. Use the lever action of the handles to seat it firmly; do not force it, as this indicates a rail misalignment.

Stage 4: Power-On & Testing

Energize the 125 VDC source. Monitor the LED diagnostic array on the front of the board. All monitored rail LEDs (e.g., +5V, +15V) should be lit green. If any red fault lights appear, immediately de-energize and check for downstream shorts in the rack’s I/O cards.

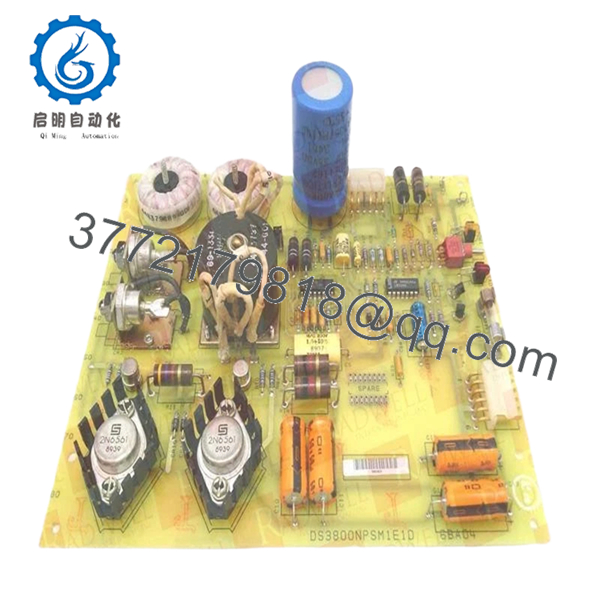

DS3800NPSM1E1D

6. Firmware/Software Versions & Upgrade Notes

• Revision Level: The 1E1D revision is the “Gold Standard” for this series. It is physically and electrically compatible with older 1A, 1B, and 1C versions.
• No Software Loading: This board is a purely hardware-based monitor. There is no firmware to download or flash. This makes it an ideal “plug-and-play” replacement for emergency outages.
• Interchangeability: While this board is compatible with older versions, do not mix different revision levels across redundant cores (R, S, and T) if possible. For maximum stability, keep the power monitoring hardware identical across all three cores.

7. Frequently Asked Questions (FAQ)

Why should I buy New Surplus instead of just repairing my old board?

Power supply boards suffer from “heat soak.” Even if you replace one failed component, the rest of the board’s traces and capacitors have been stressed by years of 24/7 operation. New Surplus offers a factory-fresh substrate and components, providing 100% reliability that a repaired board cannot match.

How do I know this is a genuine GE part and not a knock-off?

Every DS3800NPSM1E1D we ship features original GE silkscreening, date codes, and verifiable serial numbers. These are sourced from high-quality surplus lots from authorized industrial channels, not third-party “clones.”

What happens if the LEDs don’t light up after installation?

First, check the on-board fuses. If the fuses are intact but the LEDs are dark, the issue is likely with the primary 125 VDC input coming from the backplane. This board is designed to be a monitor; if it doesn’t see voltage, it stays dark.

Are these boards “hot-swappable”?

No. Removing the power supply monitor board while the rack is live will likely cause the system to interpret a power failure, leading to an immediate “Full Load Trip.” Always perform the swap during a planned or emergency shutdown with the power isolated.

Is there a warranty?

Yes, we provide a full 12-month warranty on this New Surplus module. If it fails to perform to OEM specifications, we provide a direct replacement or a full refund, ensuring your procurement risk is zero.
