Key Technical Specifications
- Manufacturer: General Electric
- Part Number: DS3800NTCF1C1B
- Series: Mark IV
- Function: Thermocouple condition card
- Application: Gas turbine / industrial control temperature input
- Form Factor: PCB module
- Compatibility: Mark IV rack only; verify revision and connector match
- Status: Obsolete, limited availability
- Condition: New Surplus or tested replacement
- Installation Note: Confirm thermocouple type, wiring, and channel mapping before replacement
Product Introduction
GE DS3800NTCF1C1B is a Mark IV thermocouple condition card used in GE turbine and industrial control systems. It accepts temperature feedback from field thermocouples and conditions that signal for the Mark IV control rack.
This part is bought to keep legacy Speedtronic systems running without changing the cabinet design. The main value is exact-fit replacement for an obsolete board, with revision matching and connector compatibility doing most of the heavy lifting.

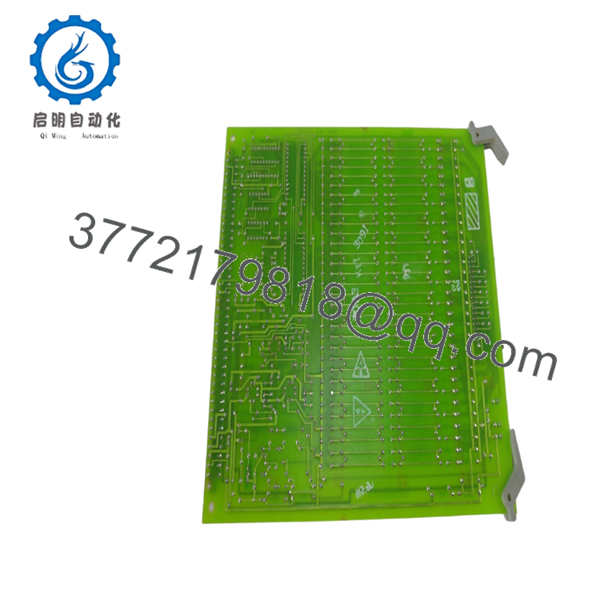

- DS3800NTCF1C1B

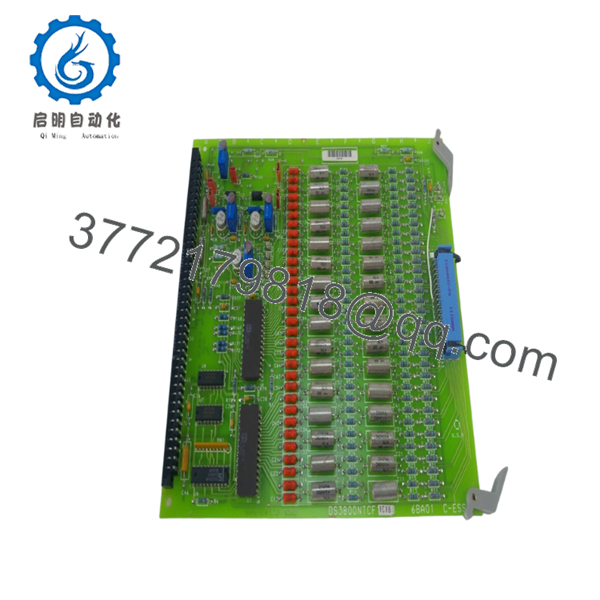

- DS3800NTCF1C1B
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Temperature reading is frozen or missing | Open thermocouple, bad field wiring, or failed input conditioning | ✅ High | Check thermocouple continuity and measure millivolts at the input terminals | Inspect field wiring first, then replace the card if the signal is present at the board |
| One channel reads far off from reality | Sensor type mismatch or wrong channel mapping | ✅ High | Compare thermocouple type, polarity, and channel assignment against drawings | Verify sensor type and wiring before condemning the module |
| All temperature channels fail | Rack power issue or board-level failure | ✅ Medium | Measure rack supply voltage and check board LEDs or diagnostics | Confirm backplane power, then test the card in a known-good rack |
| Intermittent alarms during operation | Loose connector, oxidized contacts, or cabinet vibration | ✅ Medium | Reseat the board and inspect edge contacts and harness termination | Clean contacts and verify mechanical fit before replacement |
| Thermocouple fault appears after swap | Wrong revision or configuration mismatch | ✅ High | Compare old board label, jumper settings, and part suffix | Match the exact suffix and physical configuration before install |
If you get stuck, send photos of the board, rack, connectors, and diagnostic logs to technical support.
Frequently Asked Questions
Q: What does DS3800NTCF1C1B do?
A: It is a GE Mark IV thermocouple condition card. Its job is to process temperature feedback from field thermocouples for the control system.
Q: Is this an exact replacement for DS3800NTCF1C1C?
A: Not automatically. The suffix matters, and even close revisions can have different hardware details. Compare the full part number, connector layout, and system documentation before ordering.
Q: Can I hot-swap this card?
A: No. Power down and follow the site’s lockout procedure. Pulling it live risks backplane damage and can create a bigger repair than the original fault.
Q: Why is the part sold as new surplus?
A: Because this is an obsolete Mark IV component. New surplus usually means unused stock from older inventory, not current factory production.
Q: Will my existing thermocouple wiring still work?
A: Usually yes, but only if the sensor type, polarity, and channel mapping match the original setup. Do not wire from memory; verify the terminal diagram first.
Q: What failure signs point to the board itself?
A: A board is more suspect when good field wiring still gives dead channels, frozen readings, or repeat faults on multiple inputs. If only one sensor is bad, the problem is usually outside the card.
Q: What should I check before ordering a replacement?
A: Record the full suffix, take photos of the board and jumpers, confirm the rack type, and verify the thermocouple input wiring. That avoids most install-time surprises.
