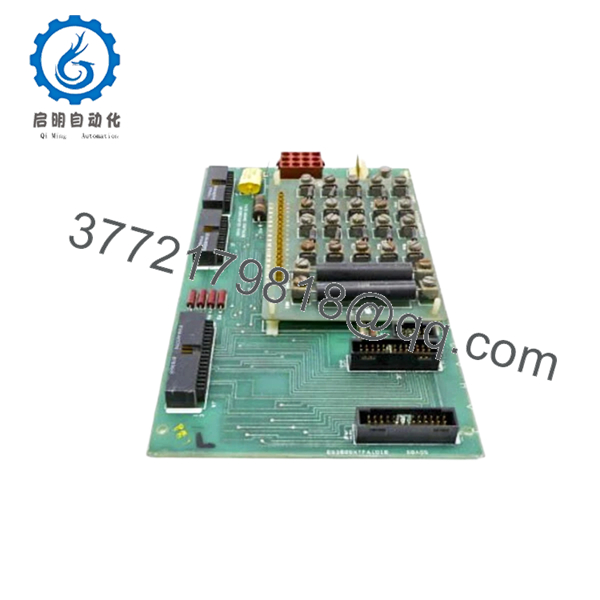

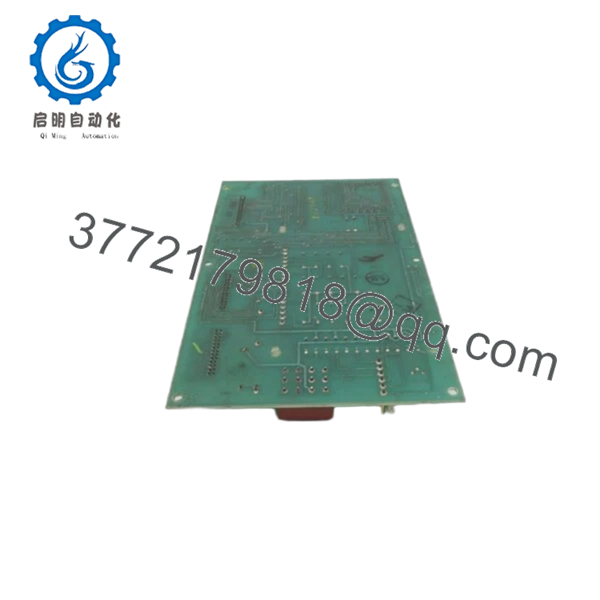

GE DS3800XTFA1D1B Mark IV Thyristor Fan-Out Board

Description

3. Key Technical Specifications

Parameter	Value
Manufacturer	GE General Electric
Model Number	DS3800XTFA1D1B
Series	Mark IV Speedtronic
Product Type	Thyristor Fan-Out Interface Board
Functional Description	Signal distribution and fan-out control
Application	Turbine control and excitation interface
System Compatibility	GE Mark IV turbine systems
Mounting Method	Rack-mounted PCB
Signal Type	Thyristor firing and control distribution
PCB Coating	Industrial conformal-coated assembly
Connector Style	Multi-pin edge and board connectors
Cabinet Environment	24 V DC industrial control systems
Operating Temperature	0 °C to 60 °C
Storage Temperature	−20 °C to +85 °C
Humidity Rating	5% to 95% non-condensing
Approximate Weight	0.3–0.5 kg
Condition	New Original / New Surplus
Warranty	12 Months



4. Product Introduction

The GE DS3800XTFA1D1B is a thyristor fan-out interface board used in GE Mark IV Speedtronic turbine control systems. The board distributes firing and control signals between excitation and control sections within gas turbine and steam turbine cabinets.

In field maintenance environments, this board is commonly replaced during lifecycle extension work on older Mark IV systems where plants continue operating proven turbine infrastructure instead of performing full control migrations. Engineers typically keep the exact DS3800XTFA1D1B revision because even small hardware differences can affect firing synchronization and cabinet communication stability.

DS3800XTFA1D1B

DS3800XTFA1D1B



5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10 Minutes)

⚠️ Safety First

• Notify operations before shutdown.
• Verify the turbine and excitation systems are in a safe maintenance state.
• Apply lock out/tag out procedures.
• Disconnect all cabinet power sources.
• Wait at least 5 minutes for stored energy discharge.

⚠️ Older GE Mark IV excitation cabinets can retain residual voltage after shutdown. Verify with a meter before touching internal hardware.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone for cabinet photos
• Flashlight for rack inspection

Data Backup

1. Export current controller configuration if available.
2. Photograph all connector locations and cable routing.
3. Record cabinet slot position.
4. Document any jumper settings or field modifications.

❗ I’ve seen outage teams skip documentation because “it’s only one board.” Four hours later they’re tracing cables manually because nobody photographed the original installation.

Stage 2: Removing the Old Module (Estimated Time: 5–10 Minutes)

1. Open the cabinet access panel.
2. Label all connectors before removal.
3. Disconnect cables carefully without twisting connectors.
4. Remove retaining screws or mounting hardware.
5. Pull the board straight outward.

⚠️ Do not rock the PCB side to side. Older Mark IV backplane connectors are fragile, and bent pins create intermittent faults that waste entire shifts during commissioning.

1. Inspect:
   • Backplane pins
   • Connector contacts
   • Dust accumulation
   • Heat discoloration
   • Corrosion around solder joints

Field Reminder

Keep the original board beside the cabinet until startup is complete. I’ve watched technicians discard old hardware too early, then realize they needed jumper references from the original board.

Stage 3: Installing the New Module (Estimated Time: 10 Minutes)

1. Wear a grounded ESD strap before opening the anti-static package.
2. Verify the exact part number:
   • DS3800XTFA1D1B
3. Compare board revision markings carefully.

Configuration Clone (Crucial)

1. Replicate all jumper and connector configurations exactly.
2. Verify thyristor firing signal routing.
3. Confirm grounding and shield terminations match the original installation.

❗ This is the most common rookie mistake in older GE systems. One connector shifted by a single position can create unstable firing behavior or communication alarms across the cabinet.

1. Insert the board evenly into rack guides.
2. Ensure the board seats fully into the connector.
3. Tighten retaining hardware evenly.
4. Reconnect all cables carefully.

Self-Checklist

• Model verified
• Connectors aligned correctly
• Wiring secured
• Grounding verified
• Board fully seated

Stage 4: Power-On & Testing (Estimated Time: 15 Minutes)

Pre-Power Check

1. Verify no shorts exist on the 24 V DC rail.
2. Check cabinet grounding continuity.
3. Inspect connector seating and cable routing.

Power-On Steps

1. Energize the control rack only.
2. Observe startup indicators and cabinet diagnostics.
3. Verify communication with the Mark IV controller.
4. Confirm firing and control signals operate correctly.
5. Perform dry-run testing before returning field devices to service.

⚠️ If intermittent firing faults appear immediately after startup, inspect connector alignment and grounding before replacing additional boards.

SOP Testing Performed Before Shipment

Each DS3800XTFA1D1B unit undergoes:

1. Inbound Inspection & Traceability
   • OEM label verification
   • Serial number inspection
   • Connector integrity checks
   • Visual inspection for corrosion or rework marks
2. Live Functional Testing
   • Tested on a genuine GE Mark IV rack
   • Signal fan-out simulation
   • Communication verification
   • Continuous thermal run exceeding 24 hours
3. Electrical Parameter Testing
   • 500 V insulation resistance test (>10 MΩ)
   • Ground continuity verification
   • Power rail stability checks
4. Firmware & Configuration Verification
   • Revision identification recorded
   • Jumper and connector documentation archived
5. Final QC & Packaging
   • ESD-safe anti-static packaging
   • Bubble wrap and reinforced export carton
   • QC inspection sign-off with date

Test photos and startup videos are available upon request.



6. Frequently Asked Questions (FAQ)

Q1: Can the DS3800XTFA1D1B be hot-swapped?

No.

The Mark IV platform was never intended for routine hot-swapping of interface boards. Pulling the module under power can damage the backplane or create unstable thyristor firing behavior.

Shut the cabinet down completely first.

Q2: Is the DS3800XTFA1D1B obsolete?

Yes. The GE Mark IV platform is legacy equipment and has been out of OEM production for many years. Most available inventory today comes from surplus industrial stock or tested refurbishment channels.

Many plants still operate Mark IV systems because complete turbine control migrations require extensive outage planning and commissioning.

Q3: Is this board genuinely new?

This listing refers to New Original / New Surplus inventory unless otherwise specified.

That generally means:

• No previous field installation
• OEM-manufactured hardware
• Stored as industrial spare inventory

Due to age, packaging may show shelf wear. Every board is inspected before shipment for oxidation, damaged traces, and connector deterioration.

Q4: What does this board actually do?

The DS3800XTFA1D1B distributes thyristor firing and interface signals within the Mark IV control architecture. It helps coordinate signal routing between excitation and turbine control sections during operation.

Q5: What causes most startup failures after replacement?

Connector misalignment and grounding mistakes.

I’ve watched engineers replace the hardware correctly mechanically, but leave one shield ground disconnected. The cabinet powered up, then immediately started throwing intermittent firing faults that took hours to isolate.

Take detailed photos before removal.

Q6: Will replacing this board erase my turbine logic?

Normally no. The DS3800XTFA1D1B functions primarily as an interface and signal distribution board rather than a logic storage device.

Still, always back up the control system before maintenance. I’ve seen undocumented cabinet modifications disappear because nobody documented the original configuration.

Q7: Why are surplus Mark IV boards still expensive?

Because turbine downtime costs more than hardware.

A forced outage waiting for one obsolete GE board can cost far more in lost generation revenue than the price of the replacement part itself. Plants continue paying premium prices for tested spare inventory that can ship immediately.

❗ I once watched a technician install a replacement Mark IV board during winter maintenance without using an ESD strap. The board powered up briefly, then failed instantly. That single mistake extended the outage another full shift.

Keep these checks in mind and you’ll save yourself 90% of typical rework time.
