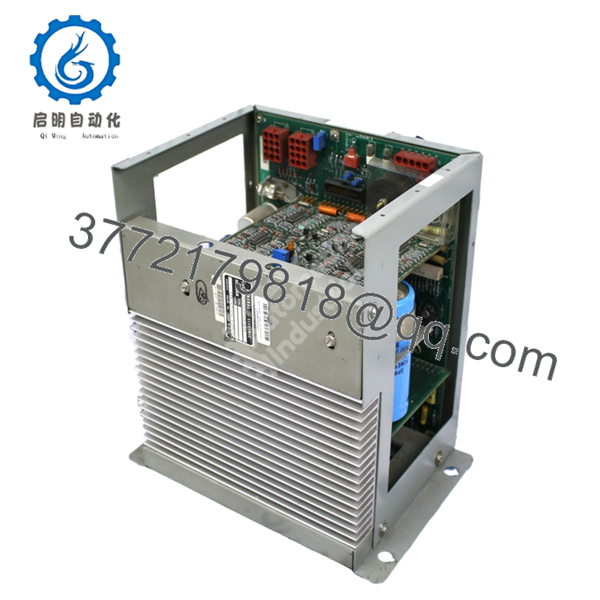

GE DS3820PSCB1B1A Power Supply Assembly

Description

1. Key Technical Specifications

• Function: Power supply assembly for GE DS3820 Mark IV systems.
• Input voltage: 80–140 V DC nominal input (verify exact OEM label on unit).
• Output rails: +5 V DC, +15 V DC, −15 V DC (rated currents per rail to be confirmed from datasheet).
• Backplane interface: DS3820/Mark IV rack connector and mechanical form factor.
• Onboard protection: Fusing and power-monitoring circuits (confirm fuse types and ratings).
• Mounting: Plug-in chassis/module assembly for DS3820 enclosures.
• Operating temperature: Industrial range (confirm exact °C from OEM documentation).
• Dimensions: DS3820 module assembly form factor (confirm mm/in by OEM drawing).
• Weight: Unit-level weight varies by revision (confirm on label).
• Firmware/Revision: Revision code 1B1A printed on label—confirm compatibility with host controller.

1. Product Introduction
   The GE DS3820PSCB1B1A is a DS3820-series power supply assembly used in GE Speedtronic Mark IV turbine control cabinets to deliver regulated backplane power rails (+5 V, ±15 V) from an 80–140 V DC input. It supplies and protects DS3800/DS3820 logic and I/O cards and integrates fusing and monitoring required for turbine control subsystems.
   Specify the exact P/N and revision (1B1A) when ordering and confirm rail current ratings and connector keying against your chassis label to prevent mismatches during replacement.
2. Troubleshooting Quick Reference


   Symptom	Possible Cause	Relevance to this Part	Quick Check Method	Recommendation
   No rack power or no LEDs	PSU input absent or failed	✅ High	Measure DC at rack input terminals (expect 80–140 V DC).	Verify upstream supply/breakers; replace DS3820PSCB only after confirming input present.
   Some slots have power, others not	Blown slot fuses or rail failure on PSU	✅ High	Inspect fuse continuity on PSU assembly; measure +5 V and ±15 V at backplane under load.	Replace blown fuses per OEM spec; isolate shorted module if multiple fuses blow.
   Modules reset intermittently under load	Voltage sag / undersized PSU	✅ High	Monitor backplane voltages while exercising modules (use scope or data logger).	Increase PSU capacity or reduce load; replace PSU if voltages fall out of spec.
   Overtemperature fault on PSU	Poor cooling or blocked airflow	✅ Medium	Check chassis fans, measure PSU surface temperature, confirm ventilation.	Restore cooling, clean filters; replace PSU if thermal trips persist.
   Burnt connector pins or corrosion	Connector wear or poor grounding	✅ Medium	Visually inspect connector and backplane mating area; measure ground continuity.	Clean/replace connectors; ensure proper grounding practices.

Note: Power assembly faults are frequently caused by downstream shorted modules or connector faults—remove suspect modules and re-test rails before replacing the PSU. Always capture photos of the PSU label, fuse markings, and measured voltages for support.

1. Frequently Asked Questions (FAQ)
   Q: Can I hot-swap the DS3820PSCB1B1A?
   A: No. Treat the power assembly as non-hot-swappable—remove rack power before servicing to avoid backplane transients and possible damage to logic and I/O modules.

Q: How do I confirm this is the correct replacement?
A: Match the full P/N and revision printed on the board label (DS3820PSCB1B1A), confirm the rack input voltage (80–140 V DC), output rail voltages (+5 V, ±15 V), and mechanical keying against the chassis service manual before ordering.

Q: What common failures lead to needing this PSU replaced?
A: Shorted plug-in modules, blown output fuses, degraded connectors/corrosion, upstream supply faults, and cooling failures are the most common causes; rarely is the PSU itself the origin without an external trigger.

Q: Will replacing the PSU affect controller configuration?
A: No. Controller settings are retained in their dedicated modules. Still, back up controller configurations and photograph module positions before power-down as a precaution.

Q: Why might New Surplus units be cheaper than factory-new?
A: New Surplus typically refers to unused OEM stock sold at discount; refurbished units have been repaired and tested. Always confirm declared condition and request the inbound inspection and functional test report.

Q: What tests should I request before shipping?
A: Ask for source verification, visual inspection, fuse and connector audit, power-on rail verification at nominal load, insulation/ground checks, and a burn-in under simulated module load; request photos and measured voltage logs.

Q: What warranty and lead times apply?
A: Lead time and warranty depend on condition: New Original / New Surplus usually ships same-week with a 1-year limited warranty; refurbished units often ship in 3–7 business days with a 90-day functional warranty. Confirm at time of order.

Technical pitfall reminders:

• Photograph the PSU label and fuse markings before removal.
• Measure and record rack input voltages and rail voltages under load.
• Use ESD precautions and a grounded wrist strap when handling the assembly.
• Allow 20% headroom on total rack power budgets to avoid brownouts.
