Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Model | IC200GBI001 |
| Product Type | Genius Network Interface Unit (NIU) |
| Series | VersaMax Modular I/O |
| Network Protocol | Genius Bus |
| I/O Modules per Rack | 8 |
| Maximum Expansion Racks | 8 |
| Network Input Data | 128 bytes per bus scan |
| Network Output Data | 128 bytes per bus scan |
| Discrete I/O Capacity | 1,024 inputs / 1,024 outputs |
| Analog Data Capacity | 128 bytes input / 128 bytes output |
| Backplane Power | +5 VDC @ 250 mA, +3.3 VDC @ 10 mA |
| Genius Address Range | 0–31 |
| Supported Bus Speeds | 38.4, 76.8, 153.6 kbps (Standard and Extended) |
The IC200GBI001 acts as the controller for a VersaMax remote I/O station, exchanging cyclic I/O data between local VersaMax modules and a Genius network master.
Product Introduction
The GE Fanuc IC200GBI001 is a VersaMax Genius Network Interface Unit (NIU) designed for distributed I/O applications. Installed at the head of a VersaMax station, it manages communication between local I/O modules and the Genius fieldbus while supplying configuration and diagnostic services for the remote node.
The module supports both discrete and analog I/O exchange, making it suitable for manufacturing, utilities, water treatment, material handling, and process automation systems that continue to operate legacy Genius networks. Although the platform is mature, it remains widely deployed because of its reliability and straightforward integration with existing GE Fanuc control systems.

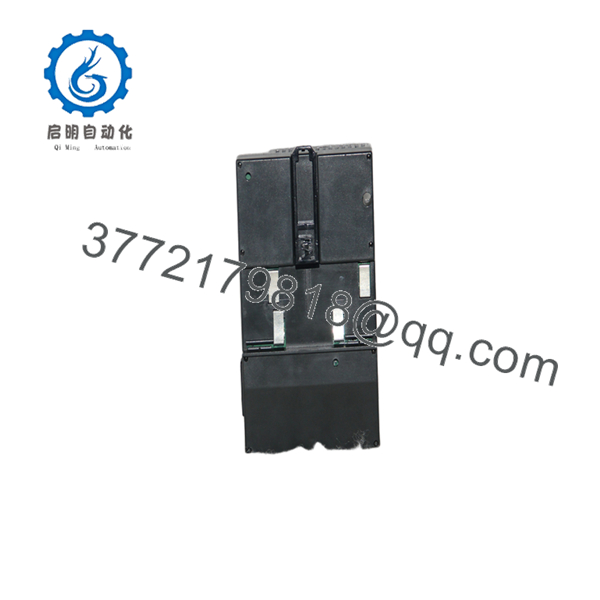

IC200GBI001

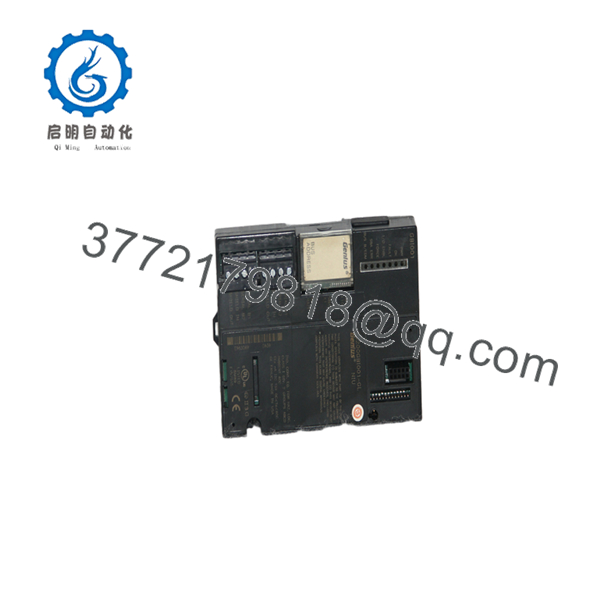

IC200GBI001
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check Method | Recommendation |
|---|---|---|---|---|
| NIU offline | No backplane power | ✅ High | Measure +5 VDC backplane supply | Verify power supply before replacing the NIU |
| Genius communication fault | Incorrect bus address | ✅ High | Confirm node address (0–31) | Set a unique Genius address |
| Loss of remote I/O | Damaged Genius cable or termination | ✅ High | Measure cable continuity and inspect terminators | Repair wiring before replacing hardware |
| Intermittent I/O faults | Outdated NIU firmware | ✅ High | Check installed firmware revision | Upgrade to firmware 3.20 or later when applicable |
| Configuration download fails | Serial connection or configuration error | ✅ Medium | Verify PC-to-NIU cable and software settings | Reload configuration |
| Modules not detected | Backplane connector issue | ✅ Medium | Reseat the NIU and adjacent I/O modules | Inspect connectors for damage |
| Analog module faults | Firmware compatibility issue | ✅ Medium | Compare NIU firmware with supported module revisions | Update firmware if using early hardware revisions |
Field Tip: Early firmware versions (3.10 and earlier) could generate intermittent Loss of I/O Module faults with certain VersaMax intelligent modules. Emerson recommends upgrading to firmware 3.20 when compatible hardware is available.
Frequently Asked Questions (FAQ)
Q1. What is the IC200GBI001 used for?
It serves as the Genius Network Interface Unit (NIU) for a VersaMax remote I/O station, managing communication between the Genius fieldbus and locally installed VersaMax I/O modules.
Q2. How many I/O modules can it support?
A single NIU supports up to eight local I/O modules per rack and up to eight expansion racks, depending on the system configuration.
Q3. Can the IC200GBI001 be hot-swapped?
No. The NIU is not intended for hot replacement. Remove system power and follow lockout/tagout procedures before installing or removing the module.
Q4. Which Genius communication speeds are supported?
The module supports 38.4 kbps, 76.8 kbps, and 153.6 kbps in both standard and extended Genius modes.
Q5. Is firmware revision important?
Yes. Firmware compatibility is important, particularly when using newer VersaMax intelligent analog or communication modules. Hardware revision Gx and later can be upgraded to firmware 3.20, which resolves known intermittent I/O issues.
Q6. Is the IC200GBI001 still manufactured?
No. It is a legacy VersaMax product. Most available units are supplied as New Surplus or professionally refurbished inventory with functional testing.
Q7. What tests should be completed before shipment?
A qualified supplier should perform:
- Visual inspection for physical damage and corrosion
- Backplane power verification
- Genius network communication test
- Remote I/O scan verification
- Firmware revision confirmation
- Functional testing with VersaMax I/O modules
- Anti-static packaging with serialized QC documentation
These checks help ensure the is ready for deployment in an existing VersaMax Genius remote I/O system.
