Key Technical Specifications
- Catalog Number: IC660ERD025B
- Manufacturer: GE Fanuc / General Electric
- Product Family: Genius I/O
- Assembly Type: Electronic assembly; verify complete-block versus electronics-only supply
- Associated Block: IC660BRD025
- I/O Family: 32-point DC discrete source/sink I/O
- Nominal Field Voltage: 24 VDC
- Redundancy: Intended for the BRD025 redundant-output configuration
- Communication Network: GE Genius bus
- Terminal Compatibility: Verify the installed terminal assembly before ordering
- Configuration: Confirm address, output mode, and redundancy settings from the existing assembly
- Diagnostics: Review the applicable Genius I/O manual for failed-switch, open-wire, overload, and bus diagnostic behavior
- Environmental Rating: Verify the exact temperature and humidity limits against the applicable GE Genius manual
- Included Hardware: Electronics assembly only unless the seller specifically lists the terminal base and housing
- Condition: Must be stated by the supplier; marketplace listings may describe units as pulled, used, surplus, or tested
The GE Fanuc IC660ERD025B is a Genius I/O electronics assembly associated with the IC660BRD025 redundant discrete I/O block family. The BRD025 family is identified in GE Genius documentation as a 32-point, 24 VDC source/sink block with redundant-output capability.
This is not a generic PLC CPU or standalone communications controller. Before ordering, match the electronics assembly revision, terminal base, block housing, configuration switches, and installed Genius bus setup. A marketplace listing may include an IC660TBA025L terminal, but that accessory must be confirmed for each individual unit.

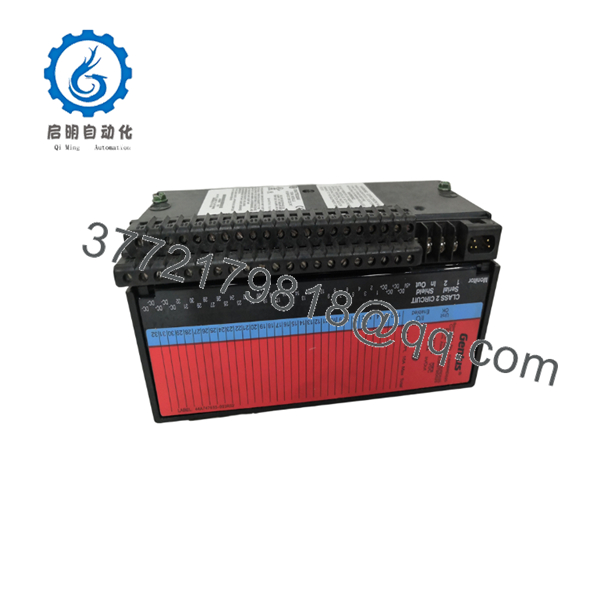

IC660ERD025B
IC660ERD025B
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No LEDs after power-up | Missing block supply, reversed wiring, blown fuse, or failed electronics assembly | ✅ High | Measure DC voltage at the block supply terminals and confirm correct polarity | Check the power circuit and terminal assembly before replacing the electronics |
| Block does not appear on the Genius bus | Incorrect address, bus wiring fault, termination problem, or failed assembly | ✅ High | Check Genius bus voltage and polarity; compare address switches with the removed unit | Correct the bus configuration and record diagnostics before condemning the part |
| BRD025 redundancy fault appears | Mismatched redundant pair, wrong configuration, or failed output path | ✅ High | Review Genius diagnostic data and compare both redundant channels under the same command | Verify the BRD025 pairing and configuration before installing another assembly |
| Several output points fail simultaneously | Common field supply, terminal connection, or block-level fault | ✅ Medium | Measure 24 VDC at the common terminals under load and inspect the terminal base | Check common wiring and the terminal assembly first |
| One output does not energize | Open load, incorrect output mode, failed switch, or wiring error | ✅ Medium | Command the point on and measure voltage at the field terminal with the load isolated | Test the load and wiring; replace the assembly only after the output is proven faulty |
| Output drops under load | Excessive current, short circuit, supply sag, or thermal protection | ✅ Medium | Measure supply voltage at the block while switching the load; isolate the field device | Repair the load circuit and verify current demand before replacing the unit |
| Input status remains unchanged | Sensor wiring fault, incorrect common reference, or failed field sensor | ❌ Low | Measure sensor voltage and input state directly at the terminal assembly | Check the sensor, wiring, and common reference before replacing the electronics |
| Bus communication is intermittent | Noise, poor shield termination, loose connector, or marginal supply | ❌ Low | Monitor Genius diagnostics while flexing wiring and checking supply ripple | Correct cable routing, shielding, grounding, and terminal torque first |
| Replacement powers up but has incorrect point behavior | Revision or configuration mismatch | ✅ High | Compare the original and replacement assembly labels, switch settings, and block configuration | Confirm the exact IC660BRD025 compatibility before commissioning |
| Terminal does not fit the replacement | Electronics-only unit supplied without the correct base or housing | ✅ High | Compare the physical connector, mounting interface, and terminal catalog number | Confirm included hardware before purchase; do not force an incompatible terminal |
If the fault remains unclear, contact technical support with photos of the assembly label, terminal base, switch settings, LED status, supply measurements, Genius diagnostics, and controller logs.
Frequently Asked Questions (FAQ)
What is the GE Fanuc IC660ERD025B?
The IC660ERD025B is a Genius I/O electronic assembly associated with the IC660BRD025 redundant discrete I/O block family. It should not be treated as a standalone PLC processor or a universal Genius communications module.
Is the IC660ERD025B a complete I/O block?
Not necessarily. The “E” assembly designation indicates that the item may be the electronics portion only. Confirm whether the sale includes the block housing, terminal assembly, and any required configuration hardware.
Which terminal assembly does it use?
Verify the terminal part number against the installed BRD025 assembly. Some listings associate IC660ERD025B with an IC660TBA025L terminal, but that accessory is not automatically included with every unit.
Can I replace it with an IC660ERD025 or another BRD025 assembly?
Do not assume interchangeability based on the shared catalog prefix. Confirm the complete suffix, hardware revision, redundancy function, field voltage, terminal interface, and Genius configuration before approving the replacement.
Can I hot-swap the ?
Do not hot-swap it unless the site documentation and applicable GE Genius manual explicitly permit the procedure. Power down the block and isolate field energy before removing the electronics assembly.
Will the existing PLC program be retained during replacement?
The controller program normally remains in the PLC or Genius bus controller, but the replacement must use the same bus address and compatible block configuration. Photograph the original switch settings and record the existing diagnostics before removal.
Why is this part cheaper than a factory replacement?
This is a legacy GE Fanuc Genius component commonly sourced through surplus, pulled, used, or refurbished inventory. Ask the supplier to state the exact condition, test procedure, included terminal hardware, warranty period, and return policy in writing.
