3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| Inputs per Module | 16 (one group with single common) |
| Logic Type | Positive or Negative logic |
| Isolation | 1500 V between field and logic side |
| Input Current | 7 mA typical at rated voltage |
| On-state Voltage | 11.5 to 30 VDC |
| Off-state Voltage | 0 to +5 VDC |
| On-state Current | 3.2 mA minimum |
| Off-state Current | 1.1 mA maximum |
| On Response Time | 1 ms typical |
| Off Response Time | 1 ms typical |
| Backplane Current (5 V) | 80 mA (all inputs on) |
| Isolated 24 V Current | 125 mA (from backplane or user supply) |
| LED Indicators | 16 green LEDs (A1–A8 / B1–B8) |
| Terminal Block | 20-screw removable (included) |
| Mounting | Any I/O slot in Series 90-30 baseplate |
4. Product Introduction
The GE Fanuc IC693MDL646 is a 16-point discrete input module for the Series 90-30 PLC designed for 24 VDC field devices. It supports both positive and negative logic wiring in a single group with one common terminal. Fast 1 ms typical on and off response times make it suitable for applications that need quicker signal detection than standard input modules.
The module accepts 0–30 VDC signals and provides 1500 V isolation between the field side and PLC logic. Field devices can be powered from a user supply or the isolated +24 V output on the Series 90-30 power supply. Status LEDs on the faceplate show the real-time state of every channel. It remains a direct replacement for existing Series 90-30 systems that require faster discrete input response.

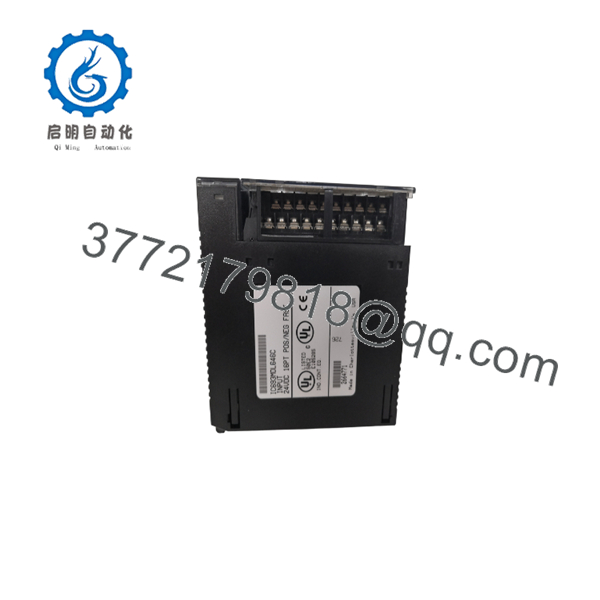

IC693MDL646
IC693MDL646
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No LEDs on, inputs not seen in PLC | Backplane power or module seating | ❌ Low | Measure +5 VDC on backplane; reseat module | Verify power supply and contact before replacing module |
| Individual LED off when field signal present | Open wiring or failed channel | ✅ High | Measure DC voltage at input terminal; confirm >11.5 V | Check field device and wiring; test adjacent channel |
| Input stays ON with no field signal | Leakage or residual voltage | ✅ Medium | Disconnect field wire and re-check status bit | Confirm voltage drops below 5 V; check for induced voltage |
| Slow or missed transitions | Response time or noisy signal | ✅ Medium | Scope or meter the field signal edges | Ensure signal exceeds thresholds cleanly; verify 1 ms timing is adequate |
| Multiple channels fail | Common terminal or terminal-block issue | ✅ Medium | Inspect and reseat the removable terminal block | Clean contacts; replace terminal block if damaged |
| High backplane current draw | Shorted input or excessive field load | ✅ Medium | Measure current on +5 V and isolated 24 V rails | Isolate field power; check for shorted inputs |
If status bits remain incorrect after these checks, photograph the LED faceplate, terminal wiring, and capture the PLC fault table before contacting technical support.
6. Frequently Asked Questions (FAQ)
Q: Is the IC693MDL646 still in production? A: No. The Series 90-30 platform is mature. Available units are New Surplus or tested refurbished stock. Maintain spares if the system is expected to remain in service long-term.
Q: What makes this module “FAST” compared with other 24 VDC inputs? A: Typical on and off response times are 1 ms. Standard modules such as the IC693MDL645 use longer filters (around 10–12 ms). Use the MDL646 when faster edge detection is required.
Q: Can I wire it for either sinking or sourcing devices? A: Yes. The module supports both positive-logic and negative-logic wiring. All 16 points share a single common, so the entire group must be wired the same way.
Q: What is the difference between IC693MDL646 and IC693MDL645? A: Both are 16-point 24 VDC inputs with the same voltage thresholds. The MDL646 has the fast 1 ms filter; the MDL645 has the slower standard filter. Choose based on required response speed.
Q: Does the terminal block come with the module? A: Yes. A 20-screw removable terminal block is included. Always label and photograph the existing wiring before removal so the new block can be terminated identically.
Q: Can this module be hot-swapped? A: No. Remove field power and power down the rack (or at least the affected baseplate) before inserting or removing the module. Hot-swapping risks damage to the backplane and the module itself.
Q: Why is New Surplus priced lower than original list? A: These are unused original modules from OEM or distributor surplus inventory. Each unit is visually inspected, powered on a genuine Series 90-30 rack, and verified for correct LED and status-bit response before shipment. Test documentation is available on request.
