3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 18 to 30 VDC (24 VDC nominal) |
| Input Power | 11 W |
| Holdup Time | 10 ms |
| Inrush Current | Limited |
| Output | Backplane power for VersaMax |
| Operating Temperature | 0 to 60°C |
| Isolation | Provided |
| Mounting | VersaMax carrier |
4. Product Introduction
The GE Fanuc IC200PWR001G is a 24 VDC Power Supply Module for the VersaMax I/O and PLC system. It converts 18-30 VDC input to regulated backplane power for CPUs, network interfaces, and I/O modules.
This compact supply supports reliable operation of VersaMax stations in industrial environments. It is essential for powering distributed control nodes.

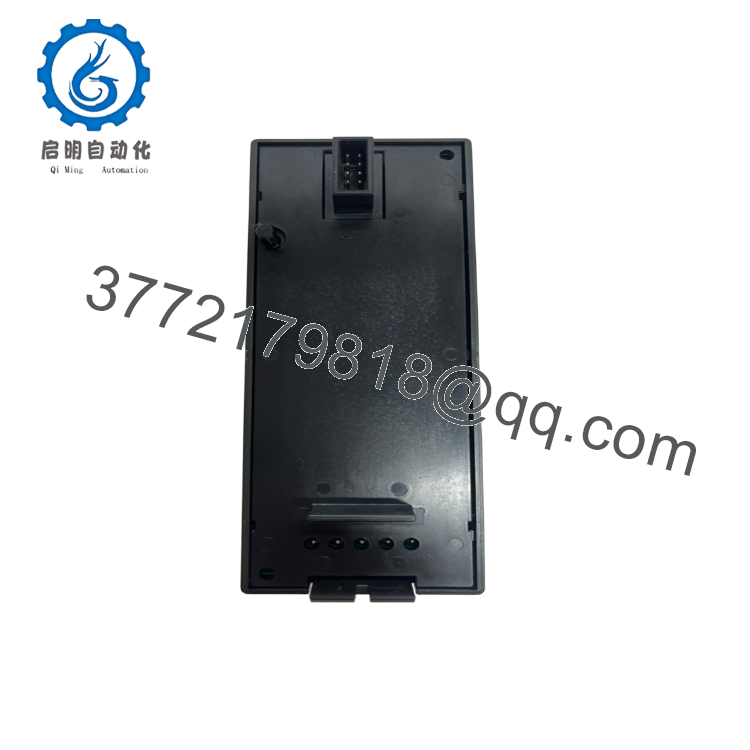

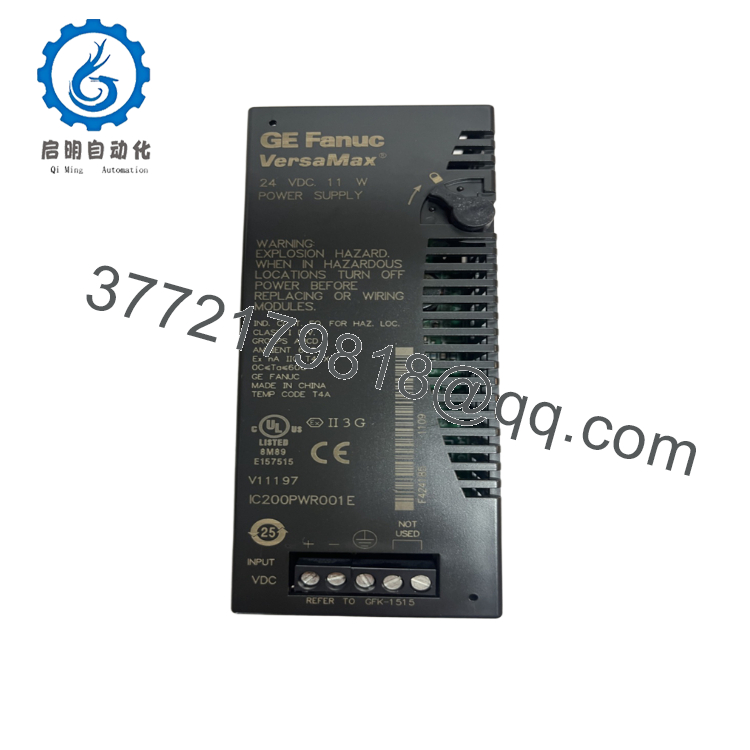

- IC200PWR001G
- IC200PWR001G
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power to modules | Input voltage missing | ✅ High | Measure input at terminals | Verify 24 VDC supply |
| Low output voltage | Overload or failure | ✅ High | Check backplane voltage | Reduce load or replace supply |
| Overheating | High ambient or fan issue | ❌ Low | Monitor temperature | Improve cooling |
| Intermittent power | Loose connections | ✅ High | Inspect terminals | Tighten screws |
| Holdup time short | Capacitor degradation | ✅ Medium | Test during power dip | Replace module |
Contact technical support with voltage measurements and load details.
6. Frequently Asked Questions (FAQ)
Is the IC200PWR001G hot-swappable? No. Shut down the station before replacement.
What is the input voltage range? 18 to 30 VDC, nominal 24 VDC.
Condition of this unit? New Original / New Surplus, fully tested.
How much power does it provide? 11 W input capacity for backplane loads.
Can it power a full VersaMax station? Yes, within its rated capacity. Calculate total module consumption.
Warranty? 1-year warranty.
Installation note? Ensure adequate input voltage and proper grounding. Leave space for heat dissipation in the enclosure.
