GE IC693TCM302 8-Channel Temperature Control Module

Description

3. Key Technical Specifications

The IC693TCM302 is a high-performance temperature control module that combines eight thermocouple inputs and eight control outputs into a single Series 90-30 PLC module. Each channel operates independently in either open-loop or closed-loop PID mode, allowing the PLC CPU to offload temperature control tasks.

4. Product Introduction

The GE IC693TCM302 is a dedicated temperature control module for the Series 90-30 PLC family. It provides eight independent temperature control zones using thermocouple inputs and integrated PID control, making it suitable for ovens, furnaces, plastics processing, packaging equipment, food processing, and industrial heating applications.

Unlike standard analog input modules, the IC693TCM302 performs local temperature control inside the module itself. This reduces PLC scan-time requirements while maintaining stable temperature regulation. Automatic calibration, thermocouple fault detection, autotuning, and independent channel operation make it well suited for applications requiring reliable multi-zone temperature control.

5. Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10 Minutes)

⚠️ Safety First

1. Notify operations of planned downtime.
2. Perform Lock-Out/Tag-Out (LOTO).
3. Remove power from the PLC and heating circuits.
4. Wait at least 5 minutes before servicing.

Tools Required

• Grounded ESD wrist strap
• Phillips screwdriver
• Digital multimeter
• Thermocouple calibrator (recommended)
• Wire labels
• Smartphone for wiring documentation
• GE Logicmaster 90 or Proficy Machine Edition

Data Backup

• Save the PLC application.
• Export the TCM configuration.
• Record all PID parameters.
• Photograph field wiring.
• Label each thermocouple and output channel.

Stage 2 – Removing the Existing Module (10 Minutes)

1. Disconnect external 24 VDC power.
2. Remove thermocouple wiring.
3. Disconnect output wiring.
4. Release the module retaining clip.
5. Remove the module carefully from the baseplate.
6. Inspect the backplane connector and terminal plugs.

⚠️ Keep the original module until every control loop has been verified after commissioning.

Stage 3 – Installing the Replacement Module (15 Minutes)

1. Wear a grounded ESD wrist strap.
2. Verify the replacement is IC693TCM302.
3. Install the module into the correct slot.
4. Reconnect the thermocouple inputs.
5. Reconnect the output wiring.
6. Restore the original configuration and PID parameters.
7. Verify thermocouple polarity before applying power.

Installation Checklist

• ✅ Correct module installed
• ✅ Thermocouple polarity verified
• ✅ RTD compensation connected
• ✅ PID configuration restored
• ✅ Output wiring confirmed
• ✅ External 24 VDC supply verified

Stage 4 – Power-On & Functional Testing (15 Minutes)

Pre-Power Checks

• Verify the 5 VDC backplane supply.
• Measure the external 24 VDC output supply.
• Check thermocouple continuity.

Commissioning

1. Apply PLC power.
2. Verify the PWR, RUN, and FAULT LEDs.
3. Confirm each temperature channel reports correctly.
4. Verify the RTD compensation channel.
5. Test each heating output individually.
6. Perform PID autotuning where required.
7. Verify stable temperature control before returning the machine to production.

⚠️ Troubleshooting

• Open thermocouple alarm: Inspect sensor wiring or replace the thermocouple.
• Reverse polarity fault: Verify positive and negative thermocouple leads.
• Temperature unstable: Confirm PID parameters and sensor placement.
• No heater output: Check the external 24 VDC supply and output wiring.
• Fault LED illuminated: Review diagnostic registers and module configuration.

IC693TCM302

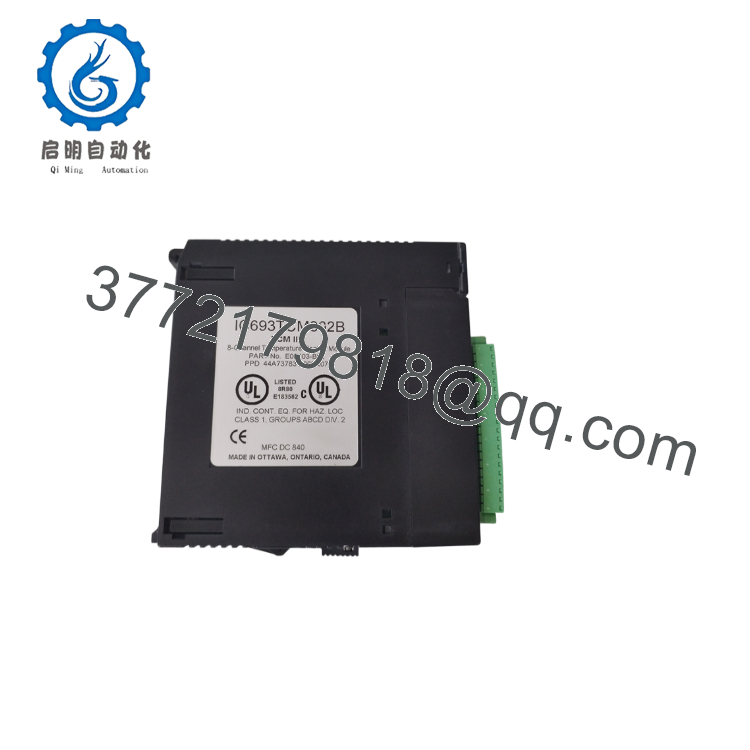

IC693TCM302

6. Frequently Asked Questions (FAQ)

Q1. What makes the IC693TCM302 different from a standard analog input module?

The IC693TCM302 performs temperature measurement and PID control internally. Instead of simply sending temperature values to the PLC, it regulates each heating zone independently, reducing PLC processing requirements and improving control response.

Q2. How many heating zones can one module control?

One module controls eight independent temperature zones. Each zone includes its own thermocouple input and dedicated control output, allowing different temperature setpoints and PID parameters for each channel.

Q3. Which thermocouple types are supported?

The IC693TCM302 supports:

• Type J
• Type K
• Type L

It also supports one RTD compensation channel or an external reference input for cold-junction compensation.

Q4. Can I replace the module while the PLC is powered?

No. This module is not designed for hot swapping. Remove PLC power and external heater power before replacement to avoid damage to the backplane or uncontrolled heater operation.

Q5. Is the IC693TCM302 still manufactured?

No. The IC693TCM302 belongs to the legacy Series 90-30 platform. New production has ended, and available inventory typically consists of New Surplus or professionally tested refurbished units.

Q6. What is the most common commissioning mistake?

The most frequent issue is reversing thermocouple polarity. The module immediately reports reverse-polarity faults, but incorrect wiring often delays startup. Another common mistake is copying the PLC project without restoring the original PID tuning parameters. Before removing the existing module, document every tuning value and wiring connection.

Q7. What quality inspections should be completed before shipment?

A qualified supplier should perform:

• OEM serial number verification
• Visual inspection for corrosion, damage, or repair marks
• Functional testing of all eight thermocouple channels
• Verification of all eight control outputs
• RTD compensation channel testing
• PID control verification using a temperature simulator
• LED diagnostic verification
• Backplane communication testing
• ESD-safe packaging with anti-static protection
• Final QC inspection report

For legacy temperature control modules, requesting a multi-channel temperature simulation report or a power-on functional test video is recommende
