Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | IS200JPDDG1A |
| Series | Speedtronic Mark VIe |
| Product Type | DC Power Distribution and Protection Board (JPDD) |
| Primary Function | DC power distribution, isolation, and branch circuit protection for control/I/O functions |
| Input Voltage | 24 V DC, 48 V DC, or 125 V DC (single input) |
| Output Voltage | 24 V DC or 125 V DC |
| Output Fuses | 12 fuses total (Bussmann ABC series, 14A–15A ratings) |
| Per-Output Components | Fuse, switch, and indicator lamp for each load |
| Max Fuse Rating | 15A (do not exceed—safety requirement) |
| Temperature Range | −30°C to +65°C |
| Dimensions | 23.495 cm (H) × 10.795 cm (W) |
| Mounting | DIN-rail |
| Jumpers | None (straightforward configuration) |
| Country of Origin | United States (USA) |
| Warranty | 1 year |
Product Introduction
GE IS200JPDDG1A is a DC Power Distribution and Protection (JPDD) board from GE’s Speedtronic Mark VIe turbine control system. It facilitates power distribution, isolation, and branch circuit protection for control or I/O functions requiring 125 V DC or 24 V DC power, primarily supporting DC relay and solenoid control power plus contact wetting applications.
This board is selected when the existing DC power distribution fails, shows fuse blowouts, or fails to provide isolated power to relays/solenoids. Each of the 12 outputs has a fuse, switch, and indicator lamp for easy monitoring and manual control. The configuration is straightforward with no jumpers, and it accepts 24 V, 48 V, or 125 V DC single input.

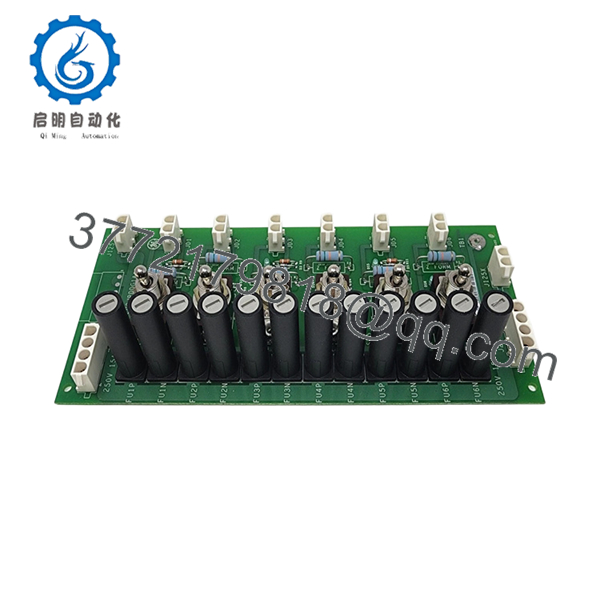

- IS200JPDDG1A

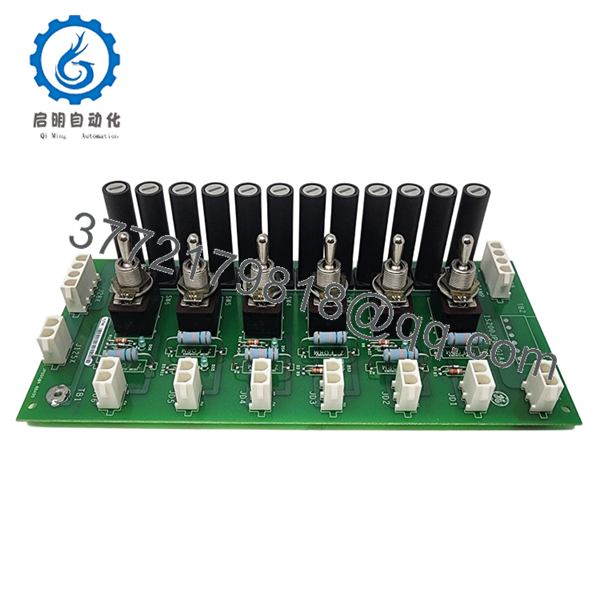

- IS200JPDDG1A
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No output voltage on one or more loads | Blown fuse, switch off, board failure | ✅ High | Check indicator lamp status; measure voltage at output terminals; inspect fuse | Replace fuse if blown; replace board if fuse is good but no output |
| All outputs dead | Input power failure, main fuse blown, board failure | ✅ High | Measure input voltage (24/48/125 V DC); check main power source | Check PSU first; replace board if input is good but no output |
| Indicator lamp off but voltage present | Lamp failure, board fault | Medium | Measure voltage at output; check lamp continuity | Replace lamp if faulty; replace board if multiple lamps fail |
| Switch won’t stay on | Overcurrent trip, short circuit downstream | ✅ High | Disconnect load; check for shorts in wiring/relay/solenoid | Fix downstream short before resetting switch |
| Overheating board | Overcurrent, poor ventilation, wrong fuse rating | ✅ High | Check fuse ratings (must be 14A–15A Bussmann ABC) ; inspect for burnt components | Verify fuse rating; improve ventilation; replace if damage found |
| Wrong fuse rating installed | Fuse >15A used, causing safety risk | ✅ Critical | Inspect fuse rating labels; verify Bussmann ABC series | Never use fuses above 15A—replace with correct 14A–15A fuse |
| Intermittent power to load | Loose terminal, marginal switch, thermal stress | Medium | Check terminal tightness; monitor during warm-up | Tighten terminals; replace board if switch fails |
Important: This board is NOT intended for power distribution to I/O packs. It is designed specifically for DC relay/solenoid control power and contact wetting. Contact technical support with photos, fault codes, and diagnostic logs if the issue persists after these checks.
Frequently Asked Questions
Q: Is this a direct replacement for every IS200JPDD DC power distribution board?
A: Not automatically. GE Mark VIe parts vary by revision and suffix (like the 1A ending). Verify the exact model suffix, input voltage requirement (24/48/125 V DC), and fuse configuration before ordering. The board must match your system’s voltage and protection requirements.
Q: Can I hot-swap this power distribution board?
A: No. Power down the DC system first. Hot-swapping can cause arcing, damage the backplane, fry the new card, or trip relays/solenoids unexpectedly. Follow lockout/tagout procedures before removal.
Q: What fuse ratings can I use with this board?
A: The JPDD supports Bussmann ABC series fuses with ratings from 14A to 15A. Do not use fuses rated above 15A—this is a safety requirement that can damage the board or cause fire hazards.
Q: Will my existing settings transfer to the new board?
A: This board has no jumpers and no programmable settings—it is a straightforward power distribution board. Document your wiring configuration and take photos before removal for reference.
Q: Why is this cheaper than buying from GE directly?
A: This is typically unused or rebuilt surplus stock, not factory fresh production from GE’s current line. The Mark VIe system is legacy equipment, so factory support is limited through authorized distributors. That lowers cost, but you should still verify condition and testing.
Q: What condition should I expect for this part?
A: Sold as unused or rebuilt with documented testing. For Mark VIe parts, expect either unused surplus or rebuilt with test reports showing fuse continuity and output voltage verification. Transparency on condition matters more than marketing language.
Q: What usually causes failure on a DC power distribution board like this?
A: In the field, common issues are blown fuses from downstream shorts, overcurrent from relay/solenoid faults, wrong fuse rating installed (>15A), thermal stress from poor ventilation, or loose terminal connections. The indicator lamps make it easy to spot which fuse/load failed.
Q: Can I use this board to power I/O packs?
A: No. The JPDD is specifically designed for DC relay/solenoid control power and contact wetting—not for I/O pack power distribution. Using it for I/O packs could cause underpower or compatibility issues.
Q: How do I avoid a bad swap and rework?
A: Take a clear photo of the original board’s wiring, fuse ratings, and switch positions; verify the exact model suffix (IS200JPDDG1A); confirm input voltage (24/48/125 V DC); and verify fuse ratings are 14A–15A Bussmann ABC series. Double-check the downstream wiring for shorts before powering up. That prevents most rework and saves downtime. Keep these checks in mind and you’ll save yourself 90% of typical rework time.
