- Key Technical Specifications
| Parameter | Specification |
| Part Number / Ordering Code | VMIVME-3122-020 (332-003122-020) |
| Manufacturer | GE Fanuc / VMIC (Abaco Systems) |
| Bus Interface | Standard VMEbus (6U Form Factor, A24/A16, D16/D08) |
| Input Channels | 64 Single-Ended or 32 Differential Analog Inputs |
| ADC Resolution | 12-Bit Analog-to-Digital Converter |
| Conversion Rate | Up to 100 kHz (10 \mus per channel) scanning throughput |
| Input Ranges | \pm 10V, \pm 5V, 0 to +10V, 0 to +5V (Jumper selectable) |
| Programmable Gain | 1, 10, 100, 500 software selectable per channel |
| Data Storage | Onboard 2K x 16 dual-port RAM for continuous auto-scanning |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Weight | ~0.55 kg (1.21 lbs) |
- Product Introduction
The GE Abaco VMIVME-3122-020 (originally developed by VMIC) is a high-density, 64-channel 12-bit analog input module built on the 6U VMEbus architecture. Designed for real-time data acquisition in aerospace, defense, power plant simulation, and heavy industrial automation, the VMIVME-3122-020 automatically scans field sensor inputs and stores converted digital values directly into onboard dual-port RAM.
Featuring jumper-configurable input voltage ranges (\pm 10V, \pm 5V, 0 to +10V, 0 to +5V) and software-programmable gain amplifiers, the module offloads sampling overhead from the host VME processor. Its high-speed 100 kHz A/D conversion rate enables precise monitoring of pressure transducers, thermocouples, strain gauges, and tachometers across complex multi-axis control loops.

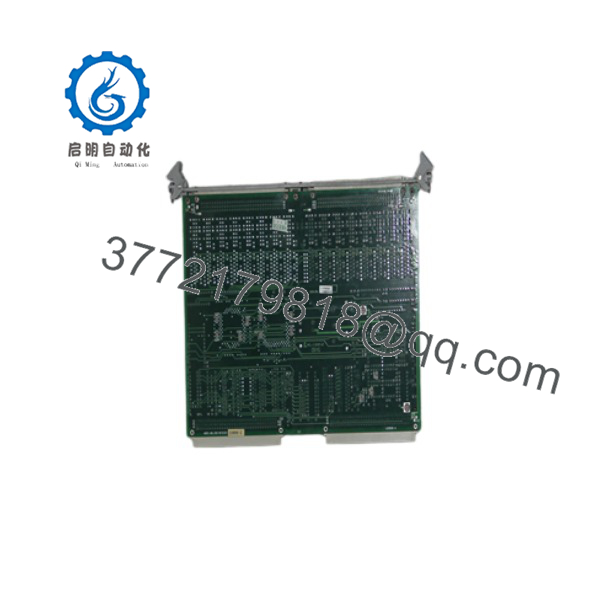

VMIVME-3122-020

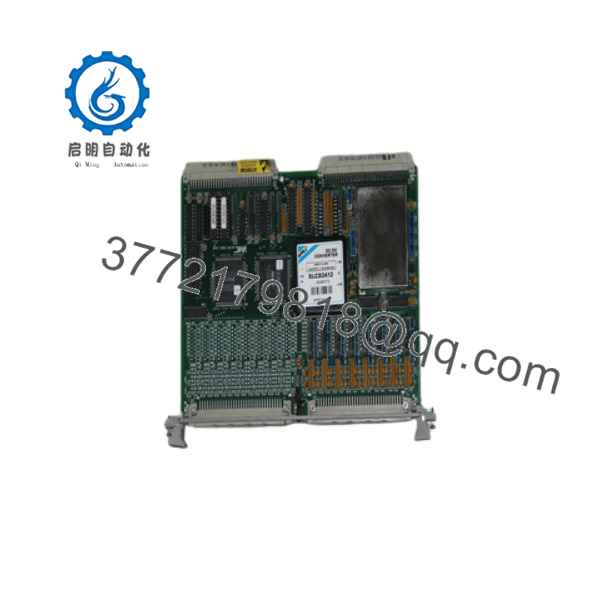

VMIVME-3122-020
- Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
| Host VME CPU fails to address board / Bus Error (BERR) | Incorrect A24/A16 base address DIP switch setting or jumper mismatch | ✅ High | Verify address jumper configuration on PCB against system VME memory map | Re-align board address switches. Ensure proper P1 backplane connector seating. |
| Inaccurate or drifting analog channel readings | Uncalibrated ADC offsets or ground loop potential between channels | ✅ High | Apply known precision voltage source to P2 connector pins; check dual-port RAM values | Re-run software calibration routines. Ensure field sensor shielding is grounded at a single point. |
| Auto-scan fails to update memory buffer | Onboard timer/trigger misconfiguration or failed ADC converter chip | ✅ High | Check trigger control register bits via VMEbus read commands | Reset scan trigger bits in software. Replace module if ADC hardware conversion fails self-test. |
| Overheating / VMEbus rail overload | Shorted bypass capacitor or board overcurrent on +5V / \pm 12V rail | ✅ High | Check VME backplane voltage levels under load; inspect PCB for hot spots | Verify VME power supply capacity. Replace module if onboard regulator or filter caps show thermal stress. |
- Frequently Asked Questions (FAQ)
Q: What does the “-020” dash option signify on the VMIVME-3122-020?
A: The dash suffix defines specific factory jumper options, including input voltage range configurations (\pm 10V standard), gain resistor setups, and front panel / connector pinout variations.
Q: Can the VMIVME-3122-020 be configured for differential analog inputs?
A: Yes. While configured by default for 64 single-ended channels, onboard jumpers allow reconfiguring the board for 32 fully differential analog input channels to increase common-mode noise rejection.
Q: Is the VMIVME-3122-020 still actively manufactured?
A: No. The VMIVME-3122 series has been discontinued by Abaco Systems (formerly GE Intelligent Platforms / VMIC). Units are available as certified refurbished or high-quality new surplus stock.
Q: How does the host VME processor read analog data from the board?
A: The host CPU accesses converted analog data via direct memory reads to the board’s onboard dual-port RAM, allowing instant data retrieval without waiting for A/D conversion cycles.
Q: How are surplus or refurbished boards verified before shipment?
A: Each module passes a 5-step SOP quality inspection: VME bus connector pin inspection, installation into a 6U VME test chassis, precision voltage input injection across all 64 channels, multi-hour auto-scan memory buffer testing, and anti-static ESD packaging before dispatch.
