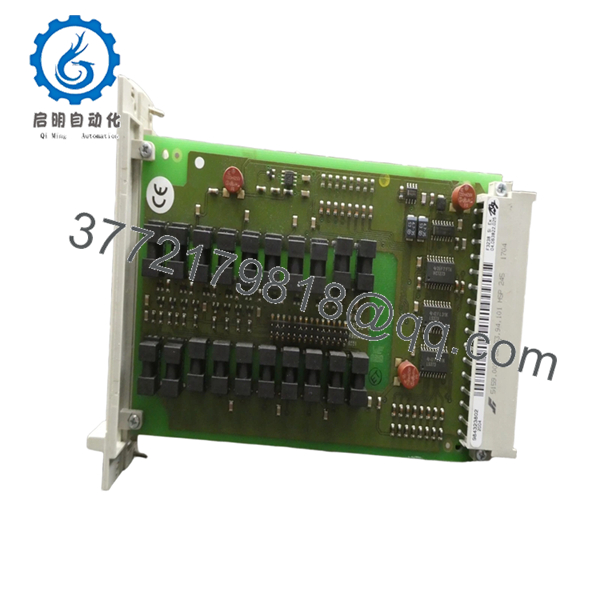

HIMA F3238 8 Channel Safety Input Module

  • Model: F3238
  • Brand: HIMA
  • Series: HIQuad Safety Systems
  • Core Function: Safety-related digital inputs
  • Product Type: Input Module
  • Key Specs: 8 channels, NAMUR proximity switches, line monitoring, SIL 3
  • Condition: New Original / New Surplus
Get a Quote
Categories: , , , , SKU: F3238 Brand:

Description

3. Key Technical Specifications

  • Model Number: F3238
  • Type: 8 Channel Safety-Related Input Module
  • Inputs: 8 channels for NAMUR proximity switches or dry contacts with resistor networks
  • Line Monitoring: Integrated for open/short circuit detection
  • Safety Integrity Level: SIL 3 per IEC 61508
  • Input Voltage: 24 VDC nominal (–15% / +20%)
  • Internal Supply: 5 VDC
  • Isolation: Galvanic isolation, suitable for (Ex)i applications
  • Operating Temperature: 0 °C to +60 °C
  • Mounting: Plug-in module for HIQuad base plates
  • Weight: Approximately 0.3–0.55 kg
  • Protection Features: ATEX certified variants available, conformal coating options

4. Product Introduction

The HIMA F3238 is an 8-channel safety-related input module for HIQuad systems. It connects NAMUR proximity switches and monitored contacts for use in safety instrumented functions such as emergency shutdown and burner management.

This module delivers high diagnostic coverage through line monitoring and supports SIL 3 applications. It remains a go-to spare part for plants running HIQuad hardware because of its reliability in classified and harsh environments.

F3238
F3238

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10–15 minutes) ⚠️ Safety First: Inform operations, force the safety system to a safe state, lock out/tag out power, and allow time for discharge. Tools Required: ESD strap, screwdriver, multimeter, HIMA configuration software, labels, camera. Data Backup: Photograph wiring, record channel assignments, and export current safety application data.

Stage 2: Removing the Old Module (5–10 minutes)

  1. Remove front cover if present.
  2. Label and disconnect field wiring from the terminals.
  3. Release the module from the base plate and withdraw it carefully.
  4. Inspect base plate connectors and terminal blocks. ⚠️ Note: Keep the old module accessible for comparison during commissioning.

Stage 3: Installing the New Module (10 minutes)

  1. Follow ESD procedures. Confirm the replacement is F3238.
  2. Align and insert the module into the correct slot until it locks securely.
  3. Reconnect field wiring exactly as documented, observing polarity for NAMUR sensors.
  4. Secure all connections with proper torque. Self-Checklist: [ ] Module fully seated and locked, [ ] Wiring polarity and labeling match, [ ] No exposed conductors.

Stage 4: Power-On & Testing (15–25 minutes) Pre-Power Check: Verify input voltages and check for wiring shorts. Power-On Steps:

  1. Restore power to the system.
  2. Observe module LEDs for normal operation and channel status.
  3. Use the engineering tool to verify module detection and diagnostics.
  4. Test each channel with simulated inputs and confirm line monitoring.
  5. Perform partial stroke or full safety function validation as per plant procedures.

⚠️ Troubleshooting Note: Line fault alarms typically indicate wiring issues or sensor problems. Channel failures may stem from incorrect addressing or base plate seating. Use HIMA diagnostic functions for root cause.

6. Frequently Asked Questions (FAQ)

Can this module be hot-swapped under power? In redundant HIQuad configurations, hot-swap is supported per HIMA guidelines. For non-redundant setups, a controlled shutdown is required to maintain safety integrity.

Is this model obsolete, and is it genuinely new? The F3238 continues as a standard input module for HIQuad systems. Stock is New Original or New Surplus with full traceability. We provide test reports and verification on request.

What is the direct replacement if this is out of stock? Later generation HIMA input modules may serve as replacements with adapter considerations. Always verify SIL rating, channel count, and firmware compatibility for your specific safety application.

Will swapping the module affect my safety application logic? No. The input module handles signal acquisition only. The safety logic resides in the processor. Re-validate the affected safety functions after installation.

Why is your price lower than the OEM factory list price? We offer tested surplus and original modules from authorized channels. This reduces cost while ensuring the hardware meets original HIMA specifications through incoming inspection and functional testing.
