HIMA F8621X Central Processor Expansion Card

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The HIMA F8621X (Part Number: 984862102) is a specialized coprocessor submodule engineered for high-performance HIMA H41q and H51q safety-instrumented systems (SIS). Operating alongside the main central module in the controller subrack, the F8621X executes heavy communication routines, safeethernet packet processing, and peer-to-peer data transfers without consuming primary logic scan execution time from the central processor.

Because the F8621X plays a central role in inter-rack and DCS communication, installing refurbished or unverified units poses significant operational liabilities. Degraded onboard SRAM, aging microprocessor clock crystals, or worn backplane contacts can cause diagnostic watchdog timeouts, loss of CPU synchronization, or spurious safety trips on active production units. Sourcing New Surplus F8621X modules guarantees original factory timing specifications and long-term operating reliability.

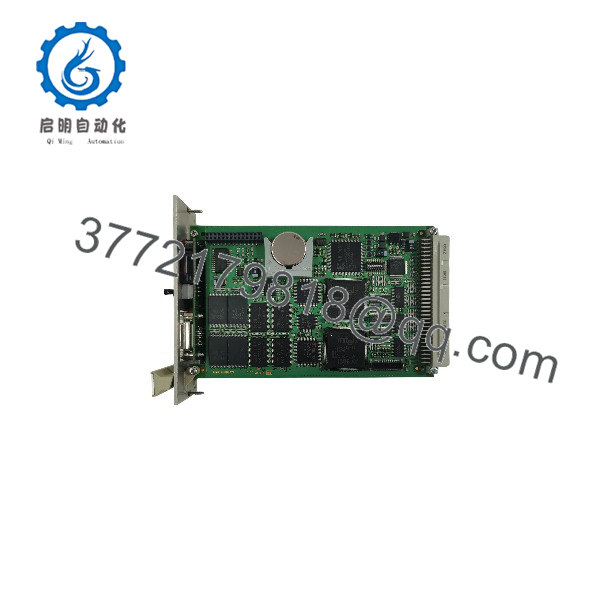

F8621X

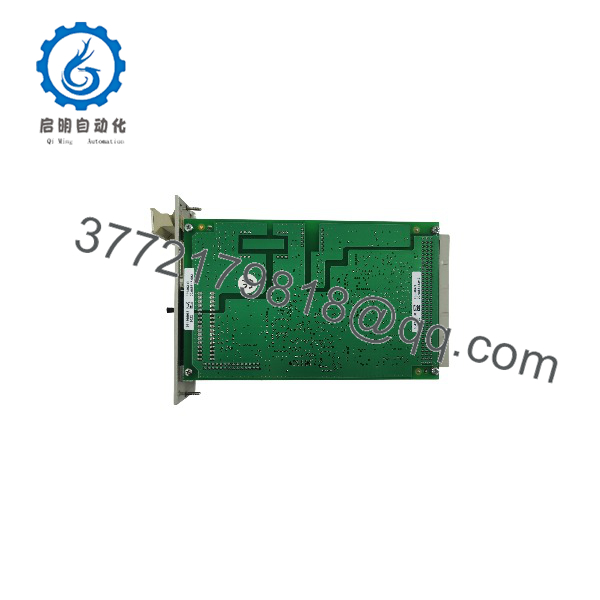

F8621X

Installation & Configuration Guide

1.Stage 1: System Backup & Isolation:Prerequisite & Safety.

Export a full online project backup from the ELOP II engineering station. Place target safety loops into controlled bypass per site procedures, then switch off primary power to the target subrack. Attach an ESD wrist strap before handling the card.

2.Stage 2: Removing the Existing Coprocessor:Card Extraction.

Unscrew the upper and lower panel-retaining screws on the existing F8621X module. Unlatch the ejector handles to disconnect the high-density backplane connector, then carefully pull the card out along its rack guide rails.

3.Stage 3: Installing the New F8621X:Physical Insertion.

Align the New Surplus (984862102) module with the designated subrack guide slots. Push the card in firmly until the backplane connector fully seats. Tighten the top and bottom retaining screws to ensure continuous chassis earth grounding.

4.Stage 4: Power-On & Redundancy Sync:Commissioning & Diagnostics.

Reapply power to the subrack. Observe front-panel status indicators to verify normal CPU synchronization (RUN LED solid green). Open ELOP II diagnostics to verify that communication buffers are active, coprocessor diagnostic check-routines pass, and no system fault counters increment.

Engineering & Software Notes

• Software Environment: Fully configured, compiled, and diagnosed using the HIMA ELOP II engineering suite.
• Firmware Version Alignment: In 1oo2D or 2oo3 redundant central rack configurations, the replacement coprocessor must carry firmware revisions compatible with the primary central processor (e.g., F8650X/F8652X).
• Backplane Pin Integrity: Inspect subrack backplane pins prior to seating the module; bent or tarnished pins can cause bus arbitration errors.

Frequently Asked Questions (FAQ)

What is the key difference between a main CPU (like the F8650X) and the coprocessor?

The main CPU executes the safety logic program (cause-and-effect matrix), whereas the coprocessor handles background networking, bus protocol execution, and data formatting. This separation ensures deterministic safety logic scan times.

Can the 984862102 be programmed using HIMA SILWorX?

No. The belongs to the legacy H41q/H51q hardware family and is configured exclusively through the ELOP II software system.

Is the card hot-swappable during live plant operation?

Hot-swappability depends on the subrack’s redundancy architecture. In dual-redundant coprocessor setups, a card can be replaced while the partner card maintains communication. However, site-specific safety guidelines must be reviewed before performing hot exchanges.

What quality assurance comes with New Surplus stock?

All New Surplus HIMA modules undergo ESD handling, physical backplane inspection, power-on diagnostic checks, and carry a full 1-year replacement warranty.
