Phone: +86 16626708626Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Model / Part Number | F8627X / 984862765 |
| System Compatibility | HIMA H41q, H51q Central Subracks |
| Safety Integrity Level | SIL 3 (IEC 61508), PL e / Cat 4 |
| Programming Environment | HIMA ELOP II Software Suite |
| Network Protocols | safeethernet, Ethernet TCP/IP, Modbus TCP/RTU |
| Interfaces | 10/100 Base-T (RJ45), Fieldbus (RS-485 / Serial) |
| Operating Voltage | 5 VDC (internally supplied via backplane) |
| Power Dissipation | ~ 3.5 W |
| Form Factor | Standard 19-inch Eurocard format (4 HP width) |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
Product Introduction & Supply Chain Strategy
The HIMA F8627X (Part Number: 984862765) is a high-performance communication interface module engineered specifically for HIMA H41q and H51q safety-instrumented systems (SIS). Operating within the central rack, the F8627X acts as the primary network bridge, linking safety controllers via HIMA’s certified safeethernet protocol while simultaneously streaming non-safety diagnostic data to higher-level Distributed Control Systems (DCS) and SCADA networks.
Maintaining a New Surplus F8627X module on-site is a vital risk-mitigation strategy for facilities running H41q/H51q architecture. Communication modules carry high Ethernet packet throughput and thermal loads; using refurbished cards with degraded network transformers, worn RJ45 jack contacts, or aged onboard memory can lead to packet drops, lost peer-to-peer safety interlocks, or unexpected safety processor trips. Sourcing factory-fresh New Surplus stock ensures uncompromised network integrity and continuous process availability.
Installation & Configuration Guide
1
Stage 1: System Backup & Isolation
Prerequisite & Safety
1.Stage 1: System Backup & Isolation:Prerequisite & Safety.
Export a full online project archive from the ELOP II engineering station. Place affected safety interlocks into controlled bypass per plant procedures. Wear a grounded ESD wrist strap before handling the replacement F8627X module.
2
Stage 2: Removing the Existing Module
Card Extraction
2.Stage 2: Removing the Existing Module:Card Extraction.
Disconnect Ethernet RJ45 cables and serial communication connectors from the front panel. Unscrew the top and bottom retaining screws, then unlatch the ejector handles to unseat the Eurocard backplane connector. Slide the module out along its guide rails.
3
Stage 3: Installing the 984862765
Physical Mounting
3.Stage 3: Installing the 984862765:Physical Mounting.
Align the New Surplus (984862765) module with the subrack guide slots. Slide the card in smoothly until the backplane connector fully seats into the subrack backplane assembly. Tighten the retaining screws and re-attach all network and serial cables.
4
Stage 4: Power-On & Network Verification
Commissioning & Diagnostics
4.Stage 4: Power-On & Network Verification:Commissioning & Diagnostics.
Reapply subrack power. Confirm front-panel LEDs display normal operating states (RUN solid green, LINK/ACT flashing green). Connect via ELOP II software to perform an online diagnostic check, verify safeethernet packet transmission, and confirm DCS communication handshakes.

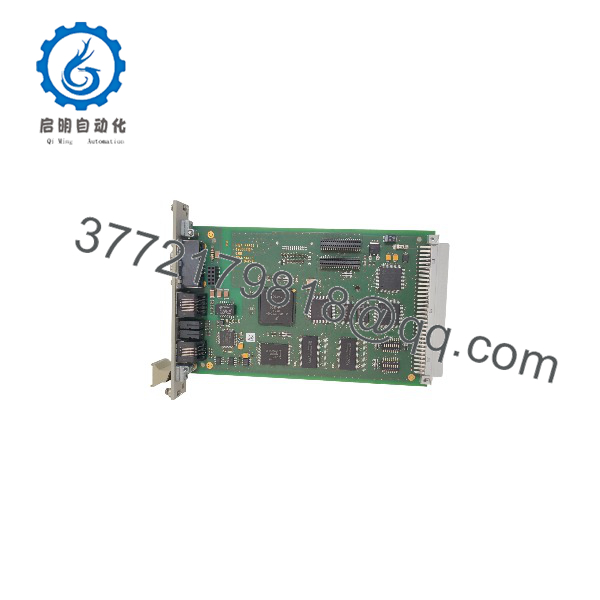

F8627X 984862765

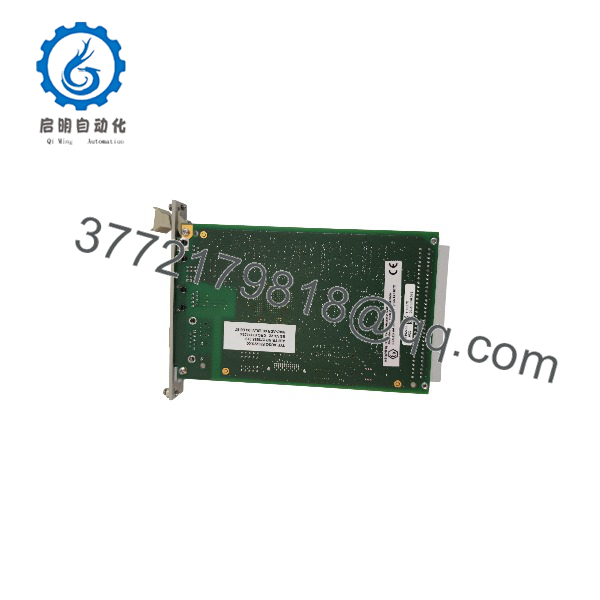

F8627X 984862765
Engineering & Network Notes
- Software Environment: Configured, programmed, and diagnosed exclusively through the HIMA ELOP II engineering suite.
- Network Node Addressing: Ensure the MAC address, IP settings, and safeethernet node numbers configured in ELOP II match the hardware assignment for seamless peer-to-peer reconnects.
- Redundancy Pair Match: In dual-redundant communication configurations, both modules must run identical firmware and hardware revisions to maintain uninterrupted automatic network failover.
Frequently Asked Questions (FAQ)
What is the main function of the HIMA 984862765 module?
The is an Ethernet communication submodule that enables safeethernet peer-to-peer safety communications between HIMA controllers and handles Modbus/TCP or Ethernet IP interfaces to third-party DCS and SCADA systems.
Can the be used with SILWorX software?
No. The is designed for the H41q/H51q platform and is configured exclusively within the ELOP II engineering suite. SILWorX is used for newer HIMatrix and HIMax platforms.
Is the module hot-swappable?
In redundant communication subrack architectures, an module can typically be hot-swapped while the partner card maintains network traffic. However, always review site-specific safety procedures and bypass requirements before live-swapping network cards.
What warranty covers this New Surplus 984862765 card?
All New Surplus HIMA modules undergo physical pin-integrity, port-voltage, and ESD safety checks, and are backed by a full 1-year replacement warranty.
