Key Technical Specifications
- Platform: Honeywell FSC (Fail Safe Control), TÜV-certified SIS/ESD system
- Function: Terminates field-side wiring before signal enters the FSC I/O carrier card
- System Voltage: 24 V DC (standard FSC rack supply voltage)
- Mounting: FSC rack/carrier slot, factory backplane connection
- Compatible System Generation: FSC hardware per Hardware Manual PM.MAN.8048 (Rev. 02, 10/97) and later revisions
- Environment: Industrial control room / marshalling cabinet, not rated for hazardous area mounting
- Sibling I/O Card Reference: Compatible carrier examples in this family include the 10201/2/1 fail-safe digital output card (24 Vdc, 0.55 A, 8 ch) — confirms the 24 V DC field convention used across the module family
- Electrical Terminal Ratings: ⚠️ Not independently verified — confirm exact terminal count, wire gauge range, and current rating against the OEM FSC Hardware Manual or nameplate before ordering as a like-for-like replacement
- Physical Dimensions/Weight: ⚠️ Not published in available distributor data — request from supplier prior to panel-space planning
Product Introduction
The Honeywell 10313/1/1 is a termination module built for the Honeywell FSC (Fail Safe Control) platform, Honeywell’s legacy TÜV-certified emergency shutdown and safety interlock system. It sits between field wiring and the FSC I/O carrier card, giving the rack a defined, serviceable termination point instead of running field conductors straight to the card edge.
Plants still running FSC-based ESD systems keep this module in inventory because Honeywell discontinued new production years ago, and lead times on OEM channels can run into weeks. A tested surplus unit gets a failed termination point back in service without waiting on a factory quote or forcing a controller-level upgrade.

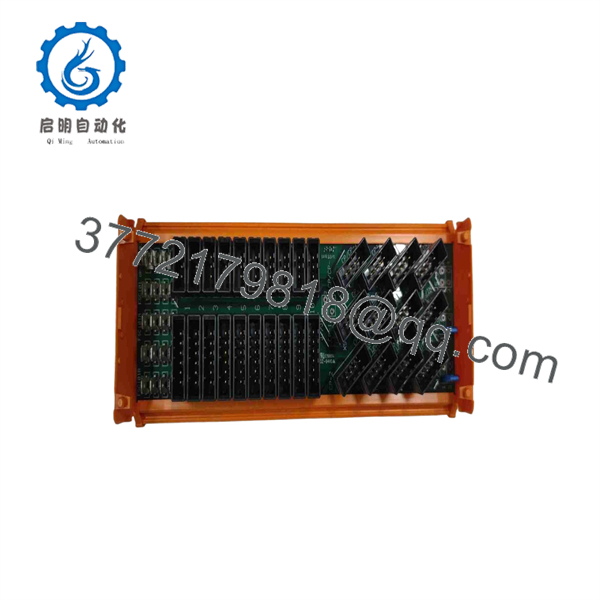

10313/1/1

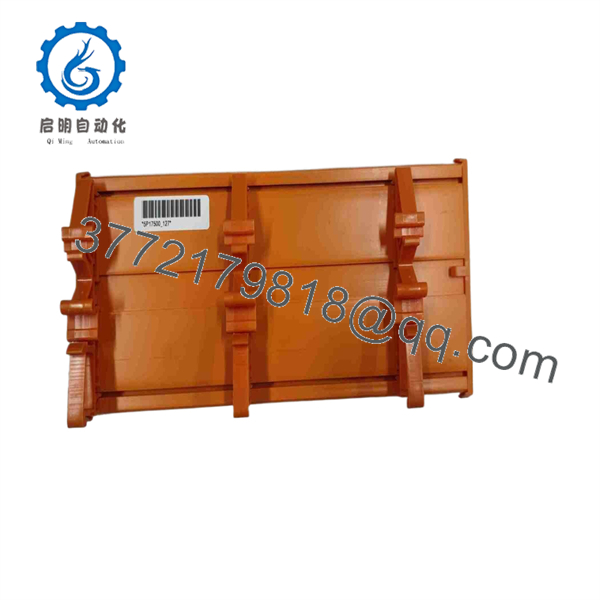

10313/1/1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Field signal reads open/floating at the I/O card | Loose or corroded termination point | ✅ High | Check torque on field terminal screws, inspect for corrosion | Re-seat wiring first; replace module if terminals are damaged |
| Intermittent signal dropout under vibration | Termination screw backed out over time | ✅ High | Wiggle test on each terminal with power off | Retorque per FSC manual spec; replace if terminal is stripped |
| I/O card shows fault but field wiring reads fine | I/O carrier card itself failed | ❌ Low | Swap card to a known-good slot for isolation testing | Fault is likely the card, not this termination module |
| No signal at all, multiple channels affected | Rack power supply or backplane fault | ❌ Low | Check 24 V DC rail at the backplane connector | Investigate power supply before replacing termination hardware |
| Physical damage — cracked housing, burnt terminal | Overcurrent event or mechanical impact | ✅ High | Visual inspection under good lighting | Replace the module; investigate root cause of overcurrent |
If you’re still not sure after these checks, contact technical support with terminal-block photos and the FSC diagnostic log excerpt — that combination resolves most ambiguous field-vs-card calls without a truck roll.
Frequently Asked Questions (FAQ)
Is the Honeywell 10313/1/1 still in production?
No. FSC hardware in this generation is discontinued from Honeywell’s active catalog. Everything available now comes from surplus inventory, pulled systems, or long-tail distributor stock. If your plant is still running FSC, budgeting for eventual migration to Safety Manager or a current-generation SIS is worth putting on the roadmap.
Can I hot-swap this termination module?
Don’t. Termination modules sit directly on the field wiring path into a safety I/O card — pulling or seating one under power risks a nuisance trip on a live safety loop, or worse, masking a real fault during the swap. De-energize the loop, follow your plant’s safety system work permit process, and replace with the controller in a known state.
Will swapping this module wipe my configuration?
No — the termination module itself carries no firmware or configuration data. It’s a passive wiring interface. Configuration lives on the I/O carrier card and the FSC controller, not the termination point. That said, always photo-document field wiring before you disturb it; that’s the actual risk in this kind of swap, not data loss.
Why is this cheaper than a factory-new unit — is it refurbished or used?
Because there is no factory-new option anymore. What’s available is tested used or refurbished stock pulled from decommissioned systems. Be upfront with your supplier about which one you’re buying — a tested-used unit with continuity and insulation checks passed is a very different risk profile than an as-is pull with no test report.
Is this a direct replacement for every FSC rack?
Model number match is the starting point, not the whole answer. FSC systems went through multiple hardware revisions across roughly two decades of deployment. Cross-check the revision on your existing module’s label against what you’re buying, and if you have access to the Hardware Manual for your installed base, confirm the termination pinout hasn’t changed between revisions before you commit.
What testing should I expect from a reputable surplus seller before I install this?
At minimum: visual inspection for corrosion or rework marks, continuity check across each terminal path, and insulation resistance testing. A seller who can’t tell you which meter they used or what the pass/fail threshold was probably didn’t actually test it — ask directly.
My system throws a fault right after I swap the module — is it defective?
Not necessarily. Check field wiring torque first — termination points are the most common source of a post-swap fault, not the module itself. If wiring checks out, verify the FSC diagnostic buffer for a specific fault code before assuming the replacement part is bad.
