Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell Process Solutions |
| Part number | FC-RPB2N12 |
| Product family | Honeywell Safety Manager / FSC FC Series |
| Product type | 12-slot redundant power bus distribution backplane module |
| Primary function | Provides shared redundant 24 VDC power bus and high-speed safety communication bus for FC-series CPU, I/O, power supply, and fan modules |
| Slot capacity | 12 standard FC-series module installation slots |
| Bus power distribution | Maximum total output 240 W when matched with FC-PSU-UNI2450U power supply |
| Communication bus rate | Safety-dedicated backplane bus at 8 Mbps transmission rate |
| Power bus isolation | Per-slot independent overcurrent fuse protection circuit |
| Mechanical load capacity | Maximum single-slot module weight 1.2 kg |
| Physical dimensions | Approximately 620 mm L × 110 mm W × 30 mm D |
| Net weight | Approximately 2.1 kg |
| Operating temperature | −20 to +70 °C (cabinet internal) |
| Storage temperature | −40 to +85 °C |
| Relative humidity | 5–95%, non-condensing |
| Backplane base frame | Cold-rolled steel stamping with anti-corrosion spraying |
| Bus circuit board | Thick copper-layer multi-layer FR4 PCB for high-current power transmission |
| Slot connectors | Phosphor copper alloy with thick gold plating for anti-oxidation contact |
| Overcurrent protection | Slow-blow industrial safety fuse per slot |
| Power input | Dual redundant 24 VDC power bus copper layer with dual power-supply parallel current-sharing access terminals |
| Communication bus | Independent high-speed safety communication bus signal traces separated from power bus to eliminate electromagnetic crosstalk |
| Mounting | Fixed horizontally inside Safety Manager standard cabinet rear wall with 4 M6 stainless steel fixing bolts |
| Torque specification | 1.5 N·m standard torque for power-supply DC output terminal connection to backplane power access copper bar |
| Replacement requirement | Match FC-RPB2N12, verify slot count, power rating, mounting arrangement, fuse compatibility, and system configuration |
Honeywell documentation and supplier data identify FC-RPB2N12 as a 12-slot redundant power bus distribution backplane for Safety Manager and FSC systems. It provides 24 VDC power distribution up to 240 W, an 8 Mbps safety communication bus, and per-slot overcurrent fuse protection. The backplane supports FC-series CPU, I/O, power supply, and cooling fan modules in a 12-slot SIS rack configuration.
Product Introduction
The Honeywell FC-RPB2N12 is a 12-slot redundant power and communication backplane module for Honeywell Safety Manager and FSC (Fail Safe Control) safety-instrumented systems. It serves as the mechanical and electrical backbone for a 12-slot SIS cabinet, distributing redundant 24 VDC power and high-speed safety communication to all installed FC-series modules.
The backplane integrates power distribution, bus signal transmission, and mechanical module support. Each slot has independent overcurrent fuse protection, so a single-slot short circuit does not affect power to other modules. The dual redundant 24 VDC power bus and separated communication bus traces ensure reliable operation in safety-critical applications.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Multiple modules show power fault or communication loss | Failed backplane power bus, blown slot fuses, poor power-supply connection, loose backplane mounting, damaged bus traces | ✅ High | Check 24 VDC input at the backplane power terminals. Inspect each slot fuse for continuity. Verify power-supply torque and connector retention. Measure 24 VDC at multiple slot connectors. | Restore power-supply connection and replace blown fuses first. Replace the backplane only after confirming input power and fuse integrity. |
| One slot shows no power or communication | Blown slot fuse, damaged slot connector, poor module seating, backplane trace fault, module fault | ⚠️ Medium | Check the specific slot fuse for continuity. Inspect the slot connector for damage or contamination. Reseat the module and verify contact. Measure 24 VDC at the slot connector. | Replace the blown fuse with the correct type. If the slot still fails, inspect the connector and backplane traces. |
| Intermittent communication or power faults | Loose module seating, vibration, dust accumulation, oxidized contacts, marginal power supply, thermal cycling | ⚠️ Medium | Inspect module seating and retention. Clean slot connectors with anhydrous alcohol. Monitor power-supply voltage and temperature. Check for vibration or thermal cycling effects. | Improve module retention and environmental conditions. Clean connectors proactively in dusty environments. |
| Backplane area is hot or shows physical damage | Overload, short circuit, prior electrical event, damaged bus traces, contaminated cabinet | ✅ High | Isolate power safely. Inspect the backplane, connectors, and bus traces for heat marks, discoloration, or damage. Measure supply voltages before re-energizing. | Correct the electrical fault before installing a replacement. Do not re-apply power to a damaged backplane. |
| New backplane does not restore system operation | Wrong model, incompatible slot count, incorrect wiring, module incompatibility, configuration issue | ✅ High | Verify the replacement is FC-RPB2N12 with 12 slots. Check wiring against the approved diagram. Confirm module compatibility with FC-series. | Restore correct wiring and configuration. Do not assume a new backplane will automatically fix a wiring or module fault. |
| Fuse blows repeatedly in one slot | Shorted module, wiring fault, overload, damaged slot connector, backplane trace fault | ⚠️ Medium | Remove the module and check for short circuits. Inspect wiring and load. Measure slot connector resistance. Check backplane traces for damage. | Identify and correct the short or overload before replacing the fuse. A new fuse will blow again if the fault remains. |
| Communication bus errors across multiple slots | Damaged communication traces, poor grounding, electromagnetic interference, backplane fault, module fault | ⚠️ Medium | Check communication bus continuity and grounding. Inspect for EMI sources near the backplane. Review module diagnostics for bus errors. | Improve grounding and reduce EMI sources. Replace the backplane if communication traces are damaged. |
| Module weight exceeds slot capacity | Overweight module installed, mechanical stress on connectors, damaged slot guides | ⚠️ Medium | Verify module weight against the 1.2 kg per-slot limit. Inspect slot guides and connectors for mechanical damage. | Use only approved FC-series modules within the weight limit. Replace damaged slot hardware. |
Field note: The most common FC-RPB2N12 issue is not the backplane itself but blown slot fuses, poor module seating, or power-supply connection issues. Before replacing the backplane, check each slot fuse, inspect connector seating, and verify 24 VDC input. I have seen hours wasted on a “bad backplane” when the problem was a single blown fuse or loose power terminal.
If you need technical support, provide photos of the FC- label, slot configuration, power-supply connection, measured voltages, fuse condition, module seating, and any related alarm text.

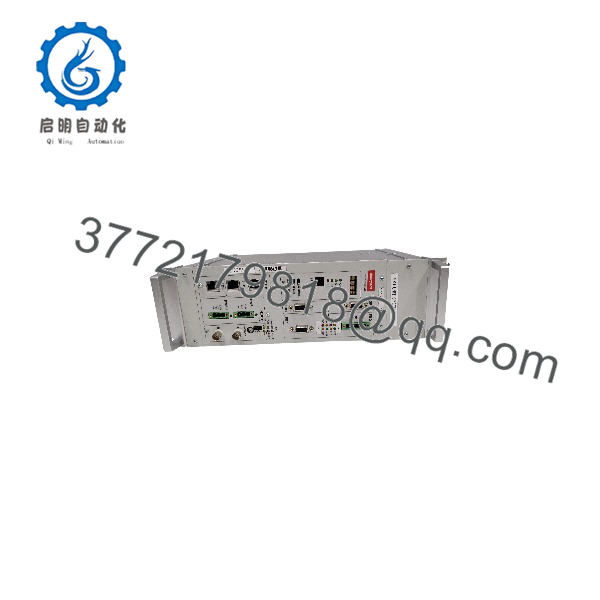

FC-RPB2N12
FC-RPB2N12
Frequently Asked Questions
What does the Honeywell FC- do?
The FC- is a 12-slot redundant power and communication backplane for Honeywell Safety Manager and FSC systems. It distributes 24 VDC power and 8 Mbps safety communication to all installed FC-series modules while providing per-slot overcurrent fuse protection.
How many slots does FC- have?
The backplane has 12 standard FC-series module slots. Each slot supports modules up to 1.2 kg and includes independent overcurrent fuse protection. The total power distribution capacity is 240 W when matched with an FC-PSU-UNI2450U power supply.
What power capacity does FC- support?
The backplane supports up to 240 W total power distribution when used with an FC-PSU-UNI2450U power supply. Each slot has independent fuse protection, so a single-slot fault does not affect power to other modules.
What communication bus does FC- use?
The backplane provides an 8 Mbps safety-dedicated communication bus with traces separated from the power bus to eliminate electromagnetic crosstalk. This ensures reliable communication between FC-series modules in safety-critical applications.
Can I use FC- with non-FC-series modules?
No. The FC- is designed specifically for Honeywell FC-series modules in Safety Manager and FSC systems. Do not attempt to install non-compatible modules, as they may damage the backplane or fail to operate correctly.
What is the maximum module weight per slot?
Each slot supports modules up to 1.2 kg. Exceeding this limit can cause mechanical stress on connectors and slot guides, potentially damaging the backplane or causing unreliable operation.
Can I replace a blown slot fuse with any fuse?
No. Use only the original overcurrent-rated fuse specified for the FC-. Using an incorrect fuse can eliminate the single-slot fault isolation protection function and potentially damage other modules or the backplane.
How do I clean the backplane slot connectors?
Clean the gold-plated slot connectors with anhydrous alcohol every 12 months or as needed in dusty environments. Use a lint-free swab and avoid bending or squeezing the backplane circuit board during cleaning.
Can FC- be mounted vertically?
The backplane is designed for horizontal mounting inside a Safety Manager standard cabinet rear wall using 4 M6 stainless steel fixing bolts. Vertical mounting is not recommended and may affect mechanical support and cooling.
Is FC- compatible with modern Safety Manager modules?
Honeywell describes FSC as a SIL 3 certified first-generation safety controller. While current Safety Manager platforms also use fault-tolerant architecture, this does not mean modern Safety Manager modules can simply be substituted for FC–based systems. Verify compatibility before mixing generations.
Is this FC- New Surplus or Refurbished?
The condition must be stated explicitly. New Original / New Surplus means unused inventory with verified labels, clean connectors, and documented storage inspection. Refurbished (tested) means a previously used backplane that has been inspected and functionally checked.
For a refurbished FC-, request actual-unit photos, label verification, slot connector inspection, fuse condition check, power bus continuity test, communication bus verification, mounting hardware inspection, and a written test report. Test videos and photos should be available upon request.
What should I verify before ordering FC-?
- Exact model label: FC-
- Slot count: 12 slots
- Power rating: 240 W with FC-PSU-UNI2450U
- Communication bus: 8 Mbps safety bus
- Mounting: horizontal cabinet rear wall
- Fuse compatibility: original overcurrent-rated fuses
- Module compatibility: FC-series modules only
- Existing diagnostics, alarms, and event logs
- Cabinet temperature and ventilation condition
- Required condition: New Original/New Surplus or Refurbished (tested)
Keep these checks in mind and you will avoid most FC- replacement rework.
