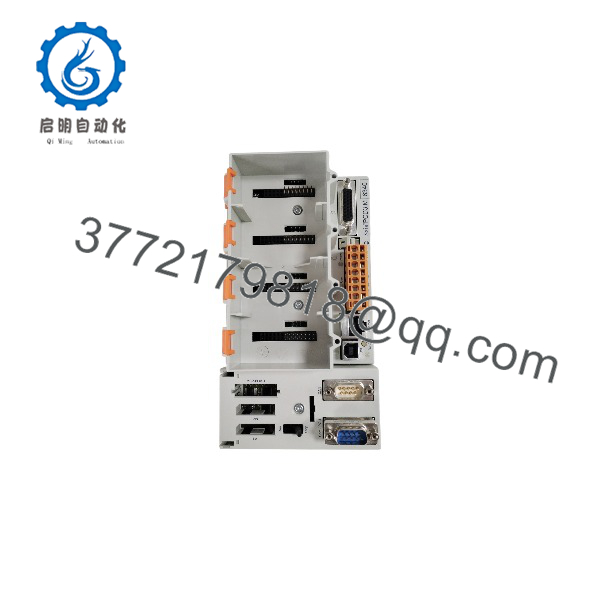

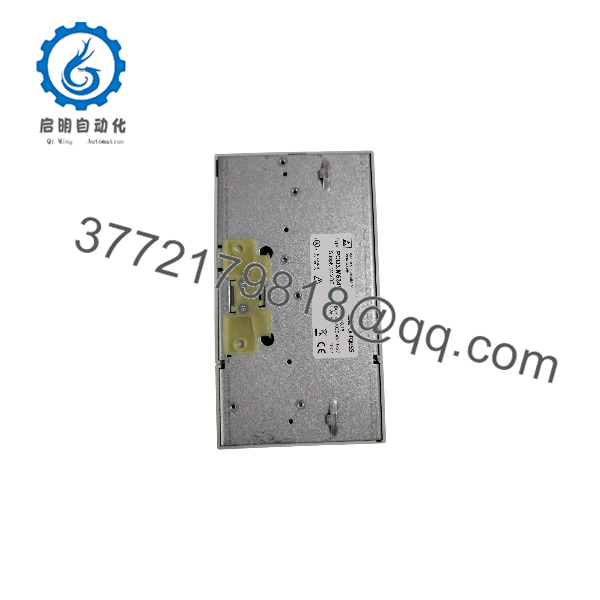

Honeywell PCD3.W525 4-Input / 2-Output Analog Module

  • Model: PCD3.W525
  • Brand: Honeywell (Saia Burgess Controls)
  • Series: PCD3 Series I/O
  • Core Function: Multi-purpose analog signal processing and conversion
  • Product Type: Combined Analog Input/Output Module
  • Key Specs: 4 Inputs (14-bit) | 2 Outputs (12-bit) | Galvanic Isolation
  • Condition: New Original / New Surplus (Never refurbished).
  • Inventory Status: Legacy process control automation asset requiring strategic surplus stocking to prevent controller downtime.
Get a Quote
Categories: , , , , SKU: PCD3.W525 Brand:

Description

Key Technical Specifications

Parameter Value
Analog Input Channels 4 channels, 14-bit resolution
Input Signal Types 0–10 V, 0–20 mA, 4–20 mA, Pt/Ni 1000, Pt 500
Analog Output Channels 2 channels, 12-bit resolution
Output Signal Types 0–10 V, 0–20 mA, 4–20 mA
Isolation Galvanic isolation between inputs/outputs and system bus
Power Supply External 24 VDC (isolated design)
Operating Temperature 0 to +55 °C
Terminals Pluggable 14-pin spring-loaded terminal block (Type E)
Mounting Type PCD3 Series backplate / rack slot
Weight ~0.10 kg



Product Introduction & Supply Chain Strategy

The Honeywell PCD3.W525 is a combined analog input and output module designed for the PCD3 automation platform. It processes multi-purpose analog loops with integrated on-board microcontrollers, decoupling the main controller from heavy scaling tasks.

Maintaining this module as a certified New Surplus spare prevents unplanned process shutdowns caused by legacy hardware faults. Sourcing genuine OEM units eliminates the high risks associated with second-hand refurbished hardware, protecting Total Cost of Ownership (TCO) and plant reliability.

PCD3.W525

PCD3.W525

PCD3.W525

PCD3.W525

Installation & Configuration Guide

1.Pre-Installation (Prep & Safety):Prerequisite.

Isolate power to the PCD3 controller base rack and apply formal lock-out/tag-out (LOTO) protocols. Wear an ESD wrist strap connected to the cabinet ground. Verify DIP switch settings for input scaling on the replacement module against legacy records.

Verification: Confirm zero voltage across base terminal connections using a digital multimeter.

2.Removal:Mechanical Extraction.

Unplug the 14-pin spring-loaded terminal block carefully from the front of the legacy module. Release the top and bottom housing locking clips and pull the module straight out of the PCD3 rack slot.

Verification: Inspect the backplane connector slots for dust, debris, or bent alignment pins.

3.Installation (Clone & Seat):Hardware Setup.

Match the onboard DIP switch configurations for the input signal ranges on the new Honeywell PCD3.W525 module to your exact application layout. Slide the module straight into the designated slot until the locking clips latch securely. Re-seat the 14-pin terminal block.

Verification: Perform a gentle pull test on the terminal block to confirm stable seating and secure contact.

4.Power-On & Testing:Commissioning.

Restore power to the controller rack. Verify module health indicators and check configuration parameters via the programming software environment (PG5 / FBoxes).

Verification: Confirm that analog input and output loops report stable process telemetry without calibration drift or bus communication errors.



Firmware/Software Versions & Upgrade Notes

  • Programming Baseline: Ensure your programming environment (Saia PG5 Controls Suite) utilizes the correct FBoxes or driver blocks matching the PCD3.W525 hardware architecture.
  • Compatibility Warnings: Do not swap combined analog modules with standard digital I/O cards or mismatched series variants, as pin mapping and internal microcontroller register allocations differ completely.
  • Configuration Retention: Input channel configurations rely on physical DIP switch settings on the module housing; always verify switch positions before inserting the hardware into a live rack.



Frequently Asked Questions (FAQ)

  • Why is this Honeywell PCD3.W525 module classified as New Surplus rather than standard factory direct?

    This unit is an authentic, original OEM-manufactured product procured from verified surplus channels after plant inventory rationalizations. It has never been installed, wired, or subjected to industrial operational wear.

  • How can I be certain this module is not refurbished or repaired?

    We enforce a strict zero-tolerance policy against second-hand, repaired, or rebuilt parts. Each unit features pristine terminal blocks, unblemished housing, and factory-fresh internal electronic components.

  • What are the hidden risks of utilizing refurbished analog I/O modules?

    Refurbished analog modules frequently suffer from degraded analog-to-digital converters, drifted calibration references, and aged filter capacitors. These flaws lead to severe measurement inaccuracies, erratic control loops, and unexpected process interruptions.

  • Does the PCD3.W525 module require an external power supply?

    Yes, the module is designed with an externally supplied, galvanically isolated power configuration that protects system architecture integrity while maintaining clean analog conversions.

  • What warranty terms apply to this New Surplus module?

    This product is backed by a comprehensive 1-year replacement warranty, delivering original OEM performance assurance and complete operational security for your facility.
