- Key Technical Specifications
| Parameter | Specification |
| Part Number | T8461 |
| System Compatibility | ICS Triplex Trusted System (T8300 Main/Expander Chassis) |
| Channel Count | 40 TMR Digital Output Channels (5 power groups of 8) |
| Operating Voltage | 18 V DC to 58 V DC (Nominal 24V / 48V DC) |
| Output Current Rating | 0.75 A continuous per channel (6 A max per 8-channel group) |
| Minimum On-State Load | 25 mA |
| Line Monitoring | Integrated open-circuit and short-circuit field wiring diagnostics |
| Fault Isolation | 2500 V impulse withstand optical / galvanic isolation |
| SOE Resolution | 1 ms Sequence of Events event tagging |
| Operating Temperature | -5°C to +60°C (23°F to 140°F) |
| Dimensions / Weight | 266 mm x 31 mm x 303 mm; 1.3 kg (2.87 lbs) |
- Product Introduction
The ICS Triplex T8461 (Rockwell Automation) is a high-reliability, 40-channel Triple Modular Redundant (TMR) digital output module engineered for safety-critical industrial applications up to IEC 61508 SIL 3 compliance. It drives field-actuated devices such as solenoid valves, relays, trip coils, and alarm annunciators across emergency shutdown (ESD), fire & gas (F&G), and burner management systems (BMS).
Utilizing 2-out-of-3 internal hardware voting across three isolated signal processing slices, the T8461 guarantees fault containment with zero single-point failure modes. Every output channel incorporates active line monitoring to continuously test for open-circuit wiring and shorted field loads without disturbing active plant operations.

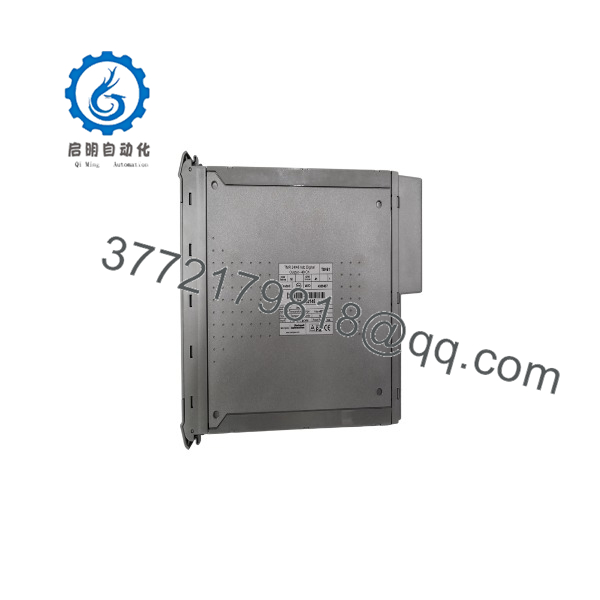

T8461

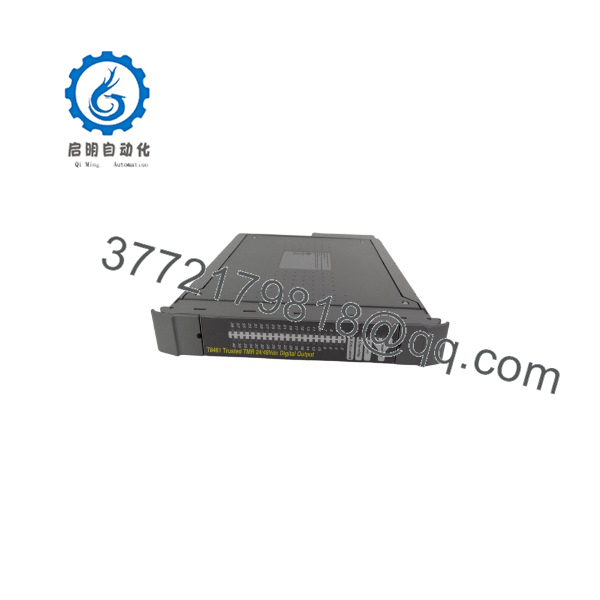

T8461
- Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
| Front panel channel LED flashing AMBER | Field line fault detected (open circuit or field wiring short) | ✅ High | Measure load resistance across field terminals; verify load > 25 mA minimum | Inspect field wiring and terminal assemblies. Ensure load current is within 25 mA to 750 mA range. |
| Group Power LED OFF | Loss of 24V/48V field power to one of the 5 group power feeds | ✅ High | Check DC supply voltage at the field termination assembly (FTA) power terminals | Verify external field power supply and inline fuses on the field termination assembly. |
| Active slice “HEALTHY” LED RED | Internal slice fault or voter channel mismatch on one TMR leg | ✅ High | Check slot status in Trusted Workbench software diagnostics | Hot-swap the module using companion slot or SmartSlot online replacement sequence. |
| Output fails to turn ON despite control command | Output latch tripped due to short-circuit fault | ✅ High | Reset channel fault status in software after clearing field short | Clear physical short circuit in field wiring and issue a fault reset command in software. |
- Frequently Asked Questions (FAQ)
Q: Does the T8461 support hot-swapping in an active safety system?
A: Yes. The T8461 supports full online hot-replacement using Companion Slot or SmartSlot configurations, allowing seamless replacement without interrupting active process safety loops.
Q: What is the main purpose of the line monitoring feature on the T8461?
A: Line monitoring continuously checks field wiring for open-circuit breaks or short circuits on every channel in both ON and OFF states, alerting operators to field wiring degradation before a trip event is demanded.
Q: How is the field wiring terminated?
A: The module interfaces with field devices via multi-core cables connecting to a dedicated Field Termination Assembly (FTA) mounted in the cabinet rear.
Q: Can I mix 24V DC and 48V DC field voltages on the same card?
A: Yes. The 40 channels are divided into 5 isolated power groups of 8 channels each, allowing different groups to run on separate 24V DC or 48V DC power feeds if isolated by group.
Q: How are surplus or refurbished ICS Triplex modules verified prior to shipment?
A: Each unit undergoes a strict 5-step SOP quality inspection: edge connectors are cleaned, the card is installed into an active Trusted chassis, 2-out-of-3 voting logic and line monitoring functions are exercised under simulated load across all 40 channels, a 24-hour thermal burn-in is completed, and ESD anti-static packaging is applied.
