3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Type | Non-arcing standard field terminal |
| Compatible Systems | MTL 8000 / PAC8000 / SafetyNet I/O |
| Connection Type | Screw-clamp terminals |
| Conductor Size | 0.14 – 2.5 mm² (approx. 26–14 AWG) |
| Rated Voltage | Up to 250 V AC |
| Max Current per Channel | Approx. 3 A (typical for series) |
| Hazardous Area Rating | Zone 2 / Class I Division 2 (non-arcing) |
| Mounting | Snaps onto carrier; I/O module mounts on top |
| Mechanical Keying | Yes – prevents incorrect module fit |
| Tagging | Tag strip provided |
| Operating Temperature | –40 °C to +70 °C (typical system rating) |
4. Product Introduction
The MTL 8610-FT-NA is the standard non-arcing field terminal used with MTL 8000 / PAC8000 series I/O modules. It provides the direct field-wiring interface between plant cables and the I/O module while meeting non-arcing requirements for Zone 2 and Class I Division 2 locations.
The terminal snaps onto the system carrier. The corresponding I/O module then mounts on top of it. Screw-clamp connections accept conductors up to 2.5 mm². Mechanical keying prevents installation of an incompatible module, and a tagging strip is included for channel identification. This version is the non-fused, non-arcing standard terminal for general-purpose field wiring in hazardous-area applications that do not require fusing or special transmitter connections.

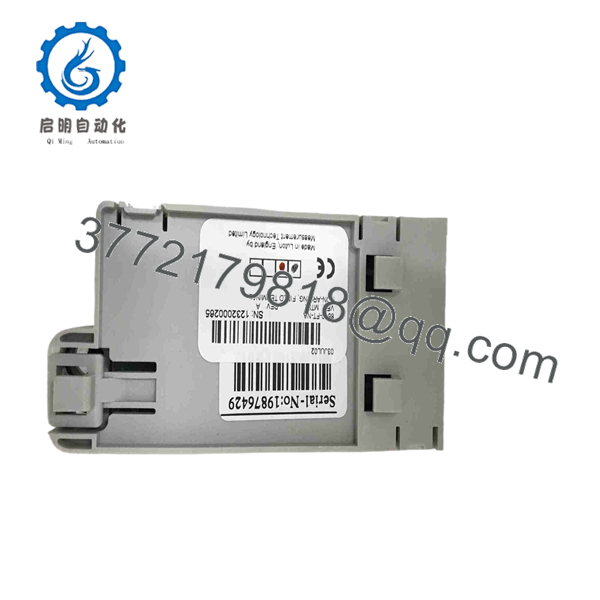

8610-FT-NA

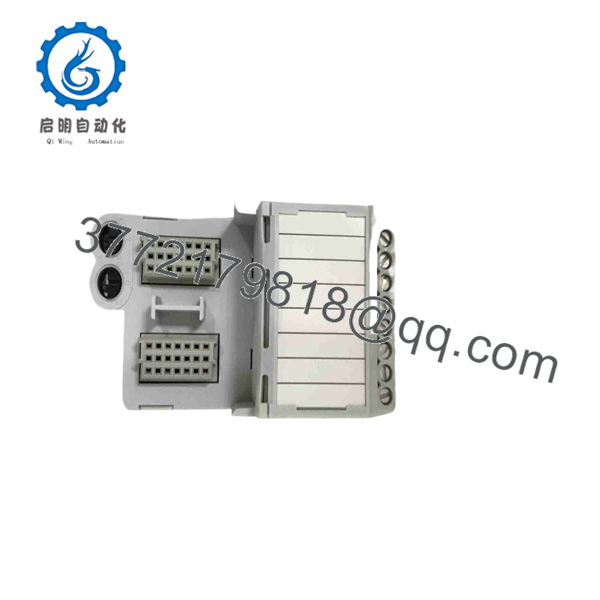

8610-FT-NA
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No signal from field device | Loose or incorrect wiring | ✅ High | Verify wire seating and continuity at screw terminals | Re-terminate and torque correctly |
| Module will not seat | Wrong terminal type or keying mismatch | ✅ High | Confirm 8610-FT-NA is the correct terminal for the module | Use only the keyed terminal specified for the I/O module |
| Intermittent connection | Undersized or poorly stripped wire | ✅ Medium | Check conductor size and strip length | Use correct wire gauge and proper strip length |
| Hazardous-area inspection fail | Incorrect terminal type installed | ✅ High | Verify part number is 8610-FT-NA (non-arcing) | Replace with correct non-arcing terminal |
| High contact resistance | Corroded or over-tightened terminals | ✅ Medium | Inspect and clean contact surfaces | Replace terminal if damaged |
| Carrier alarm or missing I/O | Terminal not fully snapped onto carrier | ✅ High | Confirm positive mechanical engagement | Re-seat terminal firmly on carrier |
If issues persist after these checks, photograph the terminal, carrier, and module keying, and contact technical support with the exact I/O module part number in use.
6. Frequently Asked Questions (FAQ)
Q: What does the “NA” in 8610-FT-NA stand for?
A: Non-Arcing. It is the standard non-arcing field terminal intended for Zone 2 / Class I Division 2 field wiring applications.
Q: Is this terminal fused?
A: No. The 8610-FT-NA is the non-fused version. Fused versions exist under different part numbers (e.g., 8611-FT-FU).
Q: Can I use the 8610-FT-NA with any MTL 8000 / PAC8000 I/O module?
A: No. Mechanical keying and system documentation dictate which field terminal matches each I/O module. Always verify compatibility with the specific module part number.
Q: What wire size does it accept?
A: Conductors from approximately 0.14 mm² to 2.5 mm² (roughly 26–14 AWG). Follow the exact range stated on the product or system datasheet.
Q: Does it include a tagging strip?
A: Yes. A tagging strip is provided for channel identification.
Q: Is this suitable for Zone 0 / Division 1?
A: No. The 8610-FT-NA is rated for non-arcing use in Zone 2 / Division 2. Intrinsically safe applications require different terminals (typically 862x-FT-IS series).
Q: How is it mounted?
A: The terminal snaps directly onto the system carrier. The I/O module then mounts on top of the terminal.
