Key Technical Specifications
- Parameter: Model Number: 98609-004
- Parameter: Common Revisions: Rev.3, Rev.4; match the installed revision before purchase
- Parameter: Manufacturer: Phontech
- Parameter: Product Type: Analog trunk board / intercom line interface PCB
- Parameter: Intended System: Phontech marine intercom, talk-back, and internal vessel communications systems
- Parameter: Primary Function: Audio signal routing and analog subscriber-line interface within an intercom exchange
- Parameter: Board Architecture: Multi-channel audio switching and line-interface circuitry
- Parameter: I/O Connection: High-density terminal blocks and edge connectors for subscriber or trunk-line circuits
- Parameter: Mounting: Internal slot-mounted board in a compatible Phontech exchange rack or enclosure
- Parameter: Environmental Use: Protected marine cabinet installation
- Parameter: Claimed Ambient Range: −15 to +55 °C; verify against the exact board revision and system documentation
- Parameter: Board Protection: Conformal-coated PCB construction is commonly associated with this application; confirm actual board condition and coating before installation
- Parameter: Estimated Weight: Approximately 0.4 to 0.9 kg; estimate only, not an OEM shipping specification
- Parameter: Configuration Dependency: Compatibility depends on the exchange architecture, installed hardware revision, and system firmware
- Parameter: Service Status: Legacy marine communications hardware; limited surplus and tested used inventory is typical
The 98609-004 is identified in available listings as a Phontech analog trunk board and marine intercom line card. The source material does not provide OEM-verified channel count, nominal supply voltage, exact terminal pinout, frequency response, or a complete revision interchangeability matrix. Verify the removed board’s label, revision, exchange-rack model, and wiring documentation before ordering.
Product Introduction
The Phontech 98609-004 is an analog trunk board used inside compatible Phontech marine intercom and talk-back exchange systems. The card manages audio signal routing between the exchange and connected subscriber stations, supporting onboard communications at bridge stations, engine-control rooms, machinery spaces, accommodation areas, and deck locations.
This is a replacement board for a specific legacy exchange architecture, not a universal audio interface. A direct swap may restore dead station lines, distorted audio, relay switching faults, or intermittent trunk communications when the rack, wiring, power supply, and handset station have been ruled out. Match the full 98609-004 number and installed revision before committing to a replacement.

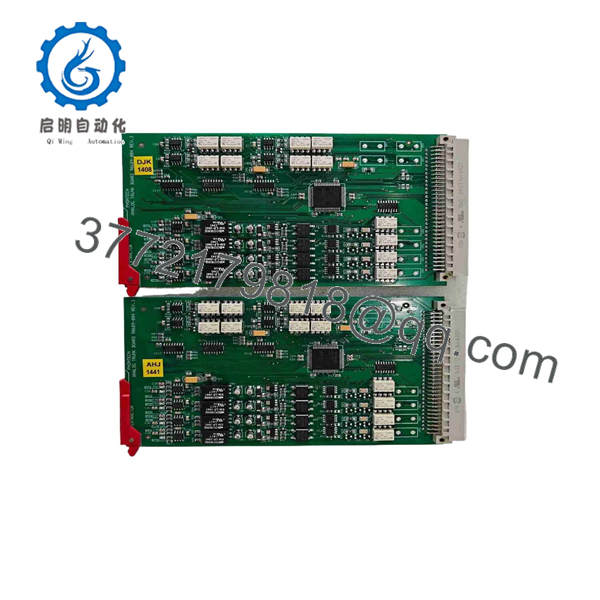

98609-004

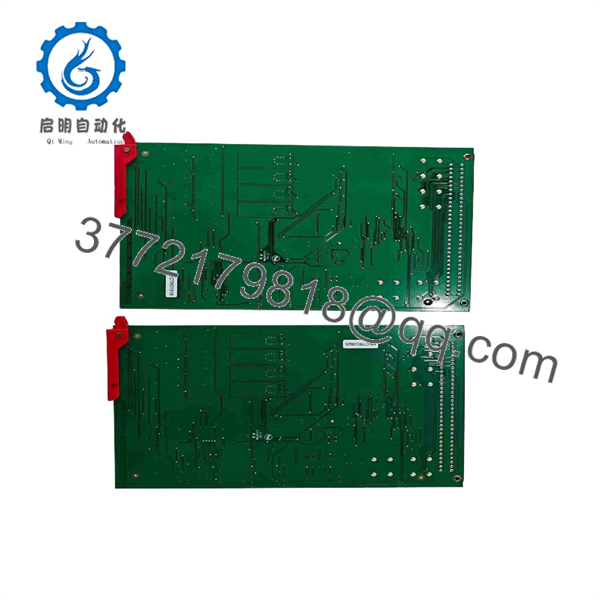

98609-004
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| One intercom station is completely dead | Failed handset, damaged field cable, loose terminal, failed analog line channel | ✅ Medium | Test the station with a known-good handset if applicable. Inspect and retorque the associated board terminal. Measure cable continuity end-to-end with the system isolated. | Eliminate the handset and field cable first. Replace the board only if the fault follows the board channel or remains with verified wiring. |
| Several stations on one trunk have no audio | Failed trunk interface circuit, board not seated, exchange supply issue, common field-wiring fault | ✅ High | Check whether other cards and trunks remain operational. Power down under the vessel procedure, inspect the edge connector, and reseat the board once. | If the fault stays on the same board position with known-good supply and wiring, the 98609-004 is a likely replacement candidate. |
| Audio is weak, distorted, or noisy | Corroded terminal, poor shield termination, damaged cable insulation, aging board component, faulty station microphone | ✅ Medium | Compare audio quality at both ends of the line. Inspect cable shields and drain-wire termination at the designated cabinet ground point. Check terminal screws for corrosion or looseness. | Correct cabling, shielding, and terminal faults first. Do not replace the board before comparing it with a known-good station and cable path. |
| Loud hum appears after cable work | Shield ground error, power-cable coupling, ground loop, cable screen connected at the wrong end | ❌ Low | Inspect the shielded-pair termination against the vessel wiring drawings. Confirm whether the shield must terminate at one designated cabinet end. | Correct the shield arrangement. Do not bond both ends unless the approved installation drawing explicitly requires it. |
| Intercom audio drops out when the vessel vibrates | Loose board, cracked solder joint, worn edge connector, damaged cable termination | ✅ High | While following safe maintenance practice, inspect board latches, edge-finger condition, terminal blocks, and connector seating. Compare fault occurrence with machinery vibration. | Reseat and secure the board. Replace it if the problem remains with good connectors and the fault is isolated to this card. |
| Card fails immediately after insertion | Hot-plug transient, wrong board revision, incorrect rack slot, power-supply issue, ESD damage | ✅ High | Remove power from the exchange. Confirm the slot position, card label, revision, and supply condition before attempting another insertion. | Do not hot-swap unless the OEM manual specifically permits it. Verify compatibility before energizing the replacement card. |
| All intercom lines are unavailable | Exchange main power supply, controller fault, common backplane fault, amplifier fault | ❌ Low | Check exchange PSU indicators, supply voltage at the rack, controller alarms, and other line-board status. | Do not replace a single 98609-004 board for a system-wide outage until common exchange faults are cleared. |
| New board restores audio but the wrong stations respond | Terminal wiring moved, trunk assignment mismatch, configuration or rack-slot error | ✅ Medium | Photograph and label every field conductor before removal. Compare the old and new board terminal positions against the wiring diagram. | Correct terminal assignments and confirm the correct rack position. Do not move wiring based only on terminal appearance. |
❗ Do not hot-plug this board. Remove exchange power through the approved vessel maintenance procedure before inserting or extracting the 98609-004. Live insertion can produce transients at the edge connector and damage audio-interface or switching components. The available technical guidance specifically warns against servicing this board with the exchange energized.
❗ Photograph every terminal before removal. On older marine intercom systems, terminal labels may be faded, undocumented changes may exist, and field conductors can look identical. Take clear photos of the front label, board revision, rack slot, edge connector, terminal block, cable shields, and earth connections before touching anything.
❗ Treat shielding as part of the signal circuit. Noise in engine rooms and machinery spaces often comes from shield termination errors, not a bad line card. Use the vessel’s wiring drawings. Do not connect shields at random or assume both-end grounding is correct.
❗ Keep spare boards dry and ESD-protected. Salt air and condensation create slow, ugly failures: corrosion at edge fingers, terminal oxidation, and leakage paths across contaminated circuitry. Keep the replacement sealed in a moisture-barrier ESD bag until installation.
If the fault remains unclear, send technical support photos of the board label, revision, rack slot, terminal wiring, station symptoms, exchange power indicators, and a short audio recording of the affected channel if available. Keep these checks in mind and you will save yourself 90% of typical rework time.
Frequently Asked Questions (FAQ)
Is the Phontech 98609-004 an analog trunk board or an intercom line board?
Both descriptions are used for this part. Listings identify the 98609-004 as a Phontech analog trunk board and as an intercom line board for marine talk-back and internal communication systems. In practical terms, it provides analog audio-line interface and routing functions inside a compatible exchange. Confirm the precise role from the installed system drawings and the board label.
Are Rev.3 and Rev.4 boards interchangeable?
Do not assume they are. Rev.3 and Rev.4 references exist in the market, but no OEM interchangeability document was available in the reviewed sources. A later revision can use different component values, terminal functions, firmware dependencies, or exchange compatibility. Match the original revision whenever possible. If only another revision is available, request front-and-back photos and verify interchangeability against Phontech documentation before ordering.
Will replacing the 98609-004 require reprogramming the intercom system?
Usually, a direct form-fit line-board replacement does not require reprogramming because the card mainly performs hardware-level audio routing. But that is not a blanket guarantee. The exchange architecture and firmware revision still matter. Back up any accessible configuration, record the old board position, and perform a functional call test at every affected station after installation.
Can I replace the 98609-004 while the vessel communication system is live?
No, not as a default practice. The available product guidance warns that inserting or removing the board while the exchange is energized can create electrical transients and damage connector pins or internal components. Notify bridge and engine-room personnel, establish an approved communications backup, isolate the exchange circuit, and then replace the card under the vessel’s safety procedure.
What normally causes static or low audio volume on one station?
Start with the external path: handset, microphone, speaker, terminal torque, cable continuity, cable insulation, and shield grounding. Low volume or static can also come from an aging relay or line-interface component on the board, but external cable and termination faults are more common. Compare the affected station with a known-good station on another line before replacing the card.
Is the 98609-004 a direct replacement for all Phontech exchange systems?
No. The part is tied to particular Phontech exchange architectures and may depend on the rack type, board slot, hardware revision, and system firmware. A card that physically fits is not automatically electrically or functionally compatible. Verify the old board part number, revision, exchange model, connector layout, and wiring assignment.
Is this part obsolete, and should I hold a spare?
Treat the 98609-004 as legacy marine communications hardware with limited replacement availability. If it supports a vessel’s bridge-to-engine-room, machinery-space, emergency, or operational talk-back system, holding a tested spare is sensible. Store it in an ESD-safe moisture-barrier bag, document its revision, and keep current photos of the installed wiring and rack location with the spare.
Why can New Surplus or tested used stock cost less than a factory-supplied replacement?
Surplus stock may come from canceled vessel projects, unused shipyard inventory, warehouse liquidation, or equipment removed during a retrofit. Tested used stock may cost less because it has already been installed, even if it passes functional testing. Ask for actual photos, revision confirmation, corrosion inspection results, terminal and edge-connector condition, test method, warranty terms, and packing details. For marine electronics, condition disclosure matters more than a vague statement that the board is “in good condition.”
