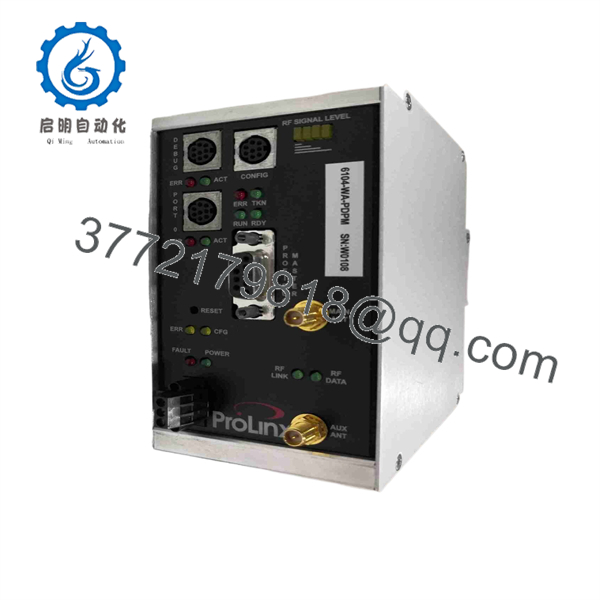

The ProSoft 6104-WA-PDPM is a rugged industrial gateway that combines a PROFIBUS DP Master interface with a high-performance industrial wireless transceiver, allowing remote PROFIBUS DP Slave devices to communicate seamlessly without physical cabling.
| Parameter | Value |
|---|---|
| Part Number | 6104-WA-PDPM |
| Manufacturer | ProSoft Technology |
| Series Architecture | ProLinx 6000 Series Industrial Wireless |
| PROFIBUS Interface | DB9 Female (PROFIBUS DP Master, up to 12 Mbps) |
| Wireless Protocol | 802.11a/b/g Wi-Fi (2.4 GHz / 5 GHz bands) |
| Antenna Connections | Dual RP-SMA coax connectors (Main & Auxiliary) |
| Operating Voltage | 24 VDC (18 to 36 VDC) |
| Current Consumption | Max 500 mA at 24 VDC |
| Operating Temperature | -20°C to +60°C |
| Mounting | Standard 35mm DIN-rail mount |
4. Product Introduction & Supply Chain Strategy
The ProSoft 6104-WA-PDPM ProLinx module bridges field-level PROFIBUS DP networks with wireless Ethernet backbones. Acting as a PROFIBUS DP Master on its local serial bus, it exchanges field data wirelessly across rotating machinery, mobile equipment, or geographically separated process units where installing field cable runs is impractical or expensive.
Maintaining an uninstalled 6104-WA-PDPM module in inventory as New Surplus is a high-value strategy for avoiding extended operational downtime. Wireless gateways in harsh industrial environments face RF exposure, power fluctuations, and thermal stress. Procuring a genuine New Surplus unit ensures untouched transceiver circuitry, clean DB9 communication ports, and immediate drop-in replacement without requiring network architecture modifications.

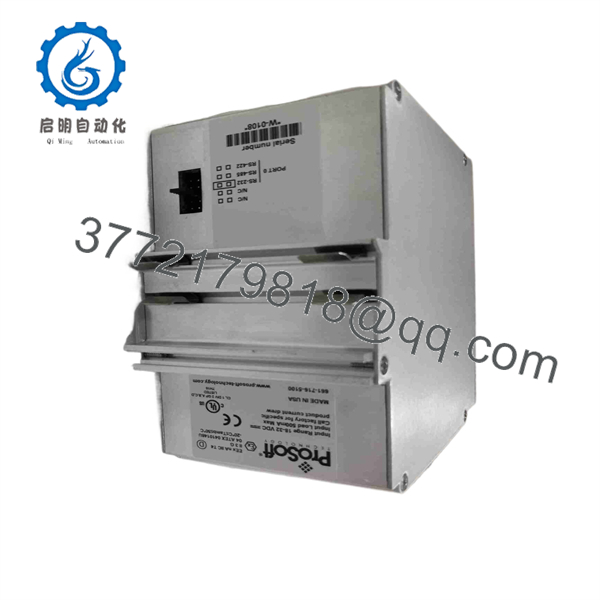

6104-WA-PDPM
6104-WA-PDPM
5. Installation & Configuration Guide
Critical Field Safety Warning
Deploying or removing wireless field gateways while active control loops are online can trigger loss-of-communication faults on connected PROFIBUS slaves, potentially invoking emergency shutdown trips on downstream process equipment.
1
Process Inhibit & Power Isolation
Prerequisite
1.Process Inhibit & Power Isolation:Prerequisite.
Set associated PLC/DCS control channels to manual or inhibit mode. Turn off the 24 VDC power feed supplying the 6104-WA-PDPM gateway.
2
DIN-Rail Attachment & Antenna Setup
Hardware Mounting
2.DIN-Rail Attachment & Antenna Setup:Hardware Mounting.
Snap the 6104-WA-PDPM onto the 35mm DIN rail. Connect high-gain industrial antennas or low-loss coax cables to the dual RP-SMA antenna ports, ensuring connectors are hand-tightened to avoid thread stripping.
3
PROFIBUS & Power Connections
Cable Landing
3.PROFIBUS & Power Connections:Cable Landing.
Attach the DB9 PROFIBUS network cable to the front DP Master port. Land 24 VDC power and chassis ground leads onto the removable power terminal block.
4
Configuration Transfer & Network Sync
Commissioning
4.Configuration Transfer & Network Sync:Commissioning.
Power on the module. Load the module configuration file via ProSoft Configuration Builder (PCB) over the RS-232 configuration port or wireless link. Verify RF Link and PROFIBUS Status LEDs show active communication before removing loop inhibits.
6. Firmware/Software Versions & Upgrade Notes
- Configuration Tool: Configured via ProSoft Configuration Builder (PCB) software.
- Master Functionality: Acts as a PROFIBUS DP V0 Master, managing up to 125 slave addresses depending on configuration parameters.
- RF Alignment: Ensure security settings (WPA2-PSK/WEP) and channel frequencies match the destination wireless access point or bridge pair.
7. Frequently Asked Questions (FAQ)
Q: Is this ProSoft 6104-WA-PDPM module genuinely new? A: Yes, this item is a Brand New Surplus unit. It has never been installed or powered in a live industrial environment and is stored in static-shielding protective packaging.
Q: Why choose New Surplus over refurbished wireless gateways? A: Industrial wireless modules experience RF component degradation and thermal wear over time. Refurbished units may suffer from reduced wireless transmit range or intermittent signal drops. New Surplus guarantees factory-fresh RF performance and long-term stability.
Q: Does this module require an external PROFIBUS master controller? A: No. The 6104-WA-PDPM functions as an active PROFIBUS DP Master, polling connected slave devices on its local segment and forwarding data across the wireless link.
Q: What warranty accompanies this module? A: Every ProSoft 6104-WA-PDPM unit includes a certified quality inspection report and is covered by a full 1-year replacement warranty from the date of shipment.
