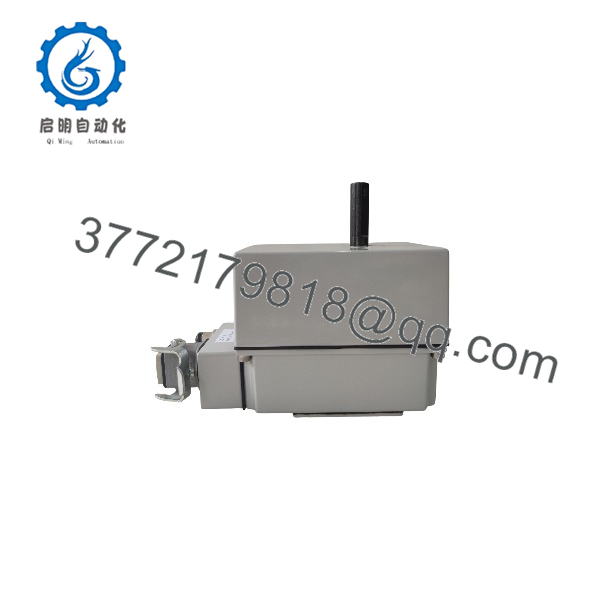

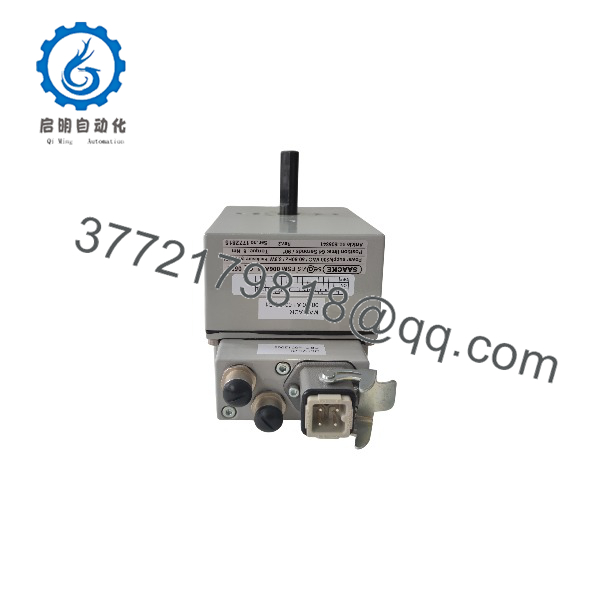

SAACKE FSM 006A64 Burner Servo Actuator

Description

Key Technical Specifications

The SAACKE FSM 006A64 is a burner servo actuator used in SAACKE combustion systems for positioning mechanical burner-control elements such as dampers or valves. Published spare-part specifications identify the unit with 230 VAC supply, 6 Nm torque, and 64 seconds per 90° positioning time.

Product Introduction

The SAACKE FSM 006A64 is a servo actuator designed for industrial burner systems where accurate mechanical positioning is required for combustion control. It functions as the final control element between the SAACKE burner management system and physical components such as air dampers or fuel-control mechanisms.

The actuator’s torque and positioning speed are critical parameters in burner tuning. Replacing it with a different FSM variant without checking mechanical and control compatibility can affect combustion response and commissioning results. The documented FSM 006A64 specification lists 6 Nm torque and 64 seconds per 90° travel.

FSM 006A64

FSM 006A64

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — Approximately 20 Minutes

⚠️ Safety First:
The FSM 006A64 is installed in combustion equipment. Before replacement, shut down the burner system using the approved operating procedure. Isolate electrical power, secure fuel sources where required, and follow site lockout/tagout requirements.

Tools Required:

• ESD wrist strap
• Digital multimeter
• Insulated screwdriver set
• Torque tools
• Mechanical alignment tools
• Wire labels
• Smartphone for photos
• SAACKE burner documentation

Data Backup:

1. Record the complete actuator identification:
   • FSM 006A64
   • Serial number
   • Hardware revision
2. Photograph:
   • Mounting position
   • Mechanical coupling
   • Shaft orientation
   • Terminal wiring
   • Feedback/control connections
3. Record:
   • Burner model
   • Existing actuator travel settings
   • Mechanical linkage position
4. Verify the replacement actuator matches:
   • Torque rating
   • Travel range
   • Electrical supply

⚠️ Important:
Do not select a replacement actuator only by voltage. In burner systems, torque and travel speed are part of the control-loop design.

Stage 2: Removing the Old Actuator — Approximately 15 Minutes

1. Disable burner operation and isolate power.
2. Confirm zero voltage at actuator terminals.
3. Mark the mechanical position before removal.
4. Label all electrical connections.
5. Disconnect:
   • Power wiring
   • Control wiring
   • Feedback wiring (if equipped)
6. Remove mechanical coupling hardware.
7. Remove mounting screws.
8. Carefully remove the actuator.
9. Inspect:
   • Damper linkage
   • Valve mechanism
   • Coupling wear
   • Mechanical binding

⚠️ Keep the original actuator until commissioning is complete.
The old unit provides the best reference for shaft position, mounting alignment, and wiring.

Stage 3: Installing the New FSM 006A64 — Approximately 20 Minutes

1. Verify the replacement marking matches SAACKE FSM 006A64.
2. Confirm the actuator specifications:
   • 230 VAC supply
   • 6 Nm torque
   • 64 s / 90° positioning time
3. Mount the actuator in the original orientation.
4. Align the output shaft with the burner mechanism.
5. Install coupling hardware.
6. Reconnect electrical wiring.
7. Verify terminal assignments.
8. Check mechanical movement manually before power-up.

Configuration Clone Checklist:

• Model number verified
• Supply voltage verified
• Mechanical travel verified
• Coupling alignment checked
• Wiring confirmed
• Feedback/control signals verified
• Mounting hardware secured

Stage 4: Power-On & Testing — Approximately 30 Minutes

1. Perform a final mechanical and electrical inspection.
2. Restore control power.
3. Observe actuator startup behavior.
4. Verify initial position reference.
5. Command manual movement from the burner control system.
6. Check:
   • Direction of rotation
   • Travel range
   • Position feedback
   • Mechanical stops
   • Abnormal noise
7. Perform burner sequence testing under approved conditions.
8. Verify stable operation through the combustion control cycle.

⚠️ Troubleshooting Note:

• Actuator moves incorrectly: Check mechanical coupling direction and control polarity.
• Actuator stalls: Inspect damper/valve mechanism for mechanical resistance.
• Position error alarms: Verify feedback wiring and actuator configuration.
• Slow response: Confirm the replacement actuator matches the original positioning time.

Frequently Asked Questions (FAQ)

Can the SAACKE FSM 006A64 be hot-swapped?

No. The FSM 006A64 is part of a burner control system. Remove electrical power before replacement and ensure the combustion system is in a safe condition.

What is the main function of FSM 006A64?

The FSM 006A64 provides controlled mechanical positioning for burner components, typically regulating combustion-air dampers or fuel-control elements within SAACKE burner systems.

What are the key specifications of FSM 006A64?

The published specification identifies:

• Supply voltage: 230 VAC
• Torque: 6 Nm
• Positioning time: 64 seconds per 90°
• Frequency: 50 Hz

Can FSM 006A64 replace another SAACKE FSM actuator?

Not automatically. Different FSM models may have different torque ratings and travel characteristics. For example, FSM variants with different torque and positioning values are not guaranteed drop-in replacements.

Will replacing FSM 006A64 erase burner parameters?

The actuator itself does not normally store the burner application program. However, commissioning may require verification of actuator calibration, position limits, and burner-control parameters.

Why is a surplus FSM 006A64 available if it is not a current production item?

Industrial combustion spare parts often remain available through unused maintenance inventory, plant upgrades, and equipment replacement projects. Availability depends on supplier stock and condition.

What should I verify before purchasing an FSM 006A64?

Request:

• Actual actuator photos
• Nameplate image
• Serial number
• Mechanical coupling details
• Condition:
  • New Original / New Surplus
  • Refurbished (tested)
• Functional test record
• Warranty terms

For burner applications, verify compatibility with the complete SAACKE combustion system before installation.
